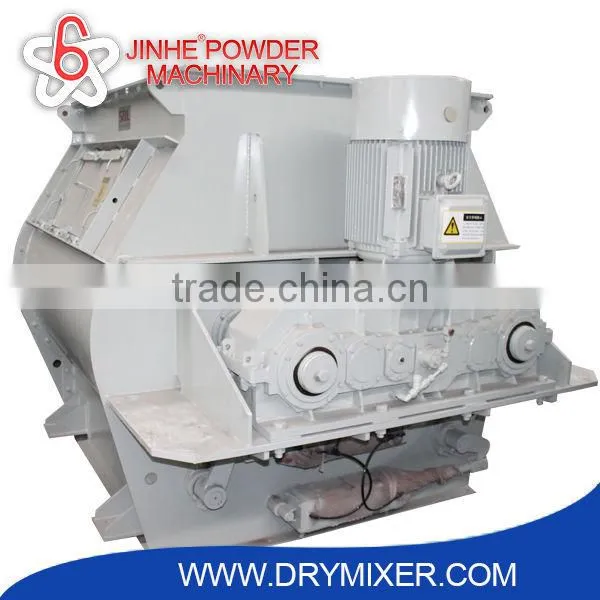

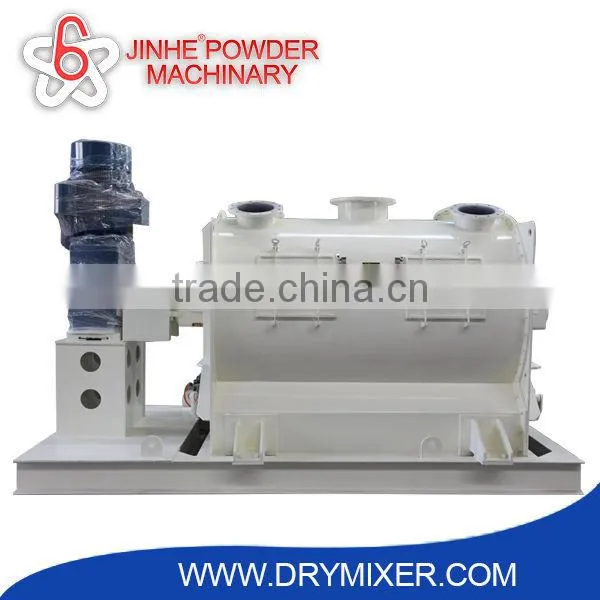

JINHE manufacture power audio mixer

wood bpx

Specifications

1.High Mixing Effect
2.Rapid Mixing Time
3.Large Loading Ratio
4.PLC touch screen
5.siemens motor









power audio mixer  Introduction

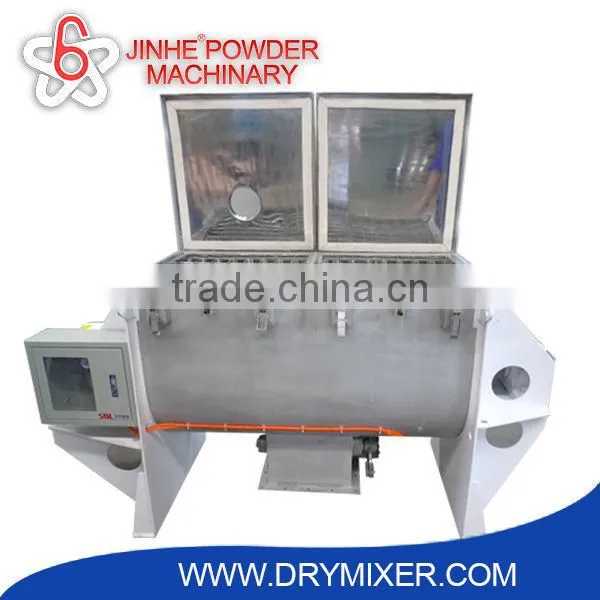

ac blender motor consists of U shape shell ,double ribbons and drive unit.



The exterior ribbon transfers raw material from the two ends to center while the interior ribbon moves

the material in opposite in the form of counter-current movement.



Ribbons can be changed into paddles,and chopper is optional for different materials.



The top cover can be concave for pressure application ,or full open way to allow for easy cleaning.

 The advantages of    power audio mixer



1.High Mixing Effect



2.Rapid Mixing Time



3.Large Loading Ratio



4.Wide Application



5.Wear-Resistence and Low Maintenence



power audio mixer  Introduction:

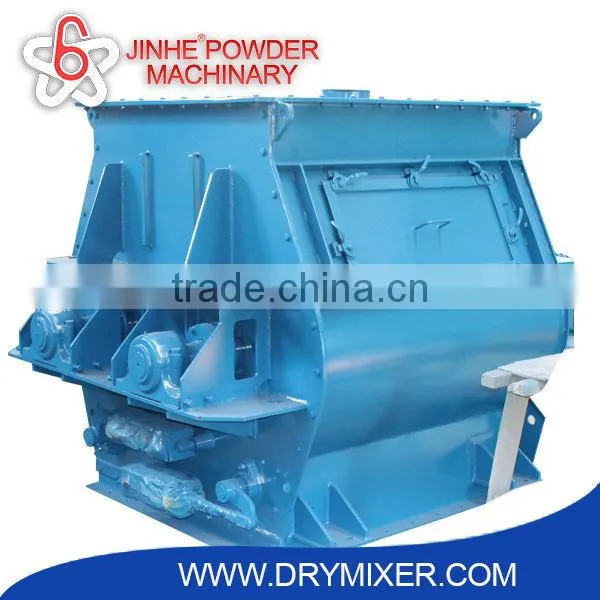

This mixing equipment is also named "dual-shaft paddle mixer", which is applicable for the blending of materials in form of powder, pellet and flake, and has been widely used in fields concerning chemical industries, coatings, resin, pesticide, detergent, pigment, food, ceramics, plast additives and dry powder.

Characteristics of the agravic mixer:
1.Quick and complete discharging; manual, electrical and pneumatic discharging methods are available.
2.Suitable for solid-solid blending, solid-liquid mixing and can be used as reaction equipment. It can be designed and manufactured according to customers' requirements.
3. High blending speed, high precision and low energy consumption.
4. Good homogeneity for materials with large property variations as in specific gravity and particle size.

Model Project	Total Volume (M³)	Loads coefficient	Electrical machiney power (KW)	Size(mm)× Max-diameter ×High	Equipment weight (kg)
JHW-0.15	0.15	0.4-0.8	3	1190×740×770	330
JHW-0.3	0.3	0.4-0.8	4	2030×630×980	720
JHW-0.5	0.5	0.4-0.8	7.5	2320×730×1130	980
JHW-1	1	0.4-0.8	11	2800×920×1320	1700
JHW-1.5	1.5	0.4-0.8	11	3180×1020×1550	1800
JHW-2	2	0.4-0.8	15	3310×1120×1640	2100
JHW-3	3	0.4-0.8	18.5	3750×1290×1820	3000
JHW-4	4	0.4-0.8	22	4220×1400×1990	3980
JHW-5	5	0.4-0.8	22	4220×1500×2100	4620
JHW-6	6	0.4-0.8	30	4700×1610×2260	6180
JHW-8	8	0.4-0.8	37	4420×2150×2470	8200
JHW-10	10	0.4-0.8	45	5520×2960×2720	8920
JHW-12	12	0.4-0.8	45	5720×3010×2840	9520
JHW-15	15	0.4-0.8	55	5840×3540×2940	9950

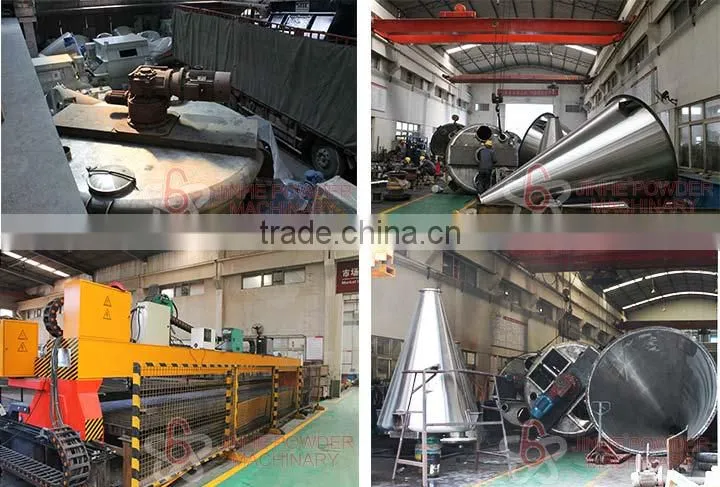

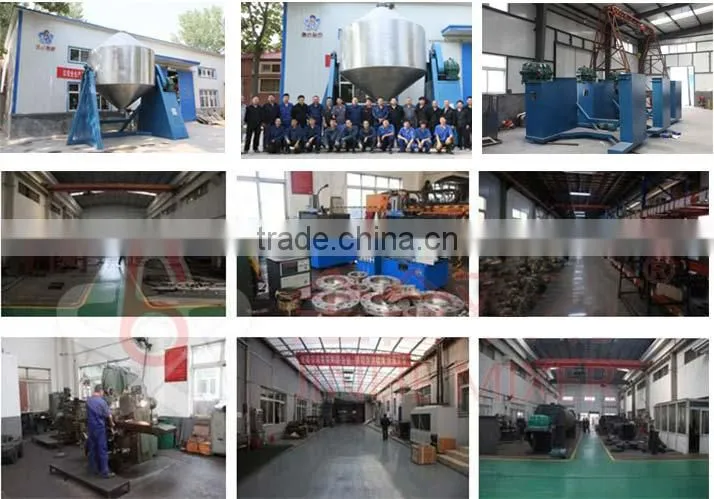

 Manufacturing Process





Applications











An experienced and well mannered sales and marketing team is committed to bringing you 100% customer satisfaction. In order to succeed in the rapidly changing podwer mixer market, our company has instituted a development policy that emphasizes "Serving the customer, improving products, providing best service,sureness and steadiness, devotion and dedication".Please feel free to contact us at any time.







 Zhengzhou Jin Tai Metal Materials Co., Ltd. cleaves to the spirits of" Creat in China" in the field, devoting research to innovating in order to improve the efficiency and save more energy. At present we have the independent intellectual rights and national patent technology of our products .



Certificates



 Exihibition



1.Some remarkable questions in the process of use.

Because the Dry Powder Mixer Machine is electrical equipment, so the operator should pay attention to electricity safety.



2.How to maintain power audio mixer?
1.)Ensure that the Dry Powder Mixer Machine and the surrounding environment clean.
2.Regular checks of the various systems, such as tainted ash, gas leakage, oil spills and leakage phenomenon timely processing.

...
