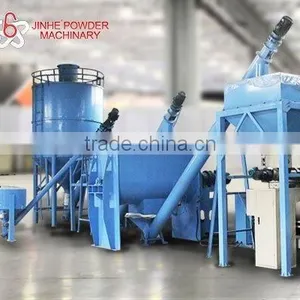

JHH-2000 Mini Production Line

Zhengzhou Jinhe Machinery Manufacture Co., Ltd. Gold Verified Supplier
5Yrs
JHH-2000 Mini Production Line thumbnail-1
JHH-2000 Mini Production Line photo-1
US$ 2,000 - 275,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
JINHE
Model Number:
JHH
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name JINHE
Model Number JHH
Voltage 380V 415V 220V
Certification ISO 9001
After-sales Service Provided Engineers available to service machinery overseas
Application Other, Powder
Condition New

 1000-30000L JHH fertilizer powder mixing/packing production line







JHH-2000 mini production lineJHH-2000 mini production lineJHH-2000 mini production lineJHH-2000 mini production line

JHH-2000 mini production lineJHH-2000 mini production lineJHH-2000 mini production line

JHH-2000 mini production lineJHH-2000 mini production line

mini production line  Products Background



 Zhengzhou JinTai Metal materials co., LTD is devoted in improving mixing technical, mixing efficiency over 10 years. Keeping up with the need of the enterprise development, under the guides of new mixing principle—double movement superposed mixing method, with the leader Mr. Liu Honglin, open mind, develop thought, bold innovation, finally, we create JINHE double movement mixer successfully at 2007.



Products Profile

  JHL-2000  mini production line is designed to WSF (water soluble fertilizer) Processing Line

 A water soluble fertilizer is a compound that dissolves easily in water and provides nutrients for plants. This type of fertilizer may then be absorbed quickly and completely by the plant root system. It is typically used entirely by the plant and washes out of the soil without leaving behind an excess of unused nutrients or toxins.

All chemically-created fertilizers contain varying amounts of nitrogen, phosphorus, and potassium, among other ingredients. These three nutrients, also known as macronutrients, are usually listed on the label as numbers in this precise order. Therefore, a label that reads '10-8-5' would contain a high amount of nitrogen, a medium amount of phosphorus, and a relatively small amount of potassium. These numbers are rarely the exact formula that is contained in the fertilizer, as manufacturers prefer to protect their recipe secrets from competitors. A water soluble fertilizer also may contain magnesium, calcium, molybdenum, sulfur, and copper.


Every garden contains a different type of soil with a unique mixture of clay, loam, and sand. These soil mixtures typically benefit the most from receiving chemical additives that specifically provide for any pre-existing deficiencies. A clay-based soil with high acidity may require larger amounts of nitrogen than a soil with a balanced mix of sand and loam. Using a water soluble fertilizer allows gardeners to choose, with a great amount of precision, the amount of each chemical they wish to add to their plants.


mini production line  include:

JINHE Brand JHH huge powder mixer,  ribbon mixer, plough mixer, nauta mixer.

JINHE Brand Auto feeding and transfer system.

JINHE Brand Automatic batching system

JINHE Brand automatic powder packing machine,

JINHE stainless steel enclosed bucked elevator,

JINHE Brand vibrating screen classicifier,

JINHE Brand screw feeding system,

JINHE Brand DCS control system.



JHL-2000 has its unique advantage that we design 8 huge impending spiral fixed blades so as to improve mixing efficiency. When the barrel turning, dry powder turning over, the spiral blades could make dry powders shunt around. Therefore, this new principle greatly promotes mixing efficiency.

The weiting packing machine usesing advanced microcomputer control processing technology with variable frequency speed regulation and simple operation to improve the speed and precision grately.Spiral mandatary next makings,with high efficiency,stable work,convenient maintenance.

mini production line  Application:fertilizer,chemical,food,pharmacy industrial.

1. JHRB powder mixer features



Model Project
Total Volume (M³)
Loads coefficient
Electrical machiney power (KW)
Size(mm)× Max-diameter ×High
Equipment weight (kg)
JHRB-0.15
0.15
0.4-0.8
3
1190×740×770
330
JHRB-0.3
0.3
0.4-0.8
4
2030×630×980
720
JHRB-0.5
0.5
0.4-0.8
7.5
2320×730×1130
980
JHRB-1
1
0.4-0.8
11
2800×920×1320
1700
JHRB-1.5
1.5
0.4-0.8
11
3180×1020×1550
1800
JHRB-2
2
0.4-0.8
15
3310×1120×1640
2100
JHRB-3
3
0.4-0.8
18.5
3750×1290×1820
3000
JHRB-4
4
0.4-0.8
22
4220×1400×1990
3980
JHRB-5
5
0.4-0.8
22
4220×1500×2100
4620
JHRB-6
6
0.4-0.8
30
4700×1610×2260
6180
JHRB-8
8
0.4-0.8
37
4420×2150×2470
8200
JHRB-10
10
0.4-0.8
45
5520×2960×2720
8920
JHRB-12
12
0.4-0.8
45
5720×3010×2840
9520
JHRB-15
15
0.4-0.8
55
5840×3540×2940
9950





2. JHH weighting packing machine features



ModelJHH-10JHH-50
Weighting range10-25KG25-50KG
Precision±0.2-0.5 ±0.2-0.5
Speed700-500bags/h500-450bags/h
Motor power380V   2.25KW380V   2.25KW
Weight450KG450KG
Size770×1400×1825(mm)770×1400×1825(mm)

 JHH-2000 mini production line

Working Video in Youtube

/watch?v=-M8MTMonMzk

...
