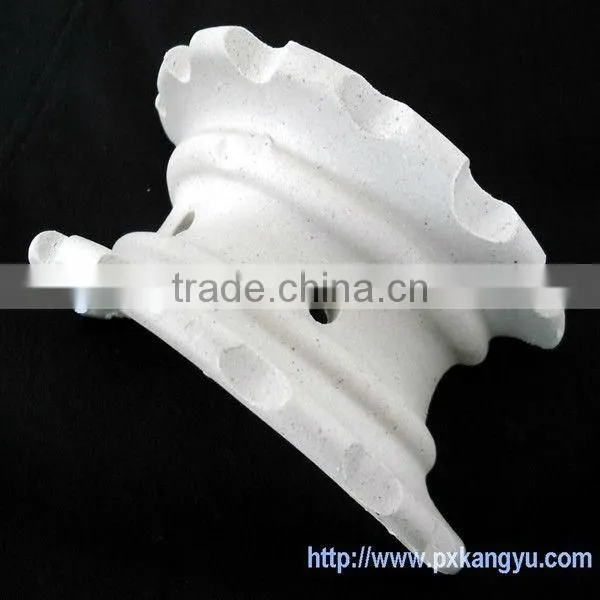

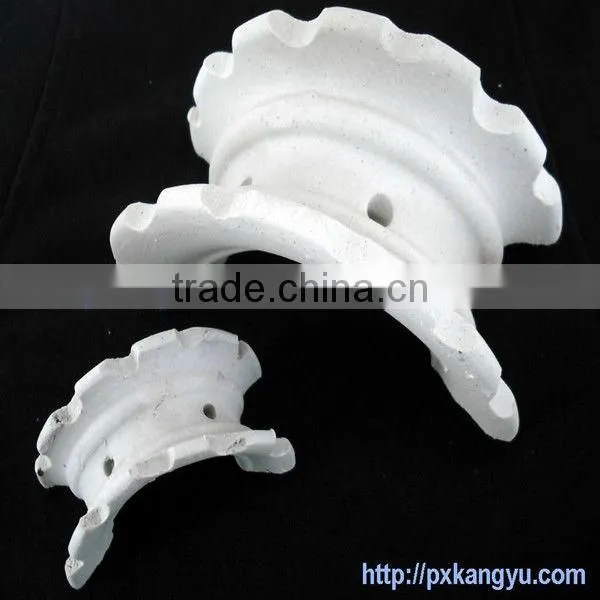

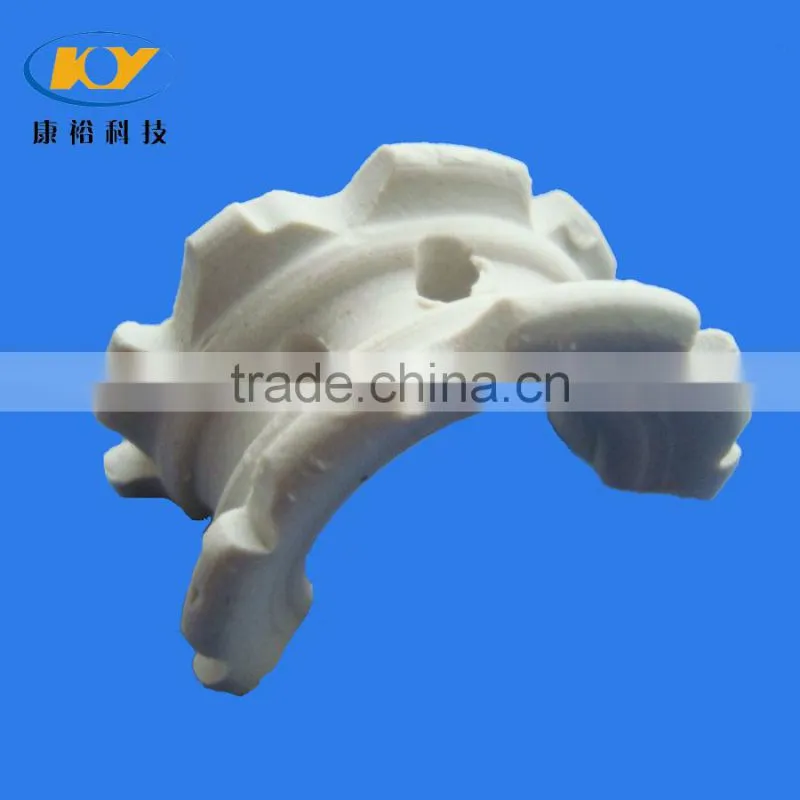

Ceramic intalox saddle ring

FOB Price

Negotiable / Cubic Meter

1 Cubic Meter(Min.Order)

Supply Ability 50000 Cubic Meter / Cubic Meters per Month
Port SHENZHEN / SHANGHAI
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Jiangxi, China	Type:	Ceramic Rollers	Application:	Industrial Ceramic
Material:	Alumina Ceramic	Model Number:	ceramic intalox saddle ring	Brand Name:	KANGYU company

Product Description

Ceramic Super Saddle Ring

Introduction:

Ceramic Intalox Super Saddle has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. It can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.

Chemical composition

SiO₂	Al₂O₃	Fe₂O₃	CaO	K₂O+Na₂O
>70%	23-30%	<1%	<1-2%	<2-4%

Physical properties

Index	Value
Specific gravity(g/cm³)	2.25-2.35
Water absorption(%)	<0.5
Acid-resisting strength, %Wt. Loss (ASTMc279)	<4
Firing temperature(Degree C)	1280-1320
Softening point(Degree C)	>1400
Density(kg/m³)	2350

Geometric properties

Nominal Size		Approx. weight		Surface Area		Void Fraction (%)	Dry Packing factor (m^-1)
inch	mm	lb/ft³	kg/m³	ft²/ft³	m²/m³	Void Fraction (%)	Dry Packing factor (m^-1)
1"	25mm	40	645	79.5	260	77	570
1.5"	38mm	37.5	600	64	210	78	430
2"	50mm	35.6	570	42.8	140	79	277
3"	76mm	36	580	32	105	77	206
