Popular type welding 304 316 stainless steel water storage tank with 1000 litre
Huili is manufacturer including Stainless steel water tank and SMC/GRP/FRP water tank, our products can be found flow by Stainless steel water tank, SMC water tank, etc. Welcome to our store!
Stainless steel water tank Description
Material
Huili stainless steel water tank adopt the import food level SUS stainless steel plate,interdicts the sunlight thoroughly and maintain the water quality and no algae growing .Factory use unique stainless steel plate and the high difficulty ramming formation craft to achieve the high strength requirements with the smallest material consumption .The weight only be one third of the ordinary panel.
Excellent appearance
Possessing all the advantages of glass steel water tank ,stainless steel water tank are superior in appearance .The smooth lines,elegant arc let people are good to hear or see ,which is fully deserve the star product .
High quality
Use high quality 304 stainless molding panel assembling together ,implementing new national standard rectangular water tank 12S101's design requirements .Strict standards including welding procedure qualification before construction ,controlling the operation method and weld heat treatment ,post-welding quality examination and other standards guarantee Huili'quality.
Dimension flexibility
panel dimension have 3 specifications :1*1m,1*0.5m,0.5*0.5m,which can assembled several kinds of volume from 0.125CBM to 2000CBM.That is extremely convenient to select for costumers.
Convenient installation

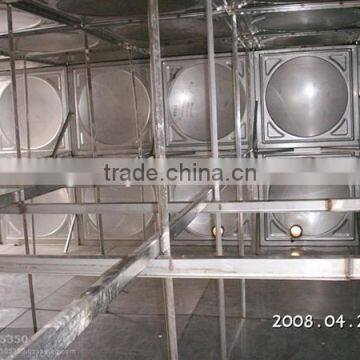

Factory precast panel not only ensuring quality ,but easy to site installation .Whole inter box is argon arc weld ,which can three sides on wall to save space .And it is result is very notable .
Ensure water tank
This kind of stainless steel panel can veil the light ,prevent algae to breed ,completely meet the requirement of drinking water sanitary standard (GB5794-2006)

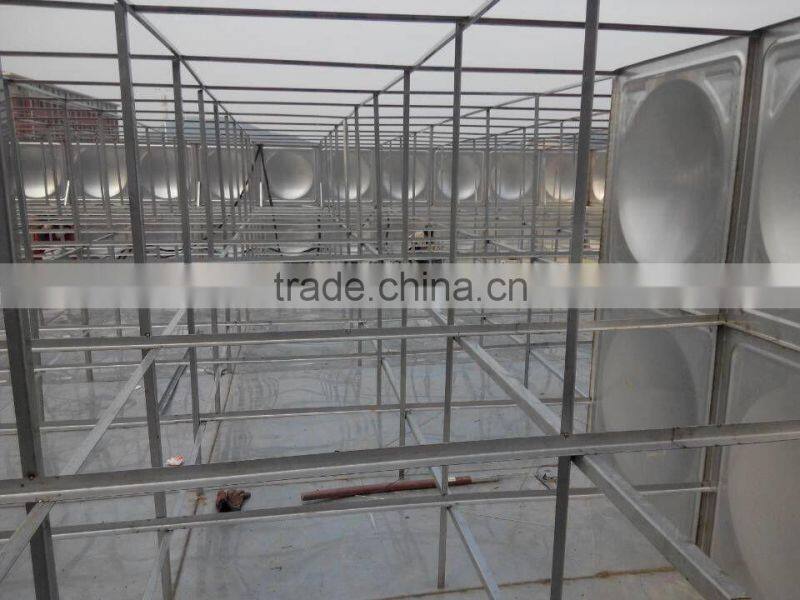

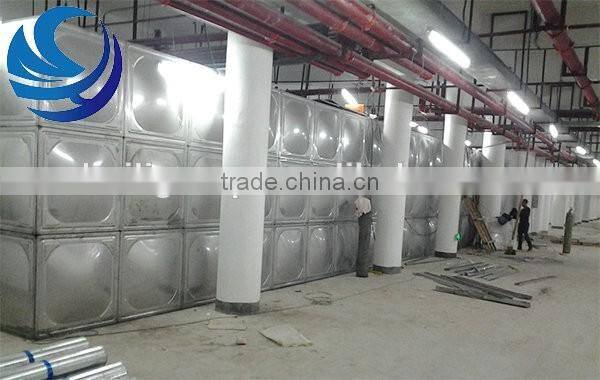

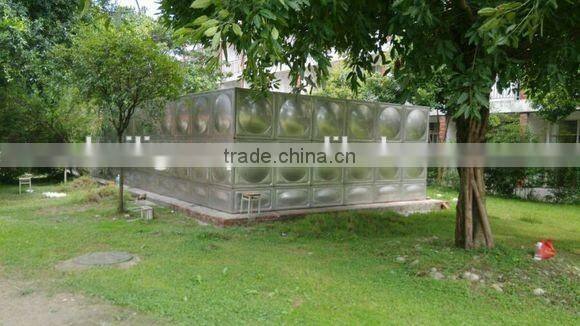

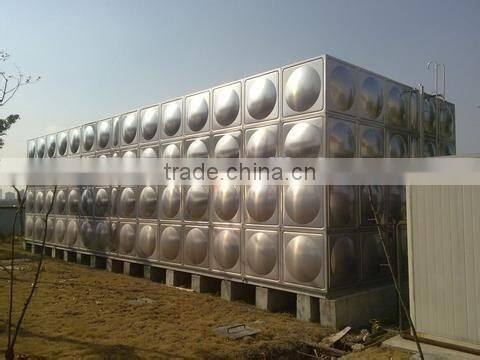

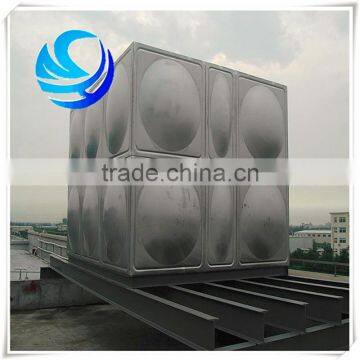

Product Show

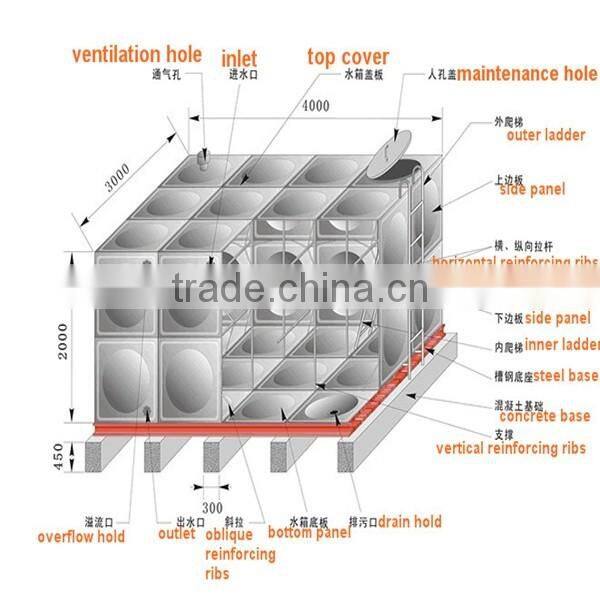

Product Details:

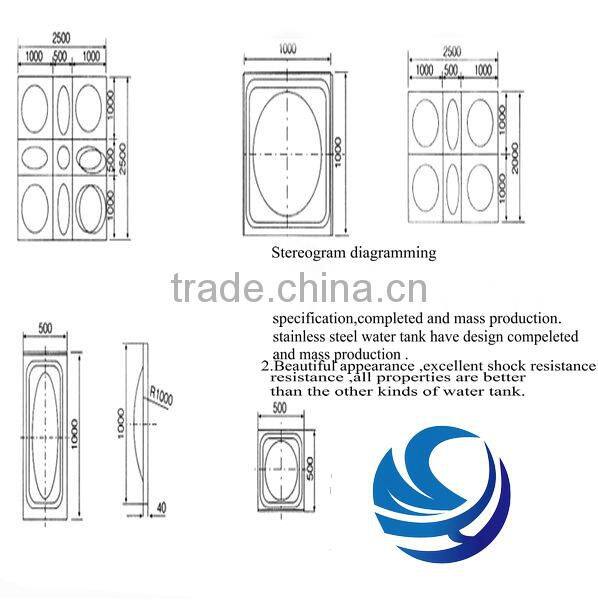

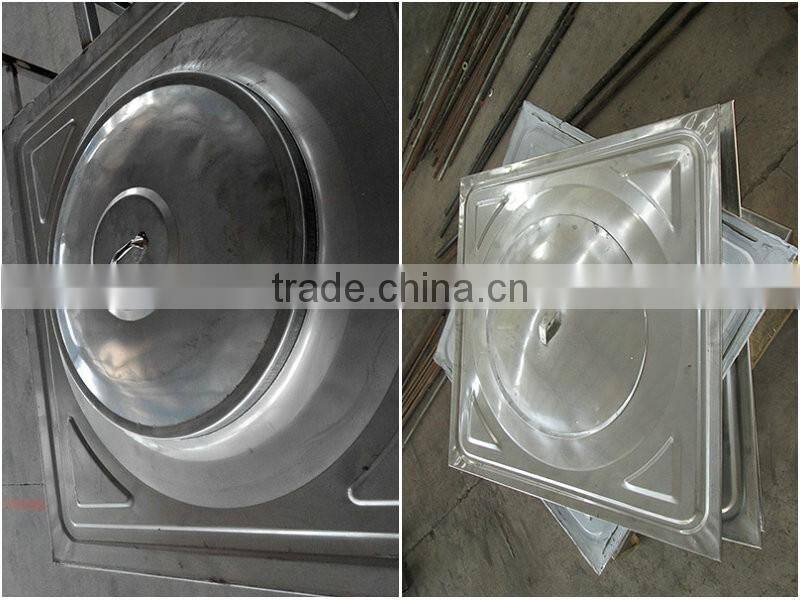

Panel of Stainless steel water tank
Specification parmeter
| Raw material | SS 304,SS316 |
| Panel size | 1x1m,1x0.5m, 0.5x0.5m |
| Process technique | ramming craft |
| Connection way | arc argon weldiing |
| Foumdation | Concrete foundation and U-steel bolttom base |
Tank height (mm) | Thickness of each panel | |||||
bottom panel | 1st layer side panel | 2st layer side panel | 3st layer side panel | 4st layer side panel | cover panel | |
| 1000 | 2.5# | 1.5# | / | / | / | 1.5# |
| 1500 | 2.5# | 1.5# | 1.5# | / | / | |
| 2000 | 2.5# | 2# | 1.5# | / | / | |
| 2500 | 3# | 2.5# | 2# | 1.5# | / | |
| 3000 | 3# | 2.5# | 2# | 1.5# | / | |
| 3500 | 3# | 2.5# | 2.5# | 2# | 1.5# | |
| 4000 | 4# | 2# | 2.5# | 2# | 1.5# | |

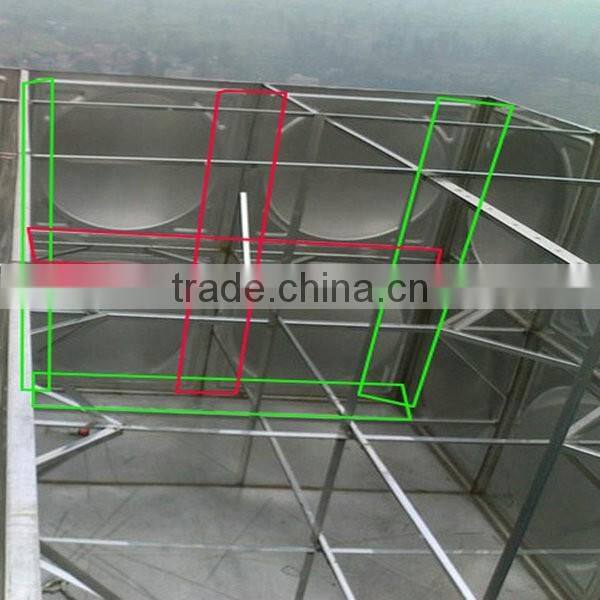

Stainless steel tank advantages
Model Size
Model (XYSPZ) | Volume (m3) | External Dimension (mm) | Panel Thickness (mm) | Bottom Support | |||||||||
L | B | H | Top Panel | Floor Panel | Layer 1 | Layer 2 | Layer 3 | Layer 4 | Margin(C) | Space(C1) | Quantity(n) | ||
1 | 10 | 2500 | 2000 | 2000 | 1.2 | 2.0 | 1.5 | 2.0 | 200 | 600 | 5 | ||
2 | 12 | 3000 | 2000 | 2000 | 1.2 | 2.0 | 1.5 | 2.0 | 200 | 600 | 6 | ||
3 | 15 | 3000 | 2500 | 2000 | 1.5 | 2.5 | 1.5 | 2.0 | 200 | 600 | 6 | ||
4 | 20 | 4000 | 2500 | 2000 | 1.5 | 2.5 | 1.5 | 2.0 | 200 | 600 | 7 | ||
5 | 24 | 4000 | 3000 | 2000 | 1.5 | 2.5 | 1.5 | 2.0 | 200 | 600 | 8 | ||
6 | 30 | 5000 | 3000 | 2000 | 1.5 | 2.5 | 1.5 | 2.0 | 200 | 600 | 9 | ||
7 | 40 | 5000 | 4000 | 2000 | 1.5 | 2.5 | 1.5 | 2.0 | 200 | 600 | 9 | ||
8 | 50 | 5000 | 5000 | 2000 | 1.5 | 2.5 | 1.5 | 2.0 | 200 | 600 | 9 | ||
9 | 60 | 6000 | 5000 | 2000 | 1.5 | 2.5 | 1.5 | 2.0 | 200 | 600 | 11 | ||

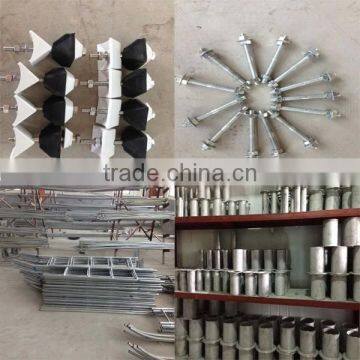

Accessaries:
Stainless steel water tank Appplication
1.Constructon / fire-fighting water supply .
2.Water storage pool.
3.Water supply for living and production of industry ,mining and enterprise.
4.Water circulation system ,chiling water and hot water supply system .
Notice:Stainless steel tank have the bolted connection too,the shape is same with the galvanized tank
Stainless steel water tank Packaging and Shipping
Our coampany:
Dezhou Huili Environmental Technology Co.,Ltd is a professional production enterprise specializing in the production and design of the water tank .
Company's products include: fiber glass reinforced plastic water tank, stainless steel watertank,enamel steel water tank, hot dip galvanized steel water tank, gush-paint steel water tank and undergroud water tank .Company tenets: quality first, customer first and best credibility!The same price with best quality,the same quality with highest reputation!
The company has a professional after-sale service institution, each service branch are provided with a fixed installation and after sale serviece personnel to ensure the user to get a response from us in the first time.
Our customer:
FAQ
Q1:Can i only send you the CAD drawing or 3D drawing , and you make the sample for me to test , it's OK?
A: Yes ,we can make the product that you need based on the sketch drawing or 3D Drawing
Q2:Can I go visit your company?
A:Yes, of course! You're warmly welcome! If you come, please feel free to contact us. We will pick you up!
Q3: You are a factory or trade company?
A: We are a factory which located in dezhou, Shandong, China.
Q4: Do you accept samples order?
A: Yes we can accept.
Q5: Can you make a confidentiality for our project ?
A: Yes of couse. We can sign a confidentiality agreement for you.
