1000m3 water tank, stainless steel reservoir ,stainless steel panel water tank

Huili is professional water tank manufacture, there are stainless steel water tank, frp water tank, galvanized steel water tank. Our water tanks has large using scope: drinking water, agriculture water, industrial water and etc.

Brief Introduction

Raw material: SS304 2B, SS316
Panel size: 1x1m, 1x0.5m, 0.5x0.5m
Process technique: ramming craft
Connection way: arc argon welding
Panel thickness(according to height):1.5mm, 2mm, 2.5mm, 3mm, 4mm
Foundation: Concrete foundation and U-steel bottom base

Advantages and strengths

1. Beautiful appearance

Possessing all the advantages of glass steel water tank, stainless steel water tank are

superior in appearance. The smooth lines, elegant arc let people are good to hear or see, which

is fully deserve the star product.

2. Reliable quality

Use high quality 304 stainless molding panel assembling together, implementing new national

standard rectangular water tank 12S101’s design requirements. Strict standards including

welding procedure qualification before construction, controlling the operation method and weldheat treatment, post-welding quality examination and other standards guarantee Huili’s quality.

3. Dimension flexibility

Panel dimension have 3 specifications: 1*1m, 1*0.5m 0.5*0.5m, which can assembled several

kinds of volume from 0.125m³ to 2000m³. That’s extremely convenient to select for costumers.

4. Convenient installation

Factory precast panel not only ensuring quality, but easy to site installation. Whole inter box

is argon arc weld, which can three sides on wall to save space. And it’s result is very notable.

5. Ensure water quality

This kind of stainless steel panel can veil the light, prevent algae to breed, completely meet therequirement of drinking water sanitary standard(GB5794-2006).

Application

Pump Chambers

Emergency Water Storage

Rainwater Harvesting & Storage

Potable Water Storage (drinking water)

Effluent/Acid and alkali solution treatment & Storage

Hospital,buildings,building site, school,campgrounds and other places

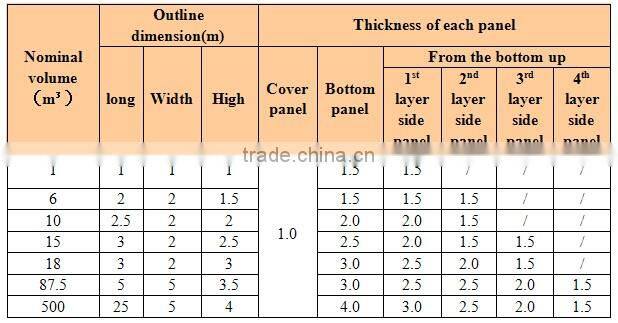

Specification parameter

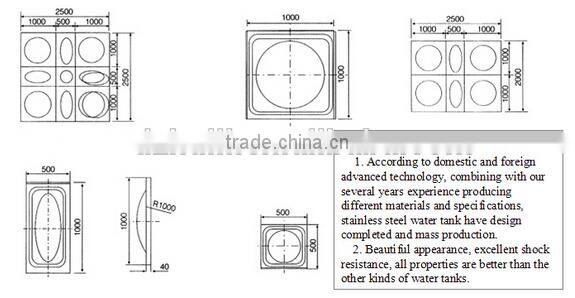

Structure drawing

The main components are: tank body, internal support and reinforcement, manholes, inside and outside the ladder, each connecting pipe, water level gauges, steel base, external insulation (optional) and so on.

Accessories

1. Support for Panels: The panels shall be supported externally or internally by an adequate support system. External Reinforcement - Hot Dipped Galvanized Steel  Internal Reinforcement - Hot Dipped Galvanized or Stainless Steel 304 rod support and tie-rod

2. Sealing Materials: Non toxic Rubber foam to be used for all jointing, it is especially developed with long experience and technology on SMC products. It maintains soft itself and adhesives even at low temperatures

3. Bolts, nuts and washers for the assembly of panels: Exposed externally are hot dipped galvanized steel and in contact with water internally are hot dipped galvanized steel or stainless steel 304

4. Flange: the flanges for inlet, outlet, drainage, overflow are hot dipped galvanized steel or stainless steel 304

5. Ladders: SMC sectional tank of 1.5m depth or more shall be provided with internal ladder made up of materials same with the supports. The external ladders shall be galvanized mild steel or equivalent

6. Drainage: The dome shaped bottom panel with a concave drain panel facilitates complete and fast drainage. The concave drain panel has been designed to ensure the periodic cleaning and inspection of tank

7. Overflow Screens: it can be supplied with a screen overflow having a micro mesh filter

8. Man-hole opening & Inspection Hatches: the size can be customized; normally it is supplied with a standard size of:600 x 600mm. the opening can be designs of bolt, seal-tight locking arrangement

9. ABS roof vent with PE insect screen

10. Float level indicator, optional SS304 for internal and external supportstructure are available on request.

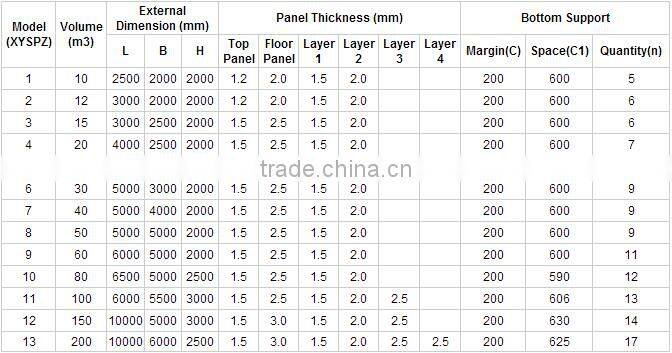

Popular tank models

Packaging and shipping

1. plywood 2. iron bracket 3. naked package

Tank insulation

The water tank polyurethane by Huili fully used of it is insulation effect and adhesion property,foam through high temperature and the integrate molding ,perfectly fit kinds of water tank panel .Insulation panel use outsourcing angle reinforcement ,which is attractive and durable ,forbidden cold-bridge .

Bond with plate creatively on the surface .The surface plates have color steel sheet ,stainless steel sheet ,galvanized steel sheet .Comparing with traditional aluminum foil,those sheet have better effect and more beautiful surface .

Our company

Dezhou Huili Environmental Technology Co., Ltd

is a professional production enterprise specializing in the production and design of water tank

Company's products include: fiber glass reinforced plastic water tank, stainless steel watertank,enamel steel water tank, hot dip galvanized steel water tank, gush-paint steel water tank and undergroud water tank .

The company has a professional aftersale service institution, each service branch are provided with a fixed installation and after sale serviece personnel to ensure the user to get a response from us in the first time.

FAQ

1.What's the guarantee, in case the water tank breaks down?

The water tank has one year s guarantee. If it breaks down, generally speaking, our

technician will figure out what the problem may be, according to client s feedback.

Parts will be replaced for free if the problems are caused by quality fault.

2.How about the documents after shipment?

After shipment, we ll send all original documents to you by DHL, including Packing List,

Commercial Invoice, B/L, and other certificates as required by clients.

3.How long is the delivery time?

For standard water tank less than 100m3, it would be 7-10 days; For non-standard

water tank and customized water tank according to client s specific requirements, it would be 15 to 30 days.

4.How's the payment?

Telegraphic Transfer(T/T).

5.Do You Arrange Shipment For The Machines?

Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.

6.How is the packing?

Solid Seaworthy plywood Box Package with Steel Belt

Save space as much as possible for container loading.
