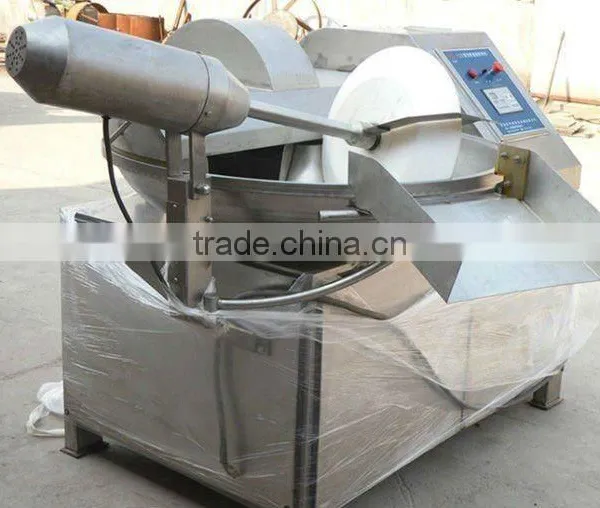

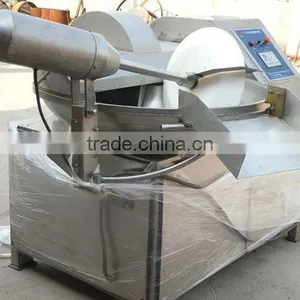

meat cutter and mixer /chicken slaughtering machine/chicken cutter machine/meat bowl cutter machine

Specifications

1bowl cutter for sausage
2can cut and emulsification variety of meats
3capacity:10-120kg/time
4automatic
5certificate CE

sausage bowl cutter/ cuter machine/Cut mixer/chicken cutter machine/portion cutter machine

A.

Feature:

1, the noise is small, high efficiency, energy-saving effect is remarkable.
2. and chop knife selects theimport material with a special processing technology into the pot, beheaded for casting of stainless steel materials.
3 .and chop pot for double speed, can and behead knife with any breaches speed, cutting and mixing time is short, grinded materials.
4, electrical components use waterproof design, good sealing.

5. mixing of raw materials to achieve the full fine, showing the best emulsification effect

B.

Function:

All panel controls, everything is under control
Free high-speed low-speed change
Security design

C.

Product introduce:

Variable frequency motor drive and of high quality, so that the rate of 300-3600 chopper switch / min between the arbitrary adjustment of aircraft noise, high efficiency, energy saving effect is remarkable.
Chop the pot for double speed, you can match the speed with the chopper, chopping a short time, the material temperature small.
Equipped with a feeder, the material easy to clean and
Electrical components with waterproof design, sealing, and easy to clean.
Temperature, time, number of revolutions can be displayed and set. Best time chopping control
The key components imported components, such as cut knives, bearings, inverter, electrical components

D.

Product parameter:



Parameter:



Model	Knife	Power(kw)	Capacity(kg/time)	Inner diameter(mm)	Voltage(v)	Weight(kg)
20	3	3	10	550	220,380	200
40	3	5.1	20-30	760	220,380	680
80	6	13.98	60-80	960	220,380	1000
125	6	21.48	100-120	1100	220,380	1800
80(variable frequency)	6	13	60	960	220,380	1000
125(variable frequency)	6	33	90	1100	220,380	1800
200(variable frequency)	6	58	120	1300	220,380	3000
200(vacuum variable frequency)	6	58	120	1300	220,380	3500
