Chicken feeding system

Chicken feeding system (U-Best)

Main feed line system components:

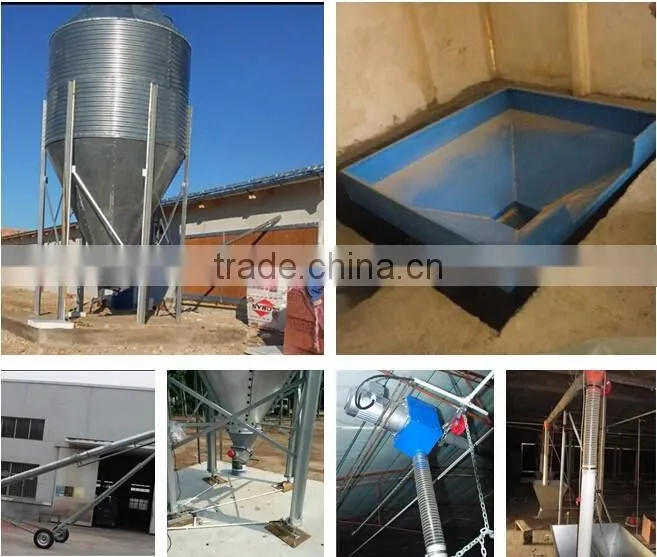

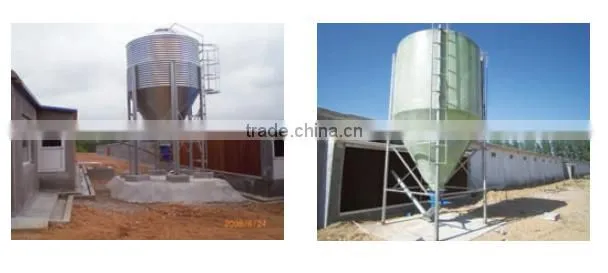

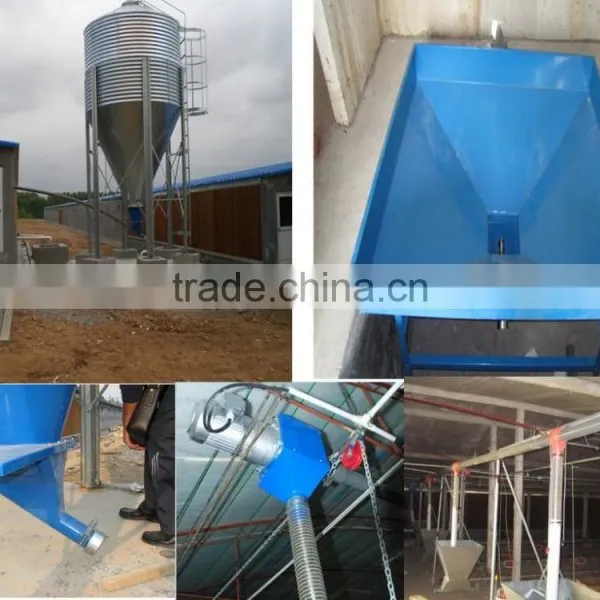

Silo Featuress:

*Silo with standard ladder and guard railing is safe and reliable.

*Solid connection and good sealing performance.

*Steel sheet double-layer galvanized ensure a service life of more than 10 years.

*FRP(Fiber reinforced plastics) silo has a good performance of water-roof,moisture-proof,and insulation,which ensure a long service life.

Parameter of silo:

Driving Motor:

Power:0.75Kw

Voltage:380V

Frequency:50HZ,three-phase AC current

Feed level Sensor:

Germany IFM feed level sensor

Feed conveying:

Diameter of conveying pipe:75*3.6mm.

Material:PVC

Helical spring auger from South Africa

Feeding ability:1400kg/h,Maximum

Conveying length:60m

Radius of bending pipe:R1500-2000

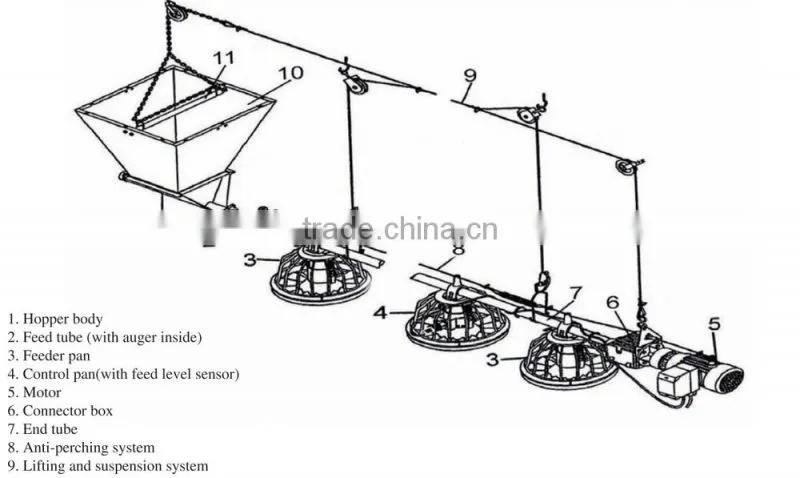

Pan feeding line system:

2.Automatic pan feeding system:

This system convey feed through the rotation of helical spring auger,inclulding main feed line and pan feeding lines.

Main feed line:silo/manpower hopper is the beginning of main feed line.there is a feed sensor at the end of main feed line which controls motor on and off to achieve automatic feed delivery.

Advantages:Reduce labor intensity,one person is enough for one house.

Pan feeding line:There is a feed sensor at the end of each feeding line which controls motor on and off to achieve automatic feed delivery.

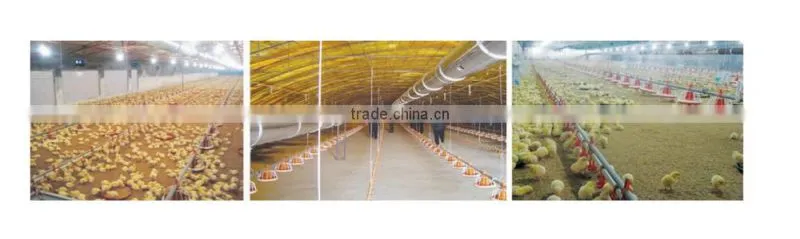

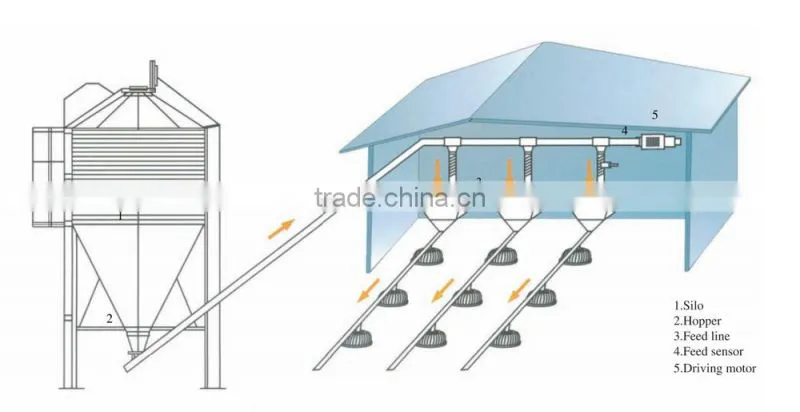

Installation layout picture of main feed line in chicken house:

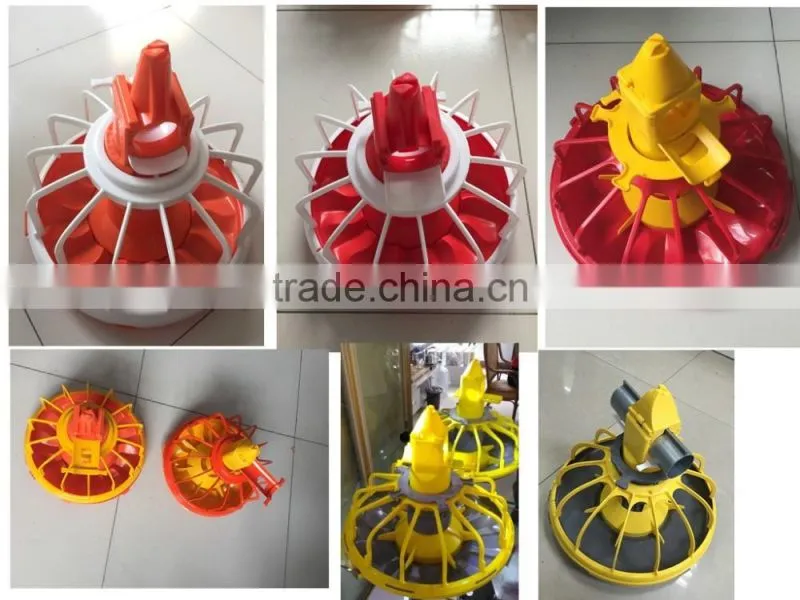

Feed  pan type:

Main features of broiler feed pan:

*Outside adjustment feed pan has 6 gears of feed amount,and the other kinds has 13 gears.

*Feed pan slide switch could adjust feed flow until it is filled.

*Outside adjustment feed pan is more convenient,accurate and quick to adjust feed flow,the operation is to hand by the out side grids and rotate up and down.

*Pan bottom can be disassembled on the fround,working for day-old chickens.

*V-Pan plate design can reduce feed storage on bottom,so birds can always eat fresh feed .The design can also prevent the birds from staying too long on the plate.

*The edge of pan plate tilt towards the center,which can avoid waste of food.

*The smooth edge can prevent the craw of birds from hurting and make sure safety and comfort feeding.

*Feed pan installation has fixed type or swing type.

Driving Motor:

(Taiwan motor with overload protection of IP55 grade)

Power:0.75KW

Voltage:380V

Frequency:50HZ,three-phase AC current.

Feed Hopper:

Bin volume:115L,200L

Material:hot-drip galvanized sheet

Material Thickness:1mm

Pan feeding system:

Conveying pipe:4-pan/3m.3-pan/3m

Diameter:45mm

Material:hot-dip galvanized steel pipe the zinc coating amount is more than 275g/m2.

Thickness:1.2mm

Spring auger:Imported from South Africa.

Feeding ability:400kg/h

Feed sensor:

When feed sensor is installed inside the feed pan (connect to open),driving motor starts work to convey feed,when feed sensor does not touch feed,and it stops conveying feed when feed sensor touches feed(for main feed line and pan feeding line use).

When feed sensor is installed at the bottom of feed bin(connect to close),the function is opposite to the above situation.

Lifting system for feed line:

*Main part:which,pulley,fixing plate,steel wire rope and clamp.

*The height of feeder pan is very important for chicken growing ,it is very conenient to adjust the feeding line height by winch.The best height of feeding line is :chicken back height and feeder pan up grill should at the same level.

*It is convenient to clean the chicken house and for chicken's in and out through adjusting feeding line height.

Suspension system for feeding line:
