Automatic Poultry Feeder and Drinker for Broiler Chicken

Poultry Automatic Pan Feeding/Feeder System

Automatic pan feeding/feeder system consists of a driving motor, a hopper, a conveying pipe, an auger, feed pan, a suspension lifting device, an anti-perching device and a feed sensor.

Parts and Parameter:

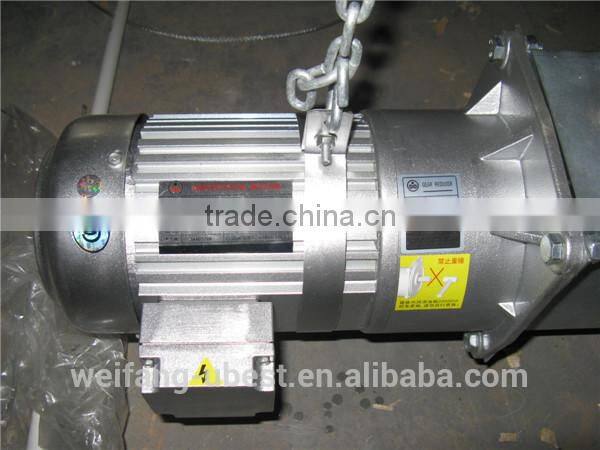

(1).Driving Motor high-quality special driving reduction motor, China Taiwan motor and European motor for your choice
Power:0.75KW/1.1KW/1.5KW; Voltage: 220V, 380V, others; Frequency:50HZ,60HZ; Phase:1-phase,3-phase.

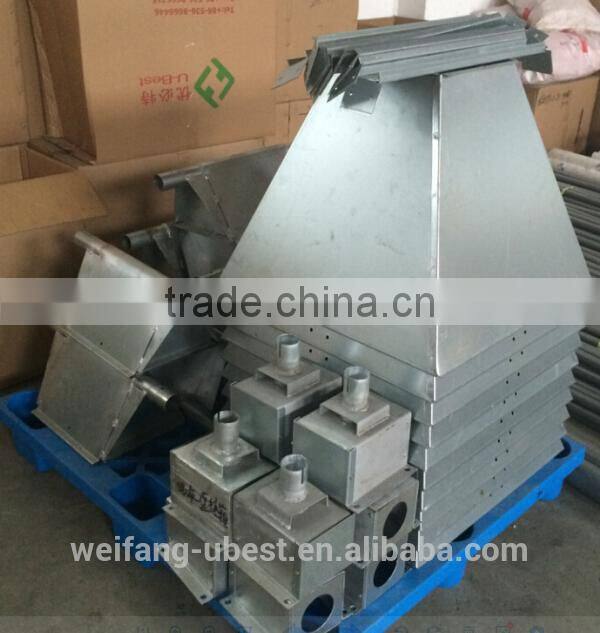

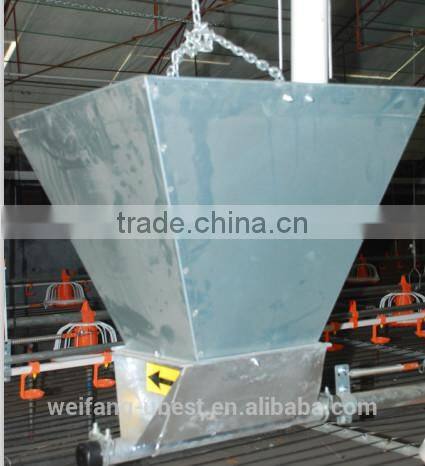

(2).V-Shaped Bin with Hopper
Bin Volume:115L, Hopper volume:38L  Material: hot-dip galvanized sheet

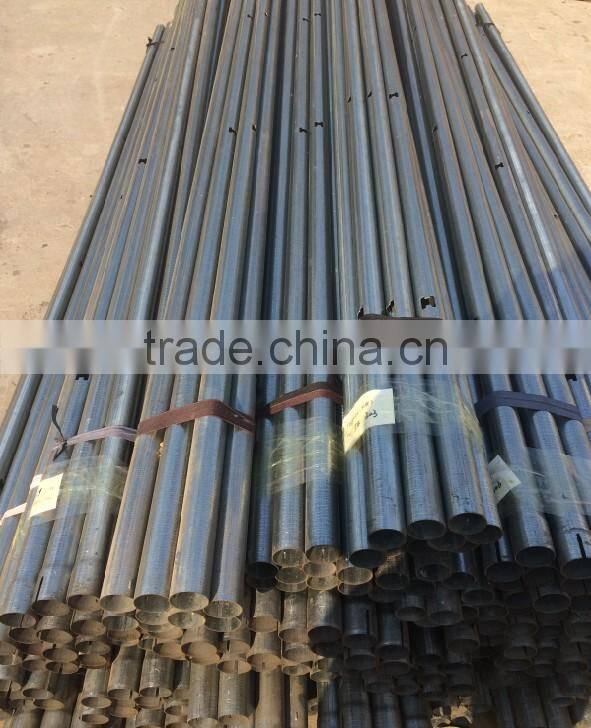

(3).Conveying Pipe and Auger
Diameter:Φ45mm; Material: hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2

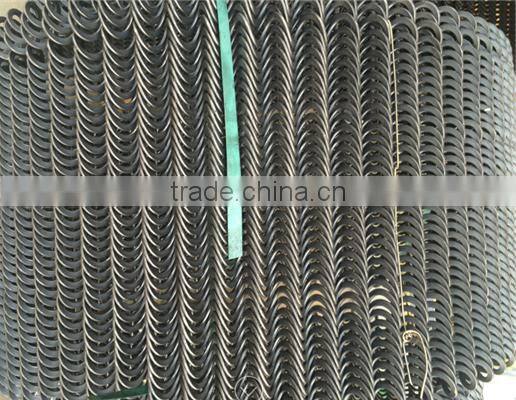

Auger Helical spring auger imported from South Africa, Feeding ability:450kg/h Maximum conveying length:140m

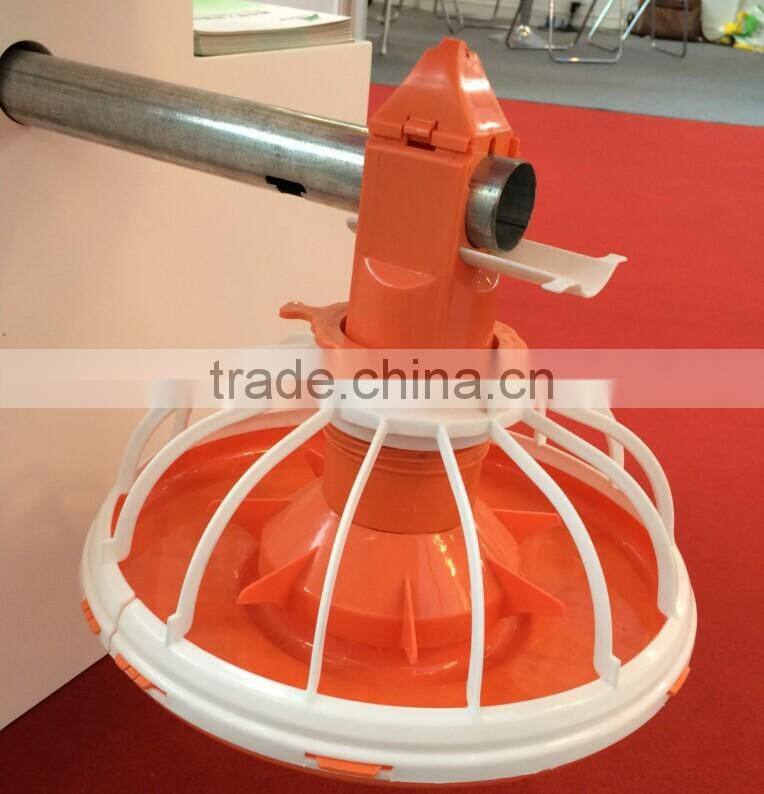

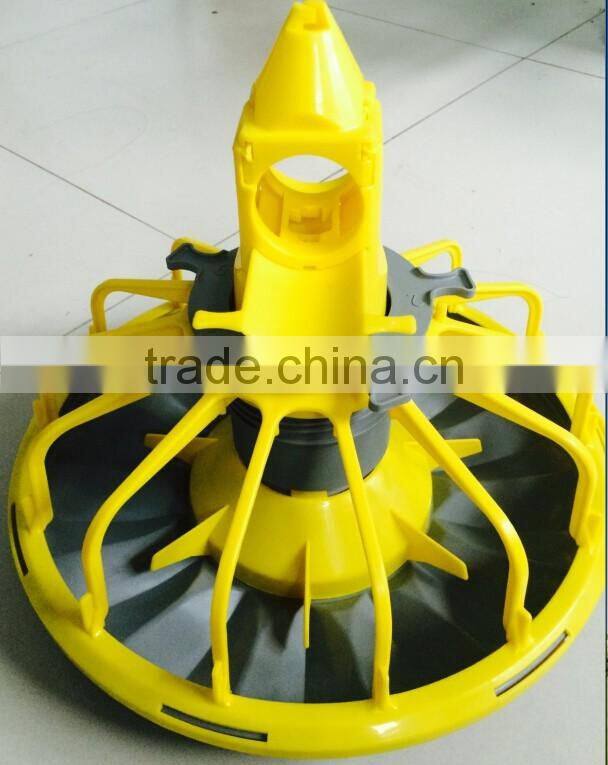

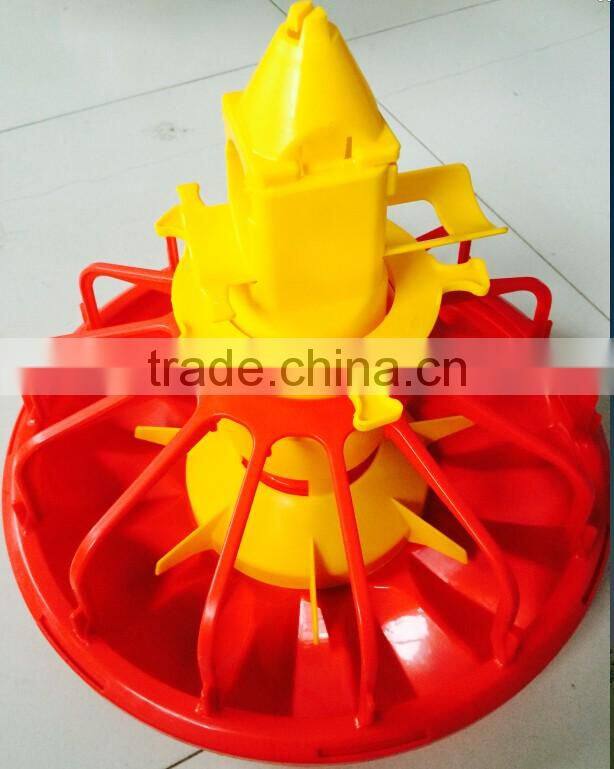

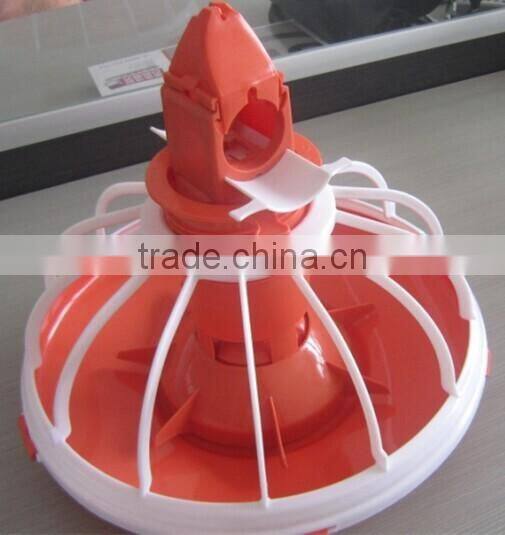

(4).Feeder Pan
Pan distance: 4 pans/3 meters, 3 pans/3 meters. Material: ABS PP Diameter:360mm×360mm
(5).Feed Sensor
Imported from Germany; time delay range 0 to 2 hours.
(6).Hanging System winch in the middle of house, hanging point 3m, all steel wire.
(7).Anti-roost System
Noted Point: Max provide length: 150m Feeding line distance: 3m

A Complete Set Automatic Poultry Equipment for Broiler Chicken Also Includes The Following Parts:

Packaging and Shipping:

Standard export package of automatic poultry feeder for export is in container. Shipment in 15 days after the order confirmation.

Company Information - Weifang U-Best Husbandry Equipment Co.,Ltd

We are professional leading manufacturer and supplier of automatic poultry feeder in China!

We have our own production line so we can control the quality very well with a good price! Our Equipment has passed ISO9001: 2008/PC Certification By SGS/Soncap/SASO Certification!

Because of our High Quality Products, Competitive Price and Superior After-sale Service, our poultry equipment has been exported to more than 40 countries and have good market reputation!

We have many different project of chicken farm in Indonesia, Philippines, Columbia, Costa Rica, Paraguay, Honduras, Sudan, Palestine, Zimbabwe, Mozambique, Qatar, Dominica, Saudi Arabia and Fiji etc.

FAQ:

1. Q: I need a complete automtic poultry feeder equipment, and also need a best price, what should I do?

A: pls let us know:

(1). Chicken House Size (length x width x height).

(2). If for Broiler Chicken, Quantity and Final Weight to Sell in Market.

(3). If for Breeder or Layer, Rearing Density or Target Breeder/Layer Quantity(Quantity of Female and Male).

(4). Maximum and Minimum Temperature of Farm Location.

(5). House Type: close type of two side bricks building wall with 36” fans and air inlets, or open type of using curtain in two sides.

2. Q: what's the material of feeding pan and feeding pipe?

    A: the material of feeding pan is 100% PP.

         the material of feeding pipe is galvanized pipe.

3. Q:  how long is the life of your products?

   A: more than 15 Years.

4. Q: Do you have any certificate?

   A: ISO9001: 2008/PC Certification By SGS/Soncap/SASO.

5. Q: Sample available?

    A: yes. but the client pay for the freight fee.
