We provide both breeder equipment and broiler equipment.

The system can convey feed from hopper into trough automatically.

Driving motor:

Use cycloidal-pin wheel reduce device, more stable and reliable convey feed equality, reduce noise than toothed wheel.

Trough bracket and connection:

Liftable, we can adjust their height according to different breeding stages.

Bracket surface:

Hot galvanizing process, anti-corrosion, more suitable for poultry house environment.

Its surface are special hardening processed, alloy bearing don't need oiling, have good wear resistance and long service

life.

Trough with chain inside:

Trough made of wear-risistant and anti-rust material, have 44mm width of limited food grill, which can separate the hens and

roosters apart effectively, and different width food grill can be customized according to customer requirements.

Hopper:

Made of high quality galvanized sheet, hopper and trough interface site has a cover plate, it is easy to adjust the height

of material level and prevent feed spill.

The system can convey feed from vice hopper into each feed pan automatically.

Driving motor:

Power: 0.75kw

Voltage: 380V/220V/customerized

Frequency:50hz, three phase/single-phase, AC current.

Vice hopper:

Size: 70Kg, 90Kg

Material: hot-dip galvanized sheet, thickness: 1mm

Feed Pipe:

Material: Hot-dip galvanized steel pipe(the zinc coating amount is more than 275g/m2), thickness:1.2mm

Diameter: 45mm

Specification: 4 holes/3 metres, 3 holes/3 metres

Spring auger:

Origin: imported from South Africa

Feeding ability: 400kg/h.

Feed sensor:

The sensor is installed inside feed pan(connect to open), driving motor starts working to convey feed when sensor doesn't

touch feed, driving motor will stop working when sensor touchs feed.

When feed sensor is installed at the bottom of feed bin(connect to close), the function is opossite to the above situation.

Female breeders feed pan:

1). Feed pan diameter: 360mm;

2). Material:pp---Polypropylene;

3). Feeding capacity: 12.5 birds/pan;

4). 16 grills width of 40-52mm divide into 11 files, suitable for all stages breeders (including day-old birds) feeding

needs;

5). Feed hole height of 70mm,80mm,90mm three files. when feed hole width is 52mm, height is 80mm, chicks can

in&out freely;

6). Feed pan capaicty: 16 grades files, 200-630g/pan, which can meet different stages chickens eating demands;

7). Pull switch design, easy to switch each pan;

8). Bottom of the pan can be hanged, easy to take down, convenient to install and wash.

Male breeders feeder pan:

1). Feed pan diameter: 360mm;

2). Material:pp---Polypropylene;

3). Feeding capacity: 8-9 birds/pan;

4). With 9 grilles design, there are still intake hole after supplementing male breeders.

5). The fixation clamp can prevent feed pan swinging, so as to keep feed at the center of feed pan.

6). The adjusting ring at the top of feed pan can adjust the feed gears to the optumum position to reduce the waste of feed.

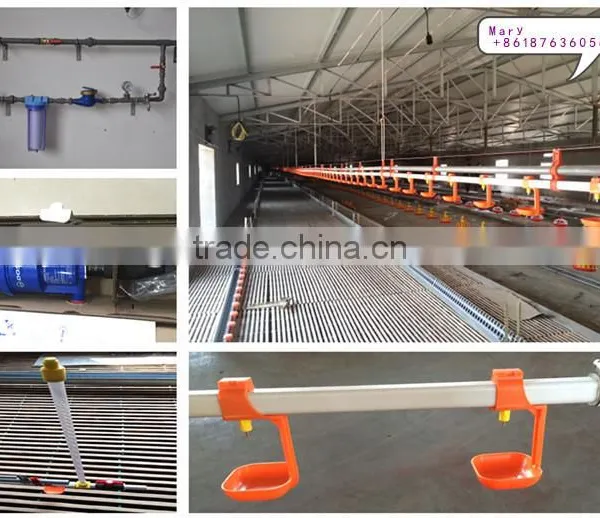

2. Details for nipple drinking system:

The system provides clean and fresh water into each drinking lines steadily, the water will be out when chickens touch

nipples.

Nipples&drip cups&square water pipe:

1). Outside shell is made of pure engineering plastic, inner valve rod is made of stainless steel.

2). Feeding capability: 8-10 birds/drinker.

3). All nipples are anti-rusting, service life over 10 years.

4). Double-sealing structure, with good seal ability, avoid water leakage and its bad influence to chicken house.

5). Valve rod is movable in 360 degree, it's suitable for all chickens to drink, from day-old chicks to adult chickens.

Pressure regulator( double barreled with large flow capacity)

1). Good regulating stability, high switching performance.

2). Sufficient water supply.

3). Recoil cleaning with good cleaning result, save time& water.

4). Good quality movable valve, easy to change

Waterline front system:

Front part is controller of water, usually installed in control room.

1). Pressure regulator: make sure to supply stable water to drinking line. Anti-backlash device can discharge the

impurity in pipe.

2). Filter: clean water and avoid blocking nipples.

3). Water meter: measure water usage volume.

4). Doser: add medicine exactly to prevent disease.

Lifting& suspension system:

Correct height for drinking system is very important for chicken( both higher and lower can result chicken bone's

distortion, which is bad for chicken growth, also lead to water waste), it's easy to adjust drinking line height by winch.

Water display level tube:

Use high transparency& impact resistant meterial, it's sturdy and durable, easy to watch water level, easy to take down

and clean with this advanced design.

3. Main feeding system:

The system is used to convey feed from silo or manpower hopper into each feedling line hopper automatically.

Feed silo:

3T-20T
Manpower hopper:

Economical substitute of feed silo, 600Kg/800Kg
Driving motor:

Power: 0.75Kw; Voltage: 380V/220V/customized, Three-phase/Single-phase; Frequency: 50Hz
Main feed line:

Diamater of conveying pipe: Φ75mm;Material:PVC
Helical spring auger:

imported from South Africa; feed ability:1400Kg/h; Conveying length:60m
Sensor:

imported from Germany

4. Ventilation system:

The system controls climate condition, provides fresh air, proper temperature and humidity for different satge chickes,

ensuring your chickens provide maximum production.

a.Ventilation fans:

b.Air inlets:

*Manuel control: Operater will check the pressure of chicken house,control the winch by hand until meet requirements

*Automatic control: As the request of difference chicken house pressure by the controller control, make the air inlet

windows open and off automatically to meet the request.

5. Cooling pad system:

When the air goes through cooling pads, the heat will be taken down by the evaporation of water, so the air will be cooled

before going into your chicken house.

Thickness: 100mm, 150mm
Width: 300mm, 600mm
Height(with frame): 1660mm, 1960mm, 2160mm
Height(without frame): 1500mm, 1800mm, 2000mm
Frame: Galvanized sheet frame or Aluminium alloy frame

6. Environment control system:

The system can control the temperature in chicken house by controlling ventilation fans, cooling pads, air inlet windows

and heaters automatically, also control the light, water and feeding.

Environment controller:
We have Israel imported controller and domestic brand controller for your choice, they have different functions and

different prices.

Temperature sensor and humidity sensor
Control boxes

Light system&wire system.

7. Laying nest system:

8. Slat floor system:
