GRP/FRP/fiberglass SMC section panel water storage tank 20 years manufacture

Glass fiber reinforced plastic SMC Water Tank for hot water storage

1. The SMC combined type water tank was designed with the National Building materials Bureau Glass fiber reinforced plastic Research Design institute, is new water tank which at present internationally generally use. It has no leakage, the weight is light, the water quality is good, the contour is artistic, and the service life is long and merits and so on easy installation.

2. The water tank seal uses the sealing tape which develops specially. This sealing tape non-toxic, water resistant, the elasticity is big, the permanent deformation is small, and the lifetime may above 30 years.

3. The SMC combined type water tank is by the SMC mold pressing veneer, the packing material, the metal fastener and the tubing system combination. It may assemble 1-500 tons water tanks according to the user need. If the original water tank needs to replace, does not need to rebuild the house, imports the mold pressing veneer by the gate then to assemble, the usability is very strong, and executes the ministry of public works for the design to bring enormously convenient. Our company develops outside successful SMC to reinforce the combined water tank most newly also already by the customer approval use.

1. The roof,   2.the blowhole,  3.the tension bar,  4.inside jotting board,

5. The manhole cover,  6.inside ladder,  7.outside ladder,  8.enters board,

9. The overflow outlet,  10.the water inlet,  11.the water outlet,

12. The base (prepare by your side), 13.The steel frame,   14. The drainage outlet.

15. The drainage board,    16.The bottom board,  17.The outside jotting board,    18.the side board

Installs use matters needing attention

1, SMC combined type water tank design to store up the normal temperature tap water before please do not store up the hot water and other liquids (chemicals, petroleum and so on)

2. Constructions, please press the foundation size request, the installment stays, provides the water which the construction power source and the inspection seal uses.

3. Must avoid nearby the water tank using the fire. When carries on the welding work, must take the protective measures, do not cause flake to splash to water tank stave sheet

4. Must prevent the pollutant or plunges in the water tank from the exterior inflow. Easy to inspect and in order to the security from the maintenance, must have certain spatial around the water tank

5. SMC combined type water tank's maintenance.

Cleaning water tank interior and exterior please use the soft apparatus. The long time has not used water, before the use, please first water discharge, makes the inspection after the water tank interior uses again. New clothing's water tank, must clean twice times before using,

Product performance

The SMC mold pressing veneer is selects the non-toxic resin to solidify after the mold pressing process. The box body soaks in water, the water quality to be stable, does not contain the toxicity, and conforms to national tap water standard GB5749-85).

The water tank seal uses the sealing tape which develops specially. This sealing tape non-toxic, water resistant, the elasticity is big, the permanent deformation is small, and the lifetime may above 30 years.

SMC the mold pressing veneer mechanization formation performance satisfies the following request:

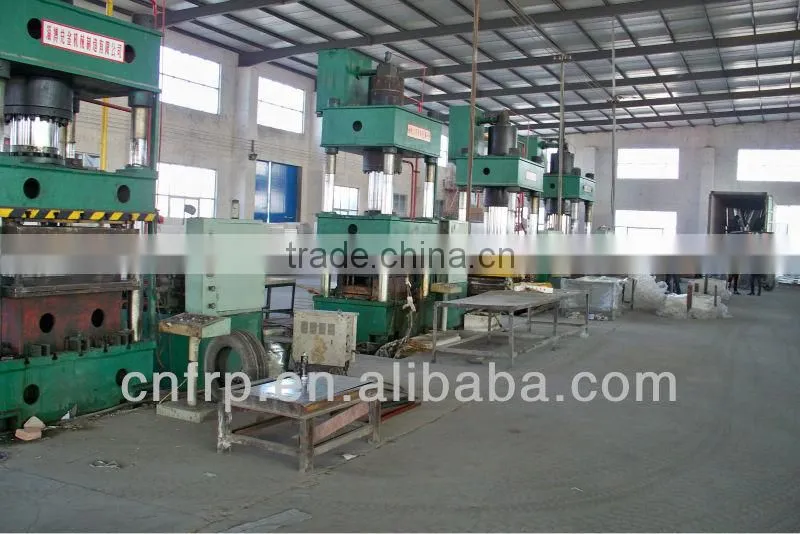

 Factory photos
