south korea cooling pad for poultry

Specifications

south korea cooling pad for poultry
1.High hygroscopicity, quick dryness.
2.High evaporation efficiency.
3.No water carry-ove

south korea cooling pad :

:

1) Made of hydrophobicity kraft paper

2) No surfactant or harmful chemicals, like phenol

3) Absorbs water naturally

4) Water absorbing capacity is 60-70mm/5min or 200mm/1.5h

5) Cooling efficiency is by up to 80%

6) No harmful to health during installation and application

7) Belonging to green and environmental products

8) Approved RoHS certified

9) Different clours for customers' choice, brown, black edge, green

10) OEM service is available

We can also make the products due to the customers' requirements.

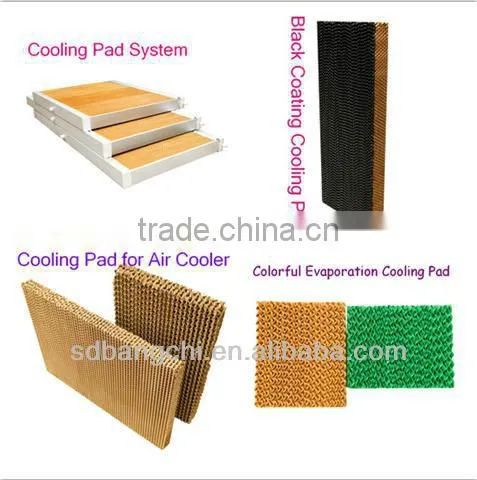

Four colors can be choose:

cooling pad with two frame:



Working Principle :



 When the water cross the cooling pad, the water become water film on the surface of the pad. The water film exchange heat with the passing air and evaporate into the air. As the principle of evaporative cooling, controlling the temperature and humidity through modifying humidifying volume and the ventilation size.

Available Size 7090/5090

Note: Size could be made according to the customer.

H: Height    W: Width   D: Depth   h: corrugation height

α: corrugated sheet angle (1)      β: corrugated sheet angle (2)

	Pad 7090	Pad 5090
H(mm)	1500,1800,2000	1500,1800,2000
W(mm)	600,300	600,300
D(mm)	100, 150, 200,300	100, 150, 200,300
h(mm)	7	5
α(*)	45	45
β(*)	45	45

 Shipping Terms &Conditions



FAST SHIPPING from Qingzhou Shandong Factory!

 •Item shipped in 3-15 working days after payment is received depends on the quantity of the    order.

 •Item shipped by UPS,FedEX,DHL and others, depending on size and weight of total order.

 •Item only shipped to address listed on the invoice; Not responsible for shipping to wrong  address.

 •Tracking number will be sent to you as soon as we ship the goods.
