Home > Products > Whole poultry equipment > Automatic Poultry Equipment for Broiler Chicken
Automatic Poultry Equipment for Broiler Chicken
- 1000 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
-
Bangchi poultry equipment watering and feeding line
-
Complete Automatic Chicken Raising Equipment for Farm
-
Best sale cooling pad manufacturing/production line for cooling pad
-
Automatic Chicken Feeders And Waterers For Poultry House
-
Bangchi poultry equipment watering system and feeding system for chicken farm
-
Hottest Sale Automatic Complete Use Chicken Equipment for Farm
Product Details
| Place of Origin | Shandong, China | Brand Name | Bangchi | |
| Model Number | Bangchi Broiler |
Product Description
Automatic Poultry Equipment for Broiler Chicken
(BRAND:BANGCHI)
Automatic Poultry Equipment for Broiler Chicken:
1.Automatic feeding system
2.Automatic drinking system
3.Cooling pad system
4.Ventilation system
5.Heating system
6.Environment controller
Automatic Poultry Equipment for Broiler Chicken description:
1.Pan Feeding system
| Feed pan is unique and won design, which consis of: (1) Pan deep, use to keep feed inside feed pan. (2) Grill, used to disport chickens from each other. (3)Inside cone and adjust ring, used to adjust feed fall amount. |
| (1)Diameter of conveying pip: 45mm
(2)Material: Hot galvanized steel pipe with the zinc coating amount of more than 275 g/m2
(3)Helical spring auger from South Africa, feeding capacity: 450kg/h. |
| | V-shaped Bin ( with Hopper):
(1)Bin Volume: 115L, Hopper volume: 38L
(2)Material: Hot-DIP galvanized sheet |
| | Material level sensor from Germany: Time delay
range 0 to 2 hours. |
| | High-quality special driving reduction motor:
Power: 0.75kw/1.1kw, Voltage:380V/220V Frequency: 50HZ, Three-phase |
2.Nipple Drinking System:
1.Drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.
2.All the metal parts are hot galvanized for rust prevention.
3.Provide the right amount of water for their climate and house conditions.
4.The single-arm water receiving cup with a reasonable structure is more suitable for new culture idea.
Water Level Display Height:
| Chicken day age: | 1-7 days | 8-14 days | More than 15 days |
| Water level height: | 50-80mm | 80-200mm | 200-350mm |
3.Cooling Pad System:
Available Size 7090/5090
Note: Size could be made according to the customer.
H: Height W: Width D: Depth h: corrugation height
α: corrugated sheet angle (1) β: corrugated sheet angle (2)
| Pad 7090 | Pad 5090 |
H (mm) | 1500, 1800, 2000 | 1500, 1800, 2000 |
W (mm) | 600, 300 | 600,300 |
D (mm) | 100, 150, 200,300 | 100,150,200,300 |
h (mm) | 7 | 5 |
α (*) | 45 | 45 |
β (*) | 45 | 45 |
Sizes of Evaporative Cooling Pad can be made by buyers request

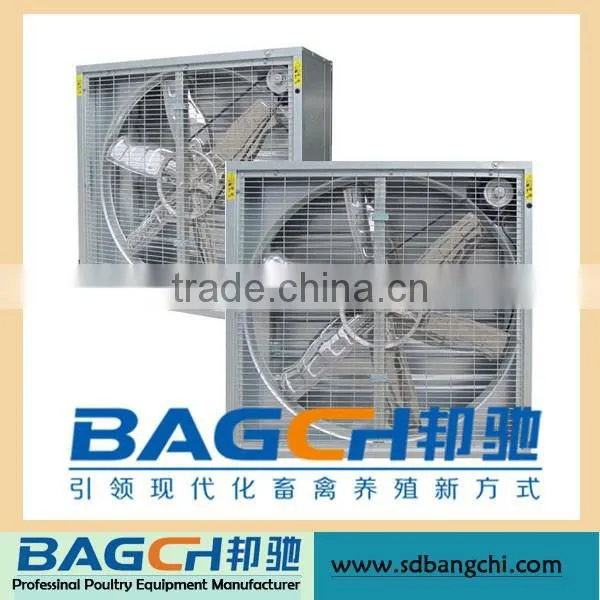

4.Ventilation System
1380mm push-pull exhaust fan parameter:
| Model | 54'' centrifugal shutter ventilation fan | |
| Fan size | 1380mm×1380mm×450mm | |
| Airflow | 44000m3/h | |
| Weight | 86kg | |
| Frame | Hot galvanized sheet, high anti-corrosive durability, zinc coating thickness 180g/m | |
| Motor | 1.1Kw 380 V 50 Hz three phase | |
| Blade material | BA430 stainless steel. Thickness 1.2mm | |
| Shutter | Hot galvanized sheet. Thickness 0.8 mm and the middle piece is 1.2mm |

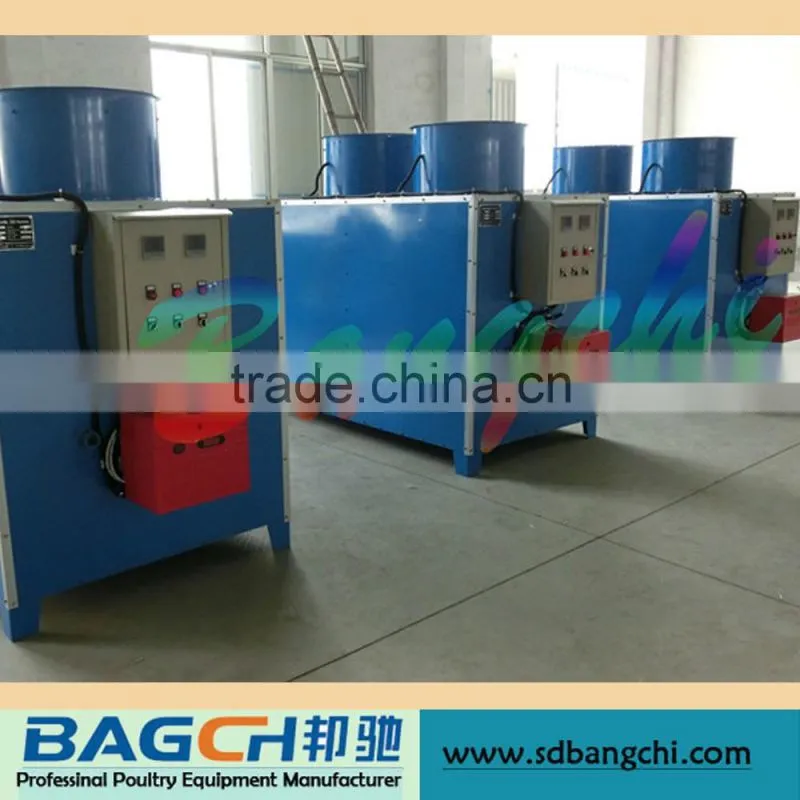

5.Heating System:
oil heater parameter:
Basic parameters | Unit | BC-5A | BC-10A | BC-20A |
Rated heat | 10 000 kcal | 5 | 10 | 20 |
Thermal efficiency | % | ≥90 | ≥90 | ≥90 |
Hot air outlet temperature | °C | 40-80 | 40-80 | 40-80 |
Rated amount of hot air | m3/h | 9800 | 18000 | 24000 |
Rated fuel consumption | kg/h | 3-6 | 6-12 | 12-24 |
For fuel | Diesel fuel | Diesel fuel | Diesel fuel | Diesel fuel |
Power | kw | 0.87 | 1.27 | 1.82 |
Dimensions | mm | 2050×920×1450 | 2120×1020×1560 | 2220×1120×1560 |
Weight | kg | 250 | 300 | 340 |
Heating area | m2 | 200-400 | 500-700 | 800-1200 |
Blower | kw | 0.75 | 0.55×2 | 0.75×2 |
Material of frame | / | Galvanized +spray paint | Galvanized +spray paint | Galvanized +spray paint |
Quality guarantee period | / | one year warranty lifelong service | one year warranty lifelong service | one year warranty lifelong service |

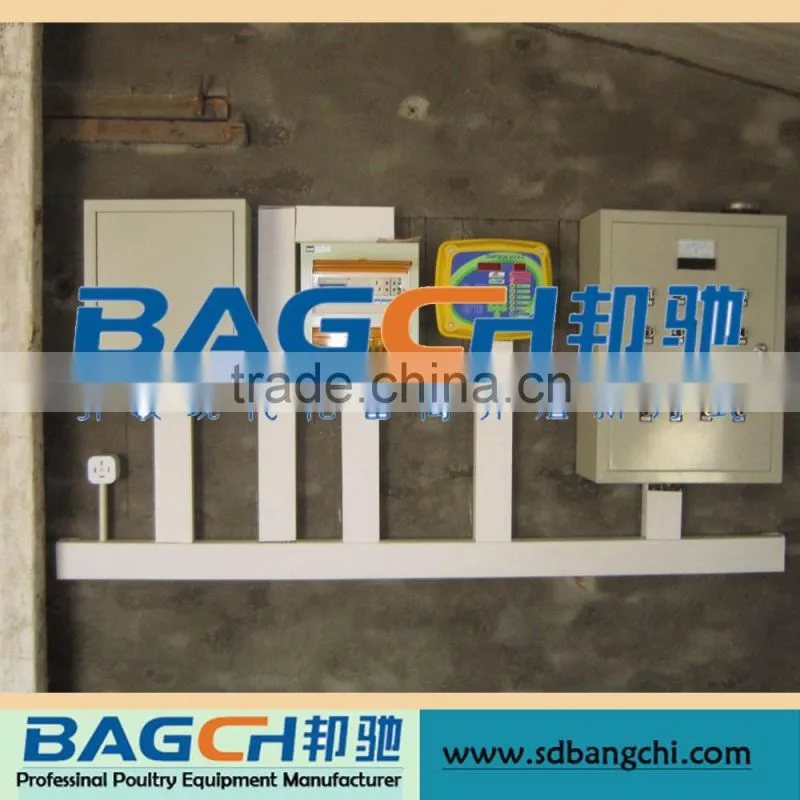

6.Environment Controller
BC-T607 control feeding system,drinking system,cooling pad and exhaust fan.
1. Poultry house site selection
2. Poultry house design and construction preparation guidance.
3. Breeding equipment installation
4. Breeding worker training
5. Breeding technology guidance
6. After-sale Service
Our company has concentrate on poultry raising equipment for many years.We already
gain many reliable customer with high quality,competitive price and superior
service.We sure any of your inquiry will get us prompt reply and highly
attention.Welcome you contact us here.You can trust us!!
1.Q:what should we do if we need whole hen farm equipment?
A:please tell us your chicken house size(length and width) and chicken quantity you will raise.
2:Q:How many feeder pan and nipple drinker on one line?
A:We have 3 and 4 pieces pan on every 3 meter and 12 or 15 pieces nipple on every 3 meter.
