electric galvanised chain link fencing

Specifications

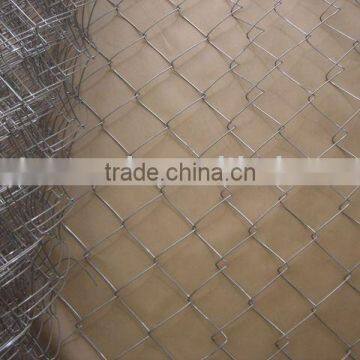

electric galvanised chain link fencing
Does not sag or roll up at the bottom
low carbon wire
safe and flexible
easy to insta

elctric galvanised Chain link fencing

Material: Low carbon steel wire or Low carbon steel galvanized Coated wire

Processing: Electro galvanized or hot-dip galvanized after weaving ; Electro galvanized or hot-dip galvanized before weaving;pvc coated chain link fence.

Specification:

We could supply with the normal specifications as follows:

Opening	1"	1.5"	2"	2-1/4"	2-3/8"	2-1/2"	2-5/8"	3"	4"
	25mm	40mm	50mm	57mm	60mm	64mm	67mm	75mm	100mm
Wire diameter	18# - 13#		16# - 8#					18#-7#
	1.2 - 2.4mm		1.6mm - 4.2mm					2.0mm-5.00mm
Length of the roll	10m - 100m(or more)
Width of the roll	0.5m - 5.0m

We can also manufacture other specifications as per your request.

        About knuckles and barbs: Fence fabric is available two ways: with knuckles on both ends. with knuckles on one end and barbs on the other end. (two barbs are formed when the chain link is twisted at one end,).

        The edge of the chain link fence: It is divided into two types. One type is a hem one, the other is a twisted one. Using special tools to make the edge heming or twisting .The hemed edge is more popular compared with the twisted edge. Customers can choose according to their own needs.

Application:
Sport ground (playground, basket ball ground, tennis ball);
Animals protection grounds (Park, zoo,wild animals protection district);
Used as fencing, decoration or protection for various facilities in industry, agriculture, infrastructure, etc.

Galvanized or pvc coated Fence Post


Fence Height cm	Fence Length(2m)					Fence Length(2.5m)
	Wire Gauge	Wire Diameter mm	Opening cm	Weight kg/piece	Fixing Pole	Wire Gauge	Wire Diameter mm	Opening cm	Weight kg/piece	Fixing Pole
					Weight kg/set					Weight kg/set
60	10#/8#	3.24	5X12	6.5	1.9	10#/8#	3.24	5X12	8.6	1.9
80	10#/8#	3.24	5X12	7.5	2.3	10#/8#	3.24	5X12	9.9	2.3
100	10#/8#	3.24	5X12	8.5	2.7	10#/8#	3.24	5X12	11.2	2.7
120	10#/8#	3.24	5X12	9	3.1	10#/8#	3.24	5X12	11.9	3.1
150	10#/8#	3.24	5X12	11	3.7	10#/8#	3.24	5X12	14.5	3.7
180	10#/8#	3.24	5X12	12.5	4.3	10#/8#	3.24	5X12	16.5	4.3
200	10#/8#	3.24	5X12	13.5	4.7	10#/8#	3.24	5X12	17.8	4.7

Characteristic:
The Diamond Mesh wire construction is:

·                       strong;

·                       with wide application

·                       convenient instation

·                       lower price

·                       safe and flexible;

·                       does not break;

·                       Does not sag or roll up at the bottom.
