Specifications

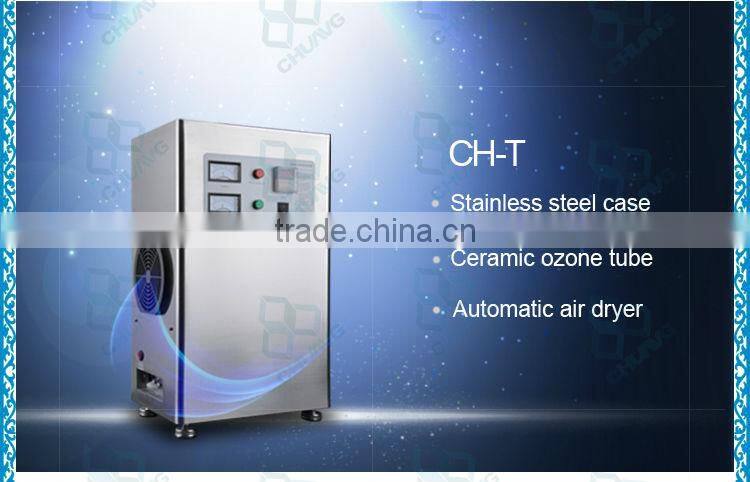

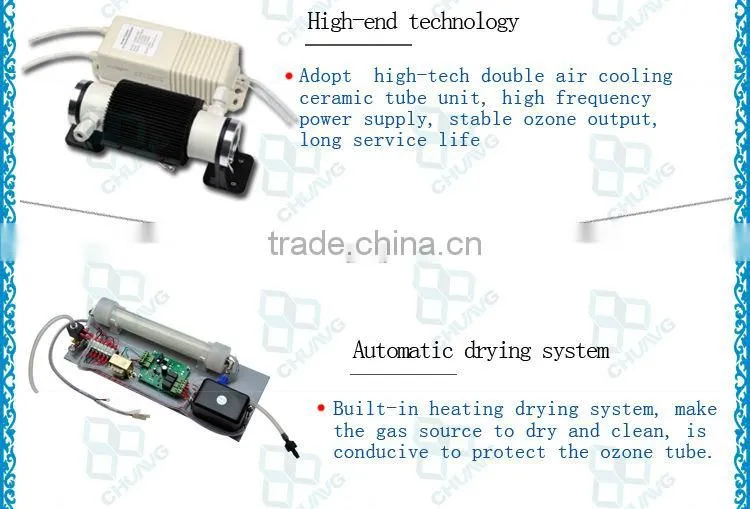

ozone generator1.auto-air dry

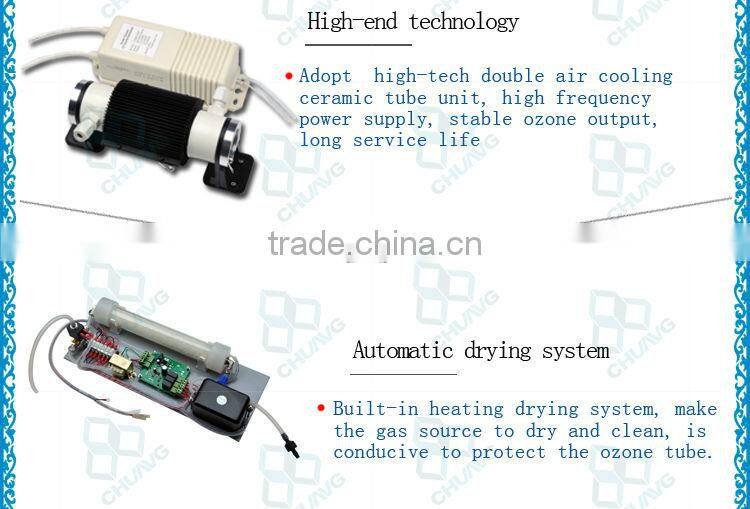

2.patented ceramic ozone part
3.small in size, it can be movable
4.air cooling ceramic tube
popular design cooling tower adjustable ozone generator
popular design cooling tower adjustable ozone generator
DESCRIPTION
WE ARE THE OZONE GENERATOR BEST SUPPLIER IN CHINA!
Specifications
Item | Unit | CH-T | ||||||
2G | 3G | 5G | 6G | 10G | 15G | 20G | ||
Oxygen flow rate | LPM | 0.5~2 | 1~3 | 1.2~3 | 1.5~3.5 | 2.4~6 | 3.6~9 | 3~10 |
Ozone concentration | Mg/L | 28~50 | 28~65 | 32~60 | 28~56 | 32~60 | 32~60 | 51~104 |
Ozone output | G/Hr | 1.5~3.0 | 4~5.0 | 4.3~5.7 | 5.0~5.8 | 8.6~14.5 | 13~17 | 18~31 |
Power | W | 115 | 135 | 160 | 185 | 260 | 330 | 400 |
Cooling method | Air cooling for internal & external electrodes | Water cooling | ||||||
Air flow rate (Suggested) | LPM | 40~60 | 50~75 | 50~90 | ||||
Compressed air pressure | Mpa | 0.025 | ||||||
Fuse of power supply | A | 3 | 5 | 5 | 5 | |||
Size | mm | 360×260×610 | 400×300×770 | 400×300×770 | ||||
Net Weight | kg | 11.25 | 11.30 | 11.50 | 18 | 20 | 35 | |
Noted:
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug.
3. 2-15G with SS box by air cooling for ozone tube,
20G with carbon steel sprayed with plastic box by water cooling for ozone tube.
4. All of model under air source with Auto-dryer, ozone capacity was tested under oxygen source.

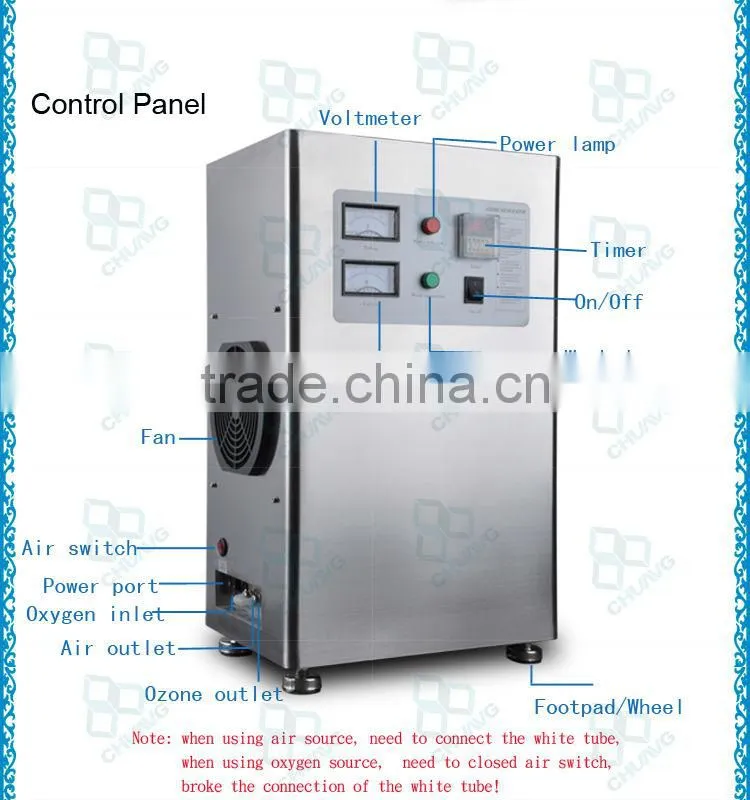

popular design cooling tower adjustable ozone generator
Applications:
1.Medical treatment industry: disinfect sickroom, operating room, medical treatment equipment,
aseptic room, etc
2.Fruits and vegetables:keep fruits and vegetables fresh and store them
3.Sea food factory: Remove smell of sea food factory and kill bacterias ,
disinfect production water supply.
4.Slaughtering: Remove smell of slaughtering and kill bacterias,disinfect production water supply.
5.Poultry factory: Remove smell of poultry factory and kill bacterias ,disinfect water for poultry feeding.
6.Commercial use in House,hotel,Office,KTV,Super Market,Fruit shop etc.
Air Purifier:Remove formaldehyde,benzene compounds,Smoke,Odors,Molds,Bactrias,Virus to fresh air.
Water purifier:Disinfect production Water supply.
7.Bottle Water,Domestic Water,Well Water,Pool Water Disinfection & Sterilization
QUALITY CONTROL
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
ABOUT US
What we do?
1.We Provide high-quality ozone generator for : Ozone generatorwholesalers
Retailers and oneline shops (Ebay, Amazon...)
2.OEM-The custom-made ozone generator are available. Upon customer's idea,
drawings, photos etc.
3.ODM-The modification of the ozone generator after customer's selection is accepted.
Why choosing us?
1.Having 7 years production experienced .We are trusty business partner.
2.Quality Controlled:Quality Control personnel check the quality at every stage of
production, from the incoming raw materials to the finished product.
3.CH-T Production Capacity: 3000 pcs per month.

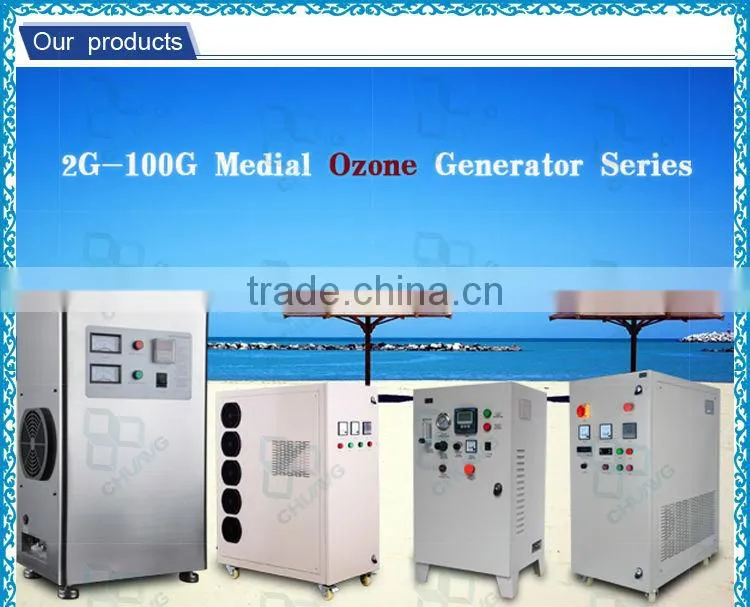

4.We have serial products: ozone tube ,UV water sterilizers, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.
5.We supply OEM service according to customers' requests and give out professional suggestions. Distributors Offer : Welcome to be our distributor .
