Specifications
The Hot selling 3L 5L 7L 10L high effective oxygen concentrator1.purity:93%
2.outlet pressure: 0.06-0.08Mpa
3.PSA technology
The Hot selling 3L 5L 7L 10L high effective oxygen concentrator
Features of oxygen concentrator:
1. Use air as raw material, no need any additional material, thus low cost.
2. Oxygen generator has a simple and compact construction, easy to operate and maintain.
3. Compared with similar products in market, it can work steady at cold temperature or even sudden changes of climate (Great change of temperature difference)
4. The oxygen concentrator generate oxygen rapidly and continuously
5. Adopt pressure sensing control mode, set up the best pressure of the oxygen bed as the switch control point, which has the function of fault warning when it detects abnormal pressure.
Configuration:

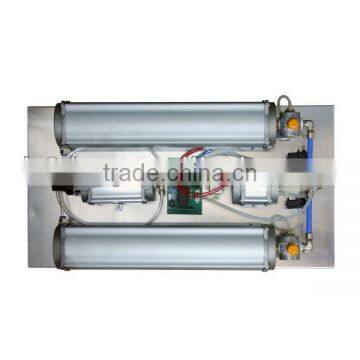

1. PSA oxygen concentrator unit
2. Oil free air compressor
3. Chiller
4. Control: Oxygen flow meter, on/off, Oxygen outlet, Fuse, Power input
5. Oxygen purity: 90%±3%
Applications:
• Welding / Brazing Furnace Enrichment
• Fermentation Glass Industry
• Fish Farming
• Ozone Generator
• Sewage Treatment Pulp & Paper
• Chemical Oxidation Rough Cutting
• Battery Manufacture Melting
• Mini-Steel Mills Cement & Lime Kilns
• Metal Spraying Copper Smelting
Item | Unit | Model | |||
CH-OX3L | CH-OX5L | CH-OX7L | CH-OX10L | ||
Oxygen output | L/min | 3 | 5 | 7.5 | 10 |
Power | W | 400 | 550 | 1100 | 1100 |
Dimension | mm | 435X365X720 | 435X365X720 | 435X365X770 | 600X365X770 |
Power supply | V/Hz | 220V | 220V | 220V | 220V |
Concentration | % | 90±3 | 90±3 | 90±3 | 90±3 |
Temperature | °C | 0-35 | 0-35 | 0-35 | 0-35 |
Relative humidity | % | ≤70%±10% | ≤ 70%±10% | ≤ 70%±10% | ≤70%±10% |
Noise | Db | ≤ 65 | ≤ 65 | ≤ 65 | ≤ 65 |
Outlet pressure | Mpa | 0.06-0.08 | 0.06-0.08 | 0.06-0.08 | 0.06-0.08 |
Weight | Kg | 35 | 37.2 | 42 | 65 |
