Original Manufacturer Coal Briquettes Punching Machine
- 500 Set / Sets per Month
- Shanghai Qingdao Ningbo Guangzhou Lianyungang
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Condition: | New | Place of Origin: | Henan, China | Brand Name: | Lantian |
| Model Number: | LT-260 | Voltage: | 220V 380V 450V | Power(W): | 11kw |
| Weight: | 3.5T | Dimension(L*W*H): | 2.4*2.4*2.6 | Certification: | CE ISO |
| Warranty: | One Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Characteristics
Coal Briquettes Punching Machine
1.Low price,High quality.
2.High briquetting pressure
3.More than 30 years experience.

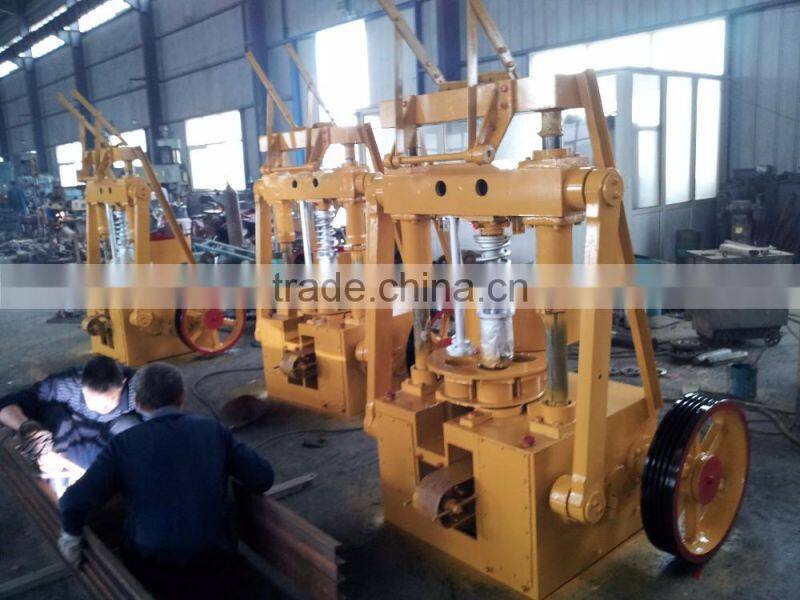

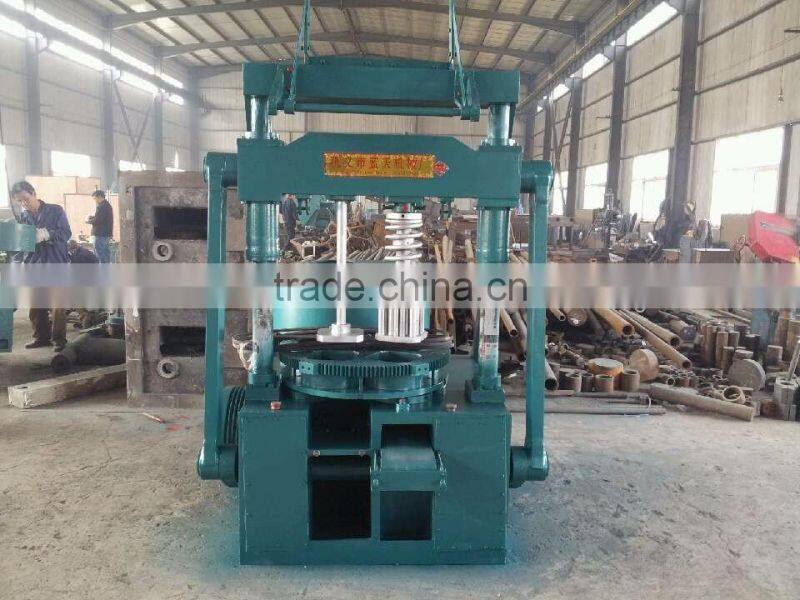

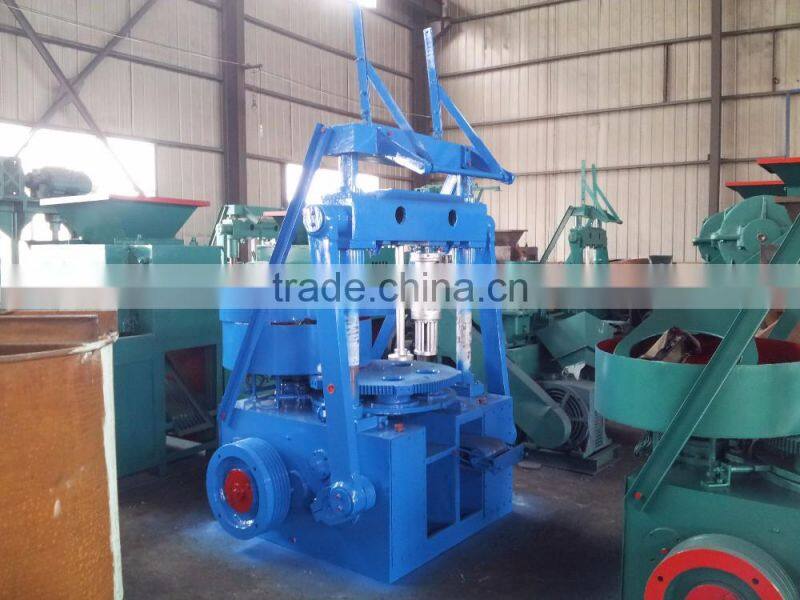

Original Manufacturer Coal Briquettes Punching Machine
| ♣ Introduce And Show The Main Machine |
 |
|
|
| Coal Briquettes Punching Machine use the powder as raw material to form different shape by mixing and extruding.The machine can change the mold easily.By switching the different shape of the mold to product a great diversity of briquette shape such as square,triangle,cylindrica and so on. Production speed can be arbitrary switching and we also can customize the mold to reach your final product request. |
Coal Briquettes Punching Machine has simple structure, including body, motor, feeding, punching, and transportation, and other five parts.
Body : Consist of platen, engine base, forming the skeleton entity. Driving parts: Consists of motor, belt pulley, gear, transmission shaft, etc. The motor make the gear Feeding part: Is composed of spindle, hopper, mixer, through the rotation of the spindle, automatic feeding and stir. Punching parts:Intermittent work, feeding, stamping, molding Transmission parts: By the transmission rack, pulley, and other components of the conveyor belt, conveyor frame can be adjusted by the adjusting screw on the elastic. |
| ♣ Show The Sample And Molds |
|
1.Characteristics of products
| Shape: shape can be round, cylindrical, square, rectangle, polygonal, hexagonal, etc. Or you can have your own ideal shape. Size: the final size is according to the shape and the machine mould, also you can decide it under certain range. Characteristics: the product is processed into high density, combustion time is long, non-toxic, smoke-free, etc. |
2.Advantage of products
| (1) Energy conservation and environmental protection,no waste gas,clean and health. (2) Inflammable,high calorific value,4000-6000calories. (3) By making high-strength aluminum alloy,durable. (4) Abundant raw materials,low cost,burning a long time. (5) Briquette machine has been widely applied and the maket is never saturated. (6) High density and easy to be ignited. |
|
|
Don't just see the finished product looks good,and the most important is main materials used in the equipment parts such as models,bearing,size,weight and so on.Choose what material is the key to affect the service life of the machine.Using copper parts in the friction force is larger. Copper and iron friction is not easy heat so that improving the service life of the Coal Briquettes Punching Machine geratly.
Look at the major manufacturers processing equipment,Professional honeycomb briquet vendors would have to have spline broaching machine(Our factory 14 years ago to invest 1.8 million imported German spline broaching machine).Spline not only cooperate closely in the structure, and small equipment noise, smooth operation, positioning precision, convenient maintenance, not easy dislocation between components. |
| Coal Briquettes Punching Machine can use for pressing the pulverized coal,ferrum pulveratum,charred coal,aluminum powder,carbon powder,slag,sludge,activated charcoal such as all kinds of powder.Widely used in powder plant,metallurgical,chemical,energy,carriage,supply heating and other industries.Energy conservation and environmental protection and transport easily,to improve the utilization of waste and also has good economic and social effect. |
Model |
Powder
| Capacity (PCS/Min) |
Weight
| Oversize (M) | Size of briquette(MM) | |
| Circle | Square | |||||
| LT140 | 7.5KW | 50 | 1.8t | 1.3*1.4*1.8 | Belowφ140 | Belowφ100*100 |
| LT160 | 7.5KW | 50 | 2.2t | 1.5*1.6*1.9 | Belowφ160 | Belowφ120*120 |
| LT180 | 7.5KW | 40 | 2.5t | 1.6*1.5*2.1 | Belowφ180 | Belowφ150*150 |
| LT220 | 11KW | 22-26 | 3.8t | 1.9*1.6*2.1 | Belowφ220 | Belowφ200*200 |
| LT260 | 11KW | 27 | 4.5t | 2.2*1.6*2.2 | Belowφ260 | Belowφ220*220 |
|
1. To crush the raw materials into powder by Crusher. 2. To convey the powder. 3. To make liquid binder for increasing the hardness of the powder by Binder Mixer. |
|
| 1. First of all the machine with plastic film 2. According to the size and weight, use wooden or metal box, fixed the machine into the box. (box materials can be used as your requirements) 3. Required of the machine parts will be placed on a fixed container to avoid collision and wear or lost. |
|
| We have also got the CE, ISO, SGS and other several patents.Our machines are sold at home and abroad praised by customers highly for exampe Indonesia, Saudi Arabia, Malaysia, India, South Africa, Canada, Australia, Russia, Spain, Greece, Pakiswait, Turkey, Egypt, Sudan, Uzbekistan, Philippines, and other countries. |
| ♣ Our services |
| 1. Before Sale: help you to set a purchase plan according to your requirement. 2. During Sale: accompany you to check the performance of the machine. 3. After Sale: Sent artisan to your place and help you with the installation. |
If you interest in this machine,click on the image to know more about information.
| Ball press machine through reducer simultaneously transmitted the power to two pressure rollers and made them rotated in opposite directions. In two pressure rollers rotation, materials naturally enter into the ball molds on pressure roller and materials pressure vary from small to large with the rotation of the pressure roller. When the material is rotated to two rollers line contact points, materials pressure has reached a peak. Under enormous pressure, the powder materials are suppressed into finished ball. |
| Screw extruder machine working mechanism is to rely on the screw rotation generated by the pressure and shear, making the material evenly mixed through the die molding; so sometimes using an extruder can simultaneously complete the mixing, molding and a series of processes , So that continuous production. |
| Biomass briquette machine use sawdust, branches, rice husk, bamboo shavings, peanut shells, sunflower seed shell, bagasse, corn cob, coconut shell and crop straw as the raw material.After crush,with the machine high temperature,High pressure forming mechanism charcoal semi-finished products,after the carbonized become a finished product of charcoal. |
| It is our latest patented product, because it has large pressure, and the pressure can be adjusted according to different raw materials, so it has best molding effect, even some raw materialss are not easy to mold. it also can press into good shapes.The whole machine includes main engine, electric control cabinet, hydraulic cylinder and outlet conveyor belt. |
Welcome to visit our factory
| Through 30 years of development and technology innovation, Lantian Machanical Plant has been developped to a professional manufacturer set design, manufacture, after-sale service as a whole. In order to meet the different requirements of customers, we designed many types of charcoal process machines, such as charcoal/coal briquette machine, shisha charcoal tablet machines, charcoal extruder machines, biomass charcoal briquette machines and the assistant equipments. |
