drip tape producing line for plastic Irrigation drip tube
No. | Item | Standard 2 |
1 | Production speed | 30-50meters/minute |
2 | Diameter of final product | 12mm, 16mm,20mm |
3 | Wall thickness | 0.4mm-1.2mm |
4 | Dripper distance | 200mm-2000mm |
5 | No. of Extruders | 2 |
6 | Main Extruder specification | 65mmx 33/1 |
7 | Co-extruder specification | 25mmx15/1 |
8 | Dripper filtering speed | 300 pieces/minute |
9 | Dripper inserting speed | 300 pieces/minute |
10 | Haul-off speed | 20-100 meters/minute |
11 | Perforating Speed | 60-180 times/minute |
12 | Perforation | Servo system |
13 | Winding speed | 10-100 meters/minute |
14 | Winding method | Automatic two-position turning |
15 | Winding motor | Servo motor |
16 | Water consumption | Circulating water system |
17 | Air consumption | 0.9 m³/min |
18 | Installation power | 85KW |
19 | Power consumption | 30KW |
20 | Dimension (L*W*H) | 30m x 2.5mx 2m |
21 | Power supply | Voltage: 380V 50 Hz Three phase five wire 24V DC |
1 | Round dripper selection system | 6 | Servo punching machine |
2 | Flat Dripper inserting system | 7 | Haul off machine |
3 |
Extruder | 8 |
Power and controlling cabinet |
4 | Vacuum calibration tank | 9 | Two-position automatic winding machine |
5 | Second water cooling | 10 | Touch-screen |

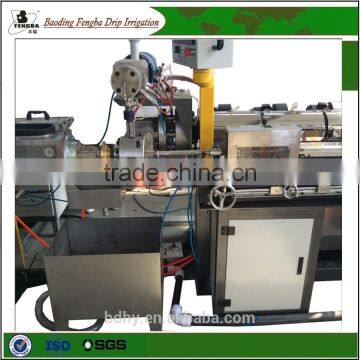

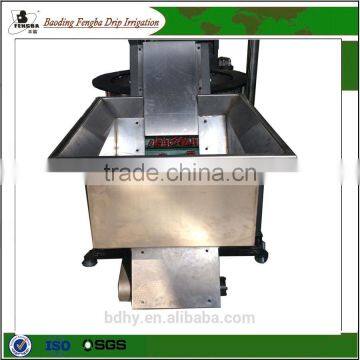

Drip tubing Production line photos:
Drip tubing products:
prefessional Drip Irrigation System factory
1. With 20 years experience in producing drip irrigation products .
2. We have own research and development equipment, so our products' prices are very competitive.
3. We can ensure the quality, because there are many kinds of testing machines and strict testing process. For the dripper, we also use the new material.
4. We have very good and comprehensive after-sales service
5. Our high quality but low prices of products have gained market and public praise from domestic and overseas clients.
Main Market
South East Asia, Middle East, Middle Asia, North Africa, Russia, Poland, South America etc.
Quality Warranty of drip irrigation System
1. We send the same quantity products free or send payment back once clients find problem when get goods.
2. We will reply you within a workday and come up with solutions within 5 workdays when we receive your claim
1.OEM is accepted
2.Special design is accepted.
3. Technical support and solution by the engineer team.
4.Test equipment available (Raw material test, during production inspection,sample inspection)
5.quality tracking&service
6.Full range of irrigation product for your choice.
7.Accept sample order.
8.Good after-sales service.
9.24 hours service,we are here,waiting for you.
