Agriculture Mosaic Flat Emitter Type Drip Irrigation Tape Making Machine

Agriculture Mosaic Flat Emitter Type Drip Irrigation Tape Making Machine photo-1
Agriculture Mosaic Flat Emitter Type Drip Irrigation Tape Making Machine photo-2

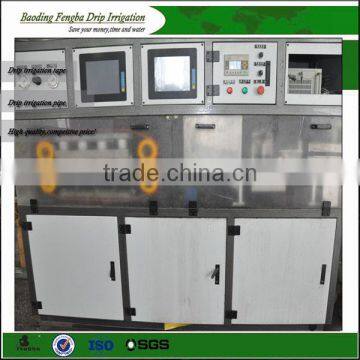

Agriculture Mosaic Flat Emitter Type Drip Irrigation Tape Making Machine photo-3

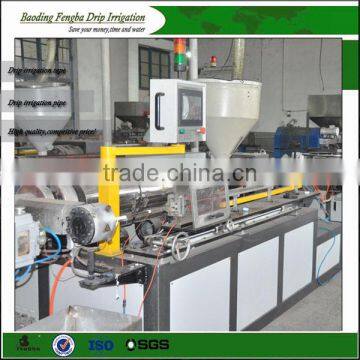

Agriculture Mosaic Flat Emitter Type Drip Irrigation Tape Making Machine photo-4

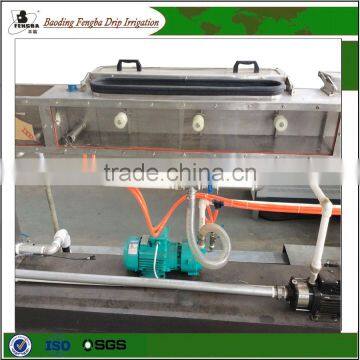

Agriculture Mosaic Flat Emitter Type Drip Irrigation Tape Making Machine photo-5
US$ 300,000 - 330,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Pipe
Plastic Processed:
PE
Payment & Shipping
Payment Methods:
Port of Shipment:
xinggang/qingdao/shanghai/ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Pipe
Plastic Processed PE
Screw Design Double-screw
Automatic Grade fully automatic
Place of Origin Hebei, China
Brand Name FENGBA
Model Number PIPE EXTRUSION LINE
Voltage 380V
Power(W) 110KW
Dimension(L*W*H) L30M*W2.5M*H2M
Weight 4tons
Certification ISO9001:2008
After-sales Service Provided Engineers available to service machinery overseas

agriculture mosaic flat emitter type drip irrigation tape making machine

Product Description



Technical specifications



No.

Item

Technical parameter

1

Production speed

80-150meters/minute

2

Diameter of final product

16mm

3

Wall thickness

0.18mm-0.60mm

4

Dripper distance

100mm-1000mm

5

No. of Extruders

3 sets

6

Main Extruder

65mmx 33/1

Continuous drippers  Extruder

45mmx 30/1

Double line Extruder

25mmx 15/1

7

Haul-off speed

200 meters/minute

8

Perforating Speed

700 holes/minute

9

Perforation

Mechanical

10

Winding speed

150meters/minute

11

Winding method

Automatic

12

Winding motor

Servo motor

13

Water consumption

Circulating water system

14

Installation power

120KW

15

Dimension

(L*W*H)

L30m*W2.5m*H2m

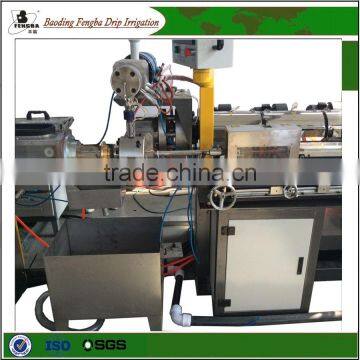

 drip tape production line photo:

agriculture mosaic flat emitter type drip irrigation tape making machine

agriculture mosaic flat emitter type drip irrigation tape making machineagriculture mosaic flat emitter type drip irrigation tape making machine

agriculture mosaic flat emitter type drip irrigation tape making machineagriculture mosaic flat emitter type drip irrigation tape making machine

Drip tape photo:



 agriculture mosaic flat emitter type drip irrigation tape making machineagriculture mosaic flat emitter type drip irrigation tape making machine



Tape specification:

Diameter

6mm,12mm,16mm,20mm

Thickness

0.15-0.6mm

Spacing

10-50cm

Flow rate

0.8L/H,1L/H,2L/H,3L/H or according to customer request

Length

2500m,2000m,1500m,1000M,500M



Components

Components:

1.Automatic dripper sorting device

2.Punching machine

3.Automatic emitter transmission machine

4.Haul-off  machine

5.Extrude

6.Electrical distribution cabinet

7.Vacuum calibration tank

8.Two position automatic winding machine

9.Second-cooling channel

10.Human-machine interface
