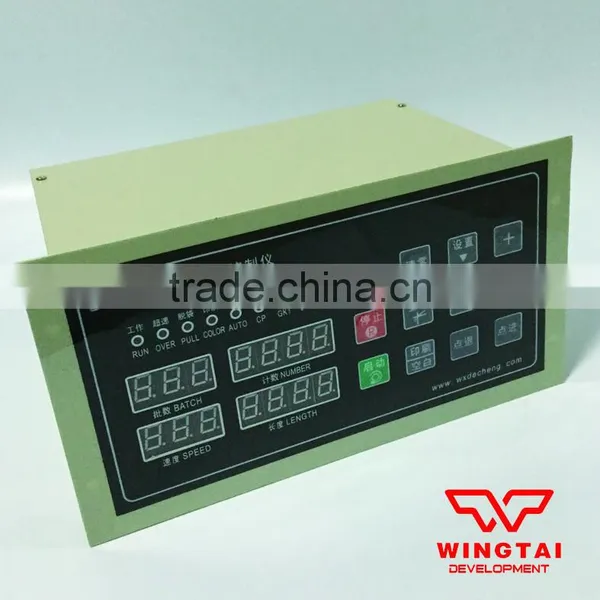

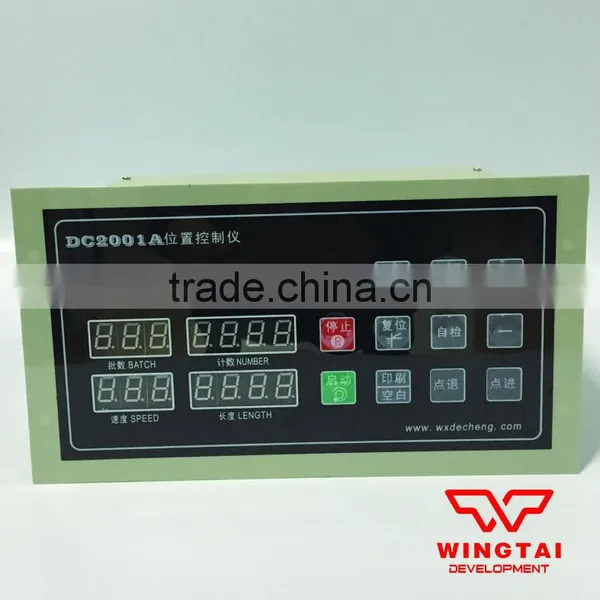

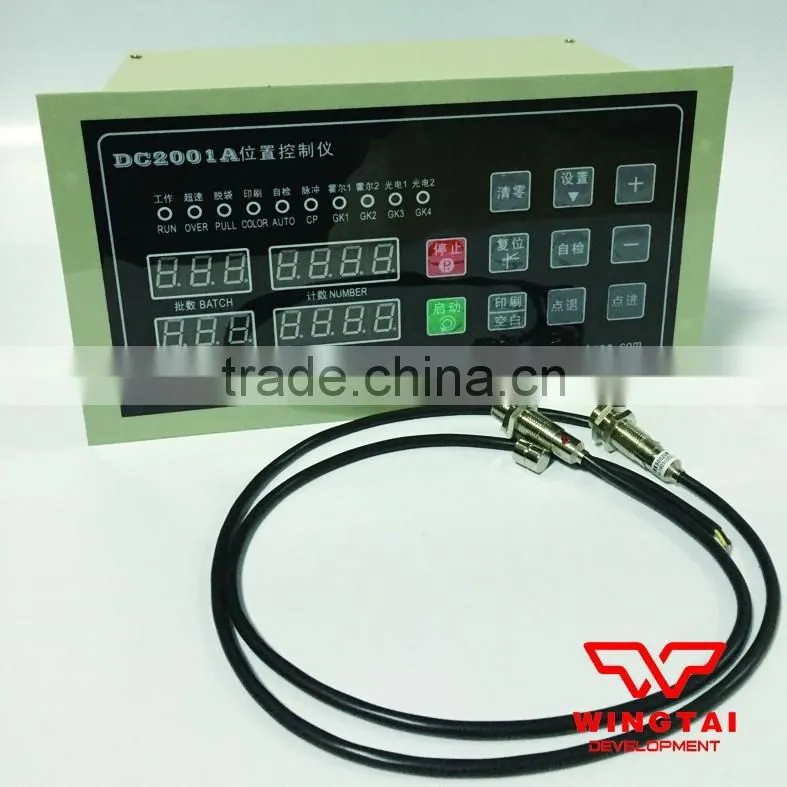

DC2001A Position Control Instrument For Printing Machinery

Name: DC2001A Position Control Instrument For Printing Machinery
Brand: Wingtai
Availability: InStock

FOB Price

USD $273 - $295 / Unit

1 Unit(Min.Order)

Supply Ability 5000 Unit / Units per Month
Port Shenzhen / Shantou
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Wingtai		Model Number	DC2001A
Usage	Other, Position Control		Theory	Optical Sensor

Product Description

DC2001A Position Control Instrument For Printing Machinery

Product Description

Single electric motor set length control system

Place of Original: China

Model number: DC2001A Position Control Instrument

Suitable industry: Printing, bag-making industries

Suitable range: Location, detection and tracking

Technical Data

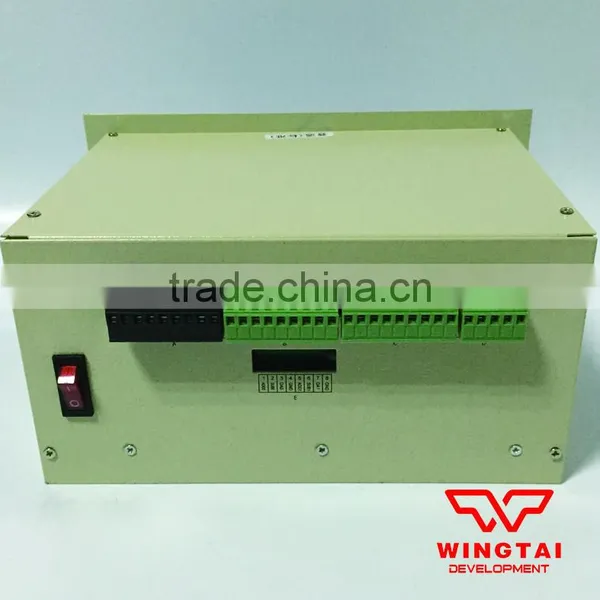

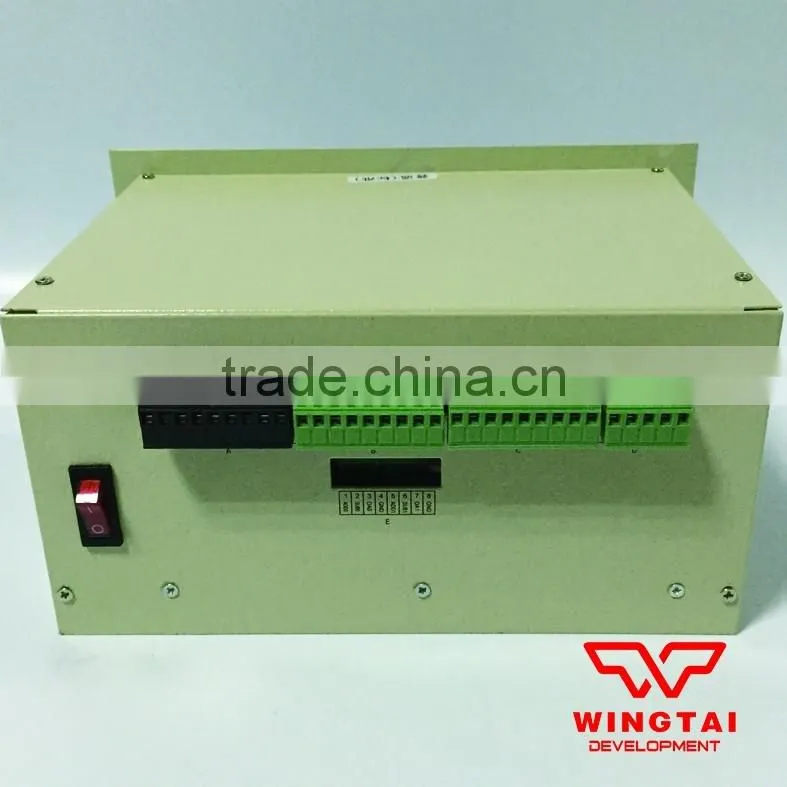

Control instrument external wiring instruction

No.	Function explain	No.	Function explain
1,2	Main machine signal (JDQ1)	19	CCW step motor turn way
3,4	Power supply AC 220V	20	CP2 step motor pusle 2
5	-24V (GND)	21	CP1 Step motor pusle 1
6	+24V	22	KRUN connect to “run” button externally
7,8	-12V (GND)	23	KSTOP connect to “stop”button externally
9,10	+12V	24	GK4 Jaming photoelectricity signal
11	BUZZ (low level output)	25	GK3 color photoelectricity signal
12	Clashing finestra signal-1 (JDQ6)	26	GK2 gk2 sensor
13	Clashing finestra signal-2 (JDQ5)	27	GK1 gk1 sensor
14	None	28	DONT inch the main machine
15	None	29	GK6 connect to “→” button externally
16	Pull signal (JDQ2)	30	GK7 Connect to “←”button externally
17	None	31	None
18	None	32	None

Note: all input /output signal for low voltage availability.

Step motor connect wiring HB-B3CD

CP connect CP1

Com connect +12V

UD connect CCW

A: step motor pin 1#

B: step motor pin 3#

C: step motor pin 5#

220V: AC 220V power supply
