Home > Products > Teflon Heat Resistant Products > Japan Nitto Hot Melt tape 903UL T0.08mm*W540mm*L10m

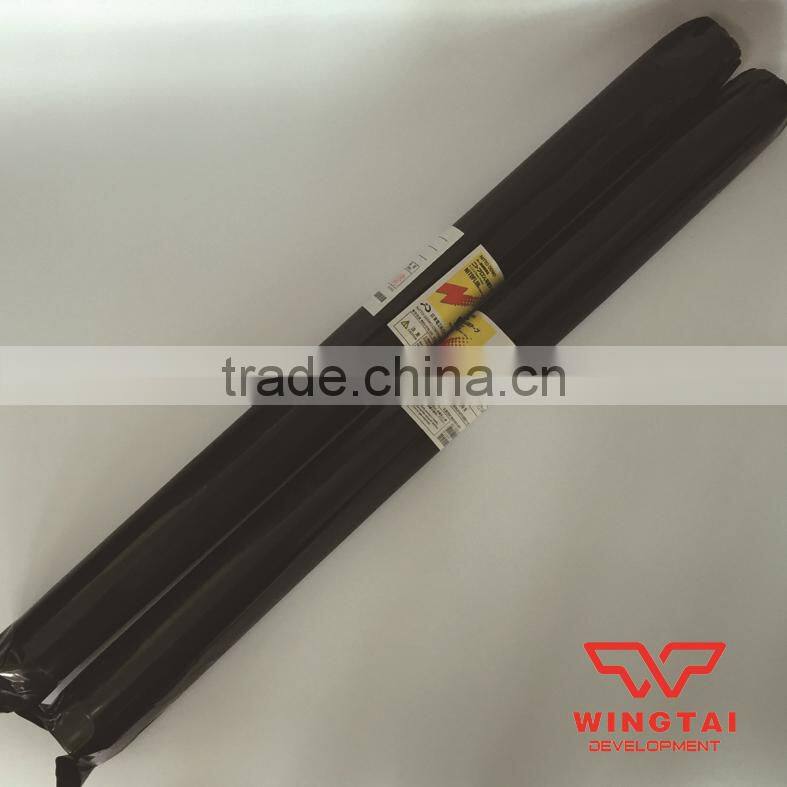

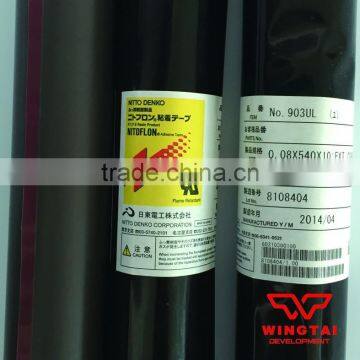

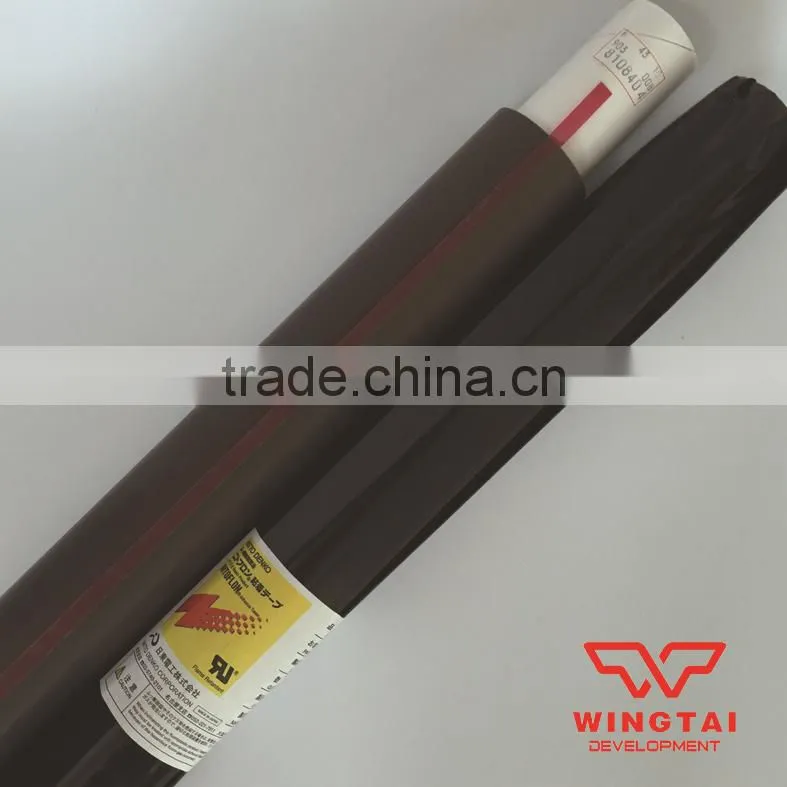

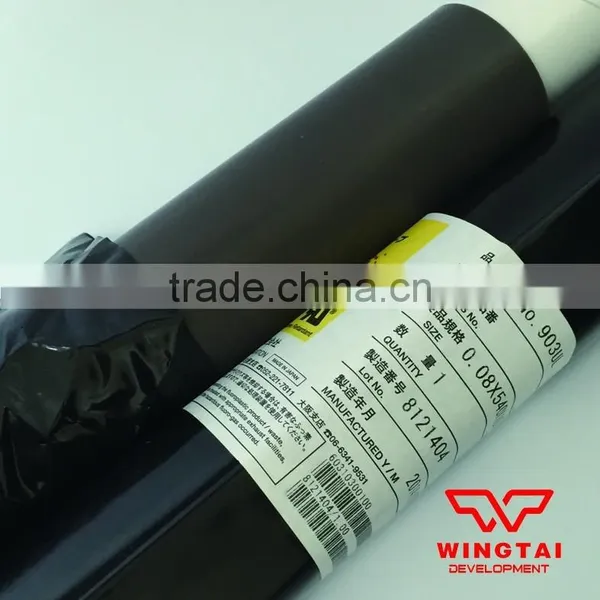

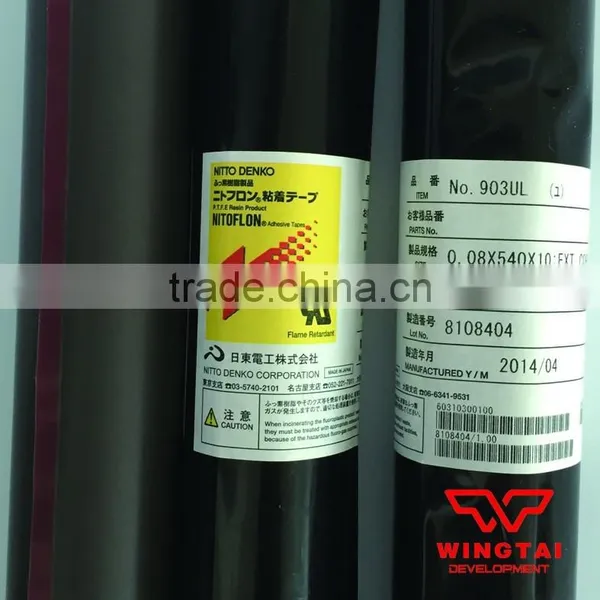

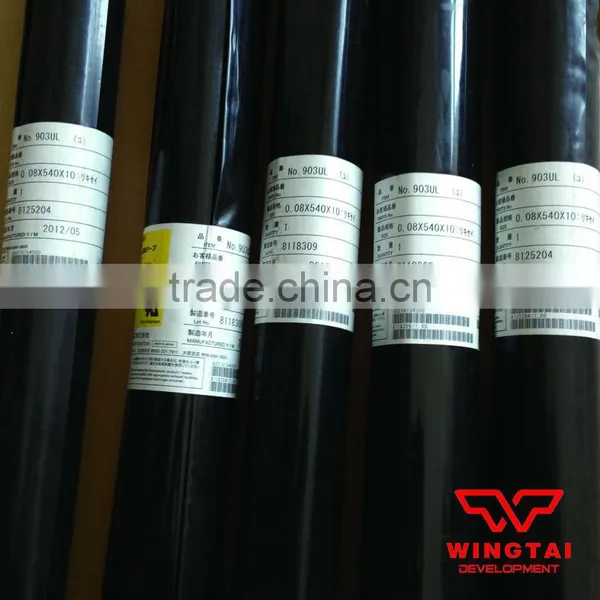

Japan Nitto Hot Melt tape 903UL T0.08mmW540mmL10m

Name: Japan Nitto Hot Melt tape 903UL T0.08mm*W540mm*L10m
Brand: Nitto
Availability: InStock

FOB Price

USD $188 - $218 / Roll

1 Roll(Min.Order)

Supply Ability 12000 Roll / Rolls per Month
Port SHANTOU/SHENZHEN
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Material:	PTFE	Use:	Masking	Adhesive Side:	Single Sided
Adhesive Type:	Hot Melt, Pressure Sensitive	Feature:	Heat-Resistant
Design Printing:	No Printing	Place of Origin:	Japan	Brand Name:	Nitto
Model Number:	903UL(0.0854010)

Product Description

Japan Nitto Hot Melt tape 903UL T0.08mm*W540mm*L10m

Product Description

Specification
	Color	Gray
	Spec.	T0.08mmW540mmL10m
	Short-term heat resistance	300℃
	Continuous heat resistance	-60~280℃
	Material	PTFE Film
	Adhesive	Silicone

Class H electrical insulating adhesive tape using fluoroplastic film.

Single surface treated polytetrafluoroethylene (PTFE) film base tape coated with silicone adhesive with excellent heat resistance. Along with great electrical characteristics, the tape has a number of excellent features, such as heat resistance, chemical resistance, low friction coefficient and non-adhesiveness.

Product Information

Features

1. UL510 certified.

2. Superior in mold-releasing and sliding property.

3. Uses the Class H insulating material.

4. Superior flame resistance.

5.Nonadhesive side of the tape offers excellent characteristics of polytetrafluoroethylene, such as electrical property, resistance to heat, weather, chemical, and water (water -shedding), low friction coefficient and non-adhesiveness.

6. Can smoothly adhere, wind, band and seal, just like regular adhesive tapes.

Applications

For heat-resistant masking.
For heat-sealing.
For heat-resistant electrical insulation.

Widely used in:The food industry, printing industry, industry, chemical industry, etc

Technical Data

Technical Data

Item	Characteristic Value
Item	No.903UL
Thickness (mm)	0.08	0.13	0.18	0.23
Tensile strength (N/19mm)	55	93	160	210
Adhesive strength*1 (N/19mm)	5.6	7.1	7.4	8.7
Rewinding force(N/19mm)	4.4	5.8	7.1	8.9
Breakdown Voltage (KV)	8	11	14	15
Temperature range(℃)	-60~280

More Sizes

More Specification

Model	Color	Substrate			Short-term heat resistance(℃)	Continuous use temperature(℃)
		Thickness(mm)	Width(mm)	Length(m)
No.903UL	Gray	0.08	13	10	300℃	-60~280℃
			15
			19
			25
			38
			50
			100
			250
			300
			450
No.903UL	Gray	0.13	19	10	300℃	-60~280℃
No.903UL	Gray	0.18	18	10	300℃	-60~280℃
			19
			25
			50
			300

Type (Nitto Denko)	Spec.
923S	T0.10mm* W38/50mm* L33m
903UL	T0.08mm* W13/15/19/25/38/50/100/250/300/540mm* L10m
903UL	T0.18mm* W18/19/300mm* L10m
903UL	T0.13mm* W19mm* L10m
973UL-S	T0.13mm* W10/13/19/25/38/50/75/100/300/600mm* L10m
973UL	T0.18mm* W19/25/50mm* L10m
975	T0.12mm* W13/19/25/30/38/50/200/300mm* L10m
970-2UL	T0.07mm* W650mm* L10m
