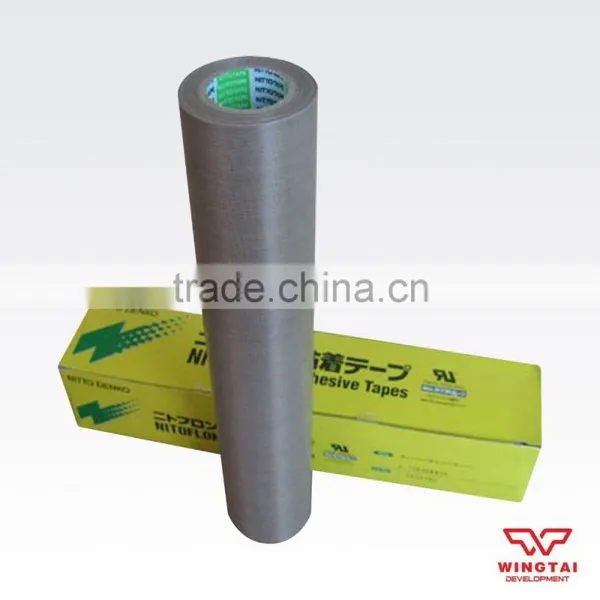

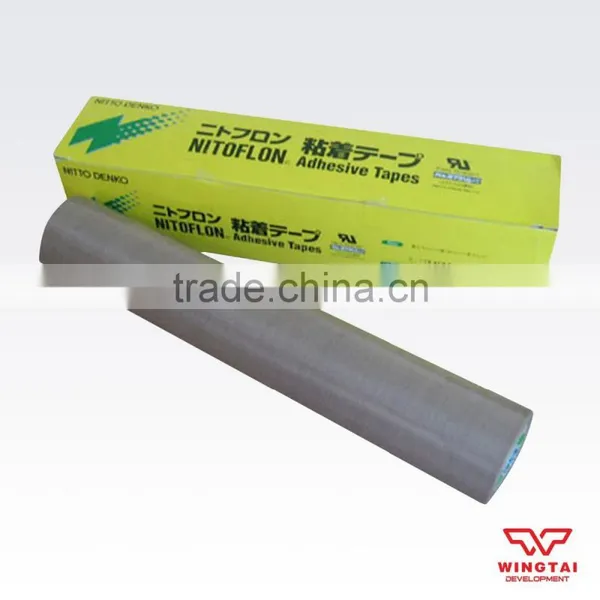

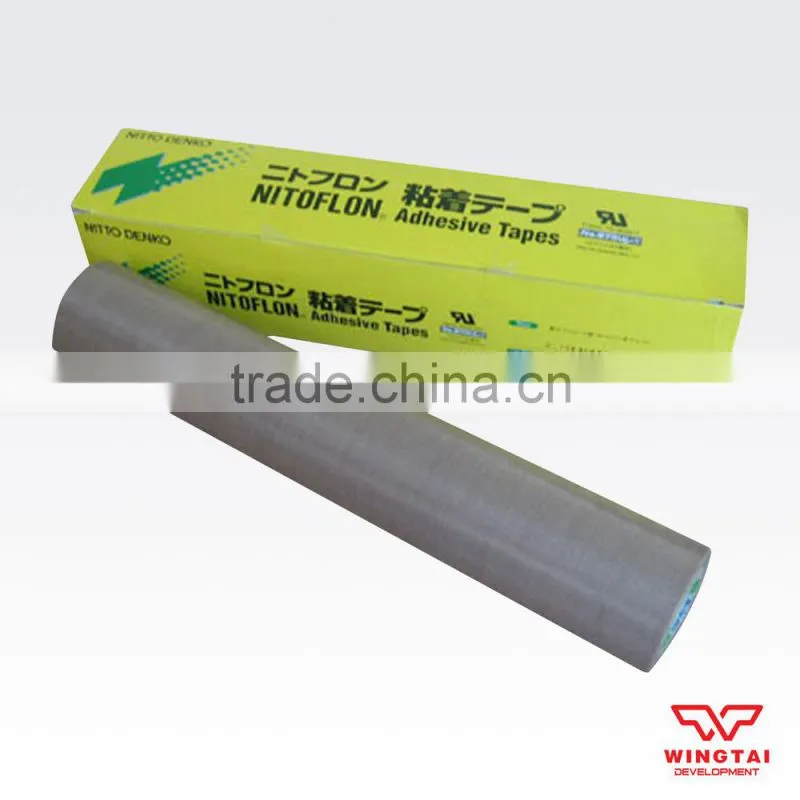

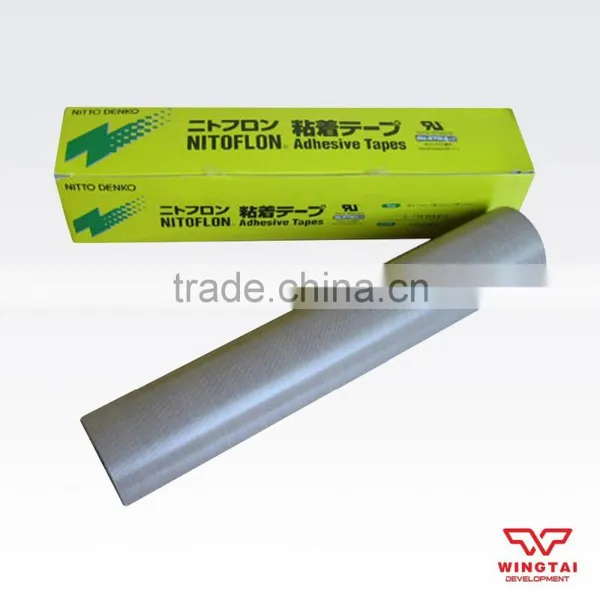

Nitto High Temperature Resistant Masking Tape

Name: Nitto High Temperature Resistant Masking Tape
Brand: NITTO DENKO
Availability: InStock

FOB Price

USD $50 - $200 / Roll

1 Roll(Min.Order)

Supply Ability 12000 Roll / Rolls per Month
Port Shantou / Shenzhen
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Material:	PTFE	Use:	Masking	Adhesive Side:	Single Sided
Adhesive Type:	Hot Melt, Pressure Sensitive
Design Printing:	No Printing	Place of Origin:	Japan	Brand Name:	NITTO DENKO
Model Number:	973UL-S(0.13*300)

Product Description

Japan NITTO DENKO P.T.F.E Resin Product NITOFLON Adhesive Tapes

Nitto High Temperature Resistant Masking Tape

Product Description

Specification
	Color		Beige
	Spec.		T0.13mmW300mmL10m
	Short-term heat resistance		300℃
	Continuous heat resistance		-60~260℃
	Adhesive Strength	25℃	6.8 N/19mm
		100℃	3.2 N/19mm
		150℃	2.2 N/19mm
	Tensile Strength		240 N/19mm
	Unwinding Force		5.9 N/19mm

Features:

Environmentally friendly products.
Has a good off models and smoothness.
Has good heat retention and dimensional stability.
Nonadhesive surface with electrical characteristics, heat resistance, weather resistance, chemical resistance, water resistance (waterproof), low coefficient of friction, adhesion and other four non-fluorinated ethylene resin possess good properties.

Usage:

• For the heat-resistant masking
• For heat sealing
• For the heat-resistant electrical insulation

Product Information

Overview:

Used in glass fiber brie infiltration tetra fluoride ethylene resin (PTFE) dispersion solution formed after the firing of the material substrate. The single-sided tape to the surface treatment, coated with silicone-based adhesive with excellent heat resistance and mechanical strength.

More Specification

More Specification

Model	Color	Substrate			Short-term heat resistance(℃)	Continuous use temperature(℃)
		Thickness(mm)	Width(mm)	Length(m)
No.973UL-S	Beige	0.13	10	10	300℃	-60~260℃
			13
			15
			19
			25
			38
			50
			75
			100
			300
			600
No.973UL	Beige	0.18	19	10	300℃	-60~260℃
			25
			50

Other Model Specs.:

Type (Nitto Denko)	Spec.
923S	T0.10mm* W38/50mm* L33m
903UL	T0.08mm* W13/15/19/25/38/50/100/250/300/540mm* L10m
903UL	T0.18mm* W18/19/300mm* L10m
903UL	T0.13mm* W19mm* L10m
973UL-S	T0.13mm* W10/13/19/25/38/50/75/100/300/600mm* L10m
973UL	T0.18mm* W19/25/50mm* L10m
975	T0.12mm* W13/19/25/30/38/50/200/300mm* L10m
970-2UL	T0.07mm* W650mm* L10m

Technical Data

Technical Data

Item		No.973UL-S	No.973UL
Thickness (mm)		0.13	0.15	0.18
Tensile strength (N/19mm)		240	590	530
Adhesive strength (N/19mm)	25°C	6.8	9.0	9.7
	100°C	3.2	3.9	4.7
	150°C	2.2	2.6	3.0
Unwinding force(N/19mm)		5.9	5.9	7.5
Temperature range(℃)		-60~260
Test Method		Compatible with JIS C 2107
