Home > Products > Teflon Heat Resistant Products > Nitto 923S 0.10mm*50mm*33m

Nitto 923S 0.10mm50mm33m

Name: Nitto 923S 0.10mm*50mm*33m
Brand: NITTO DENKO
Availability: InStock

FOB Price

USD $80 - $90 / Roll

1 Roll(Min.Order)

Supply Ability 12000 Roll / Rolls per Month
Port SHANTOU/SHENZHEN
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Material:	PTFE	Use:	Masking	Adhesive Side:	Single Sided
Adhesive Type:	Hot Melt, Pressure Sensitive	Feature:	Heat-Resistant
Design Printing:	No Printing	Place of Origin:	Japan	Brand Name:	NITTO DENKO
Model Number:	923S(0.105033)

Product Description

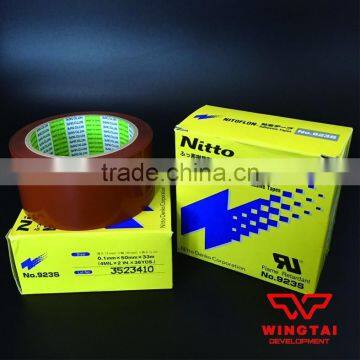

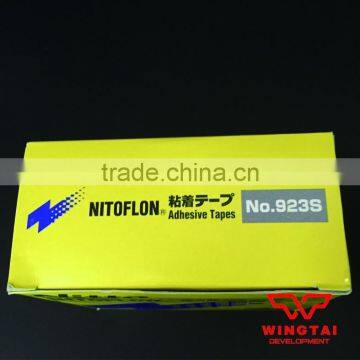

Nitto NITOFLON Electrical Adhesive Tape 923S 0.10mm*50mm*33m

NITTO DENKO P.T.F.E Resin Product NITOFLON Adhesive Tapes 923S

Product Description

Specification
	Color	Orange
	Spec.	*T0.10mmW50mmL33m*
	Backing Material	PTFE film
	Adhesive	Silicone
	Flammability Rating	Passes UL-510 Flame Test
	Short-term heat resistance	-50~300℃
	Continuous heat resistance	-50~250℃

NO. 923S is a orange PTFE tape and use oriented polytetrafluoroethylene (PTFE) film as a based material. Single surface treated and coated with a silicone adhesive can prevent with high heat and friction resistance.

Product Information

Note: Nitto tape has changed into new packing as it is showed above.

Features

1.The nonadhesive side exhibits excellent features such as desirable electrical properties, resistance to heat, weather, chemical, water (water-shedding), and anti-friction.

2. UL Rated.

3. Superior tensile strength.

4. Strong electrical properties.

Product Construction

Properties

BACKING MATERIAL	PTFE Film
ADHESIVE	Silicone
COLOR	Brown
Flammability Rating	Passes UL-510 Flame Test
	Imperial	Metric
Total Tape Thickness	3.9 mils	0.10 mm
Tensile Strength	37.7 lbs/in	128 N/19mm
Elongation	71%	71%
Dielectric Strength	11,000 volts	11.0 kV

More Specification

Model	Color	Substrate			Short-term heat resistance (℃)	Continuous use temperature(℃)
Model	Color	Thickness (mm)	Width(mm)	Length (m)	Short-term heat resistance (℃)	Continuous use temperature(℃)
NO.923S	Orange	0.10	38	33	-50/300	-50/250
NO.923S	Orange	0.10	50	33	-50/300	-50/250
