Airport baggage weighing conveyor
- 100 Set / Sets per Month
- Dalian
- T/T D/P D/A
You May Like
Product Details
| Condition | New | Type | Vertical Conveyor | |
| Material | Rubber | Material Feature | Oil Resistant | |
| Structure | Belt Conveyor | Load Capacity | Static: 150~200 kg/m Dynamic: 50~100 kg/m | |
| Place of Origin | Liaoning, China | Brand Name | LMM | |
| Model Number | BCW | Voltage | 220V or Customized | |
| Power(W) | 60HZ or Customized | Dimension(L*W*H) | Customized | |
| Certification | ISO9001 | After-sales Service Provided | No overseas service provided |
Product Description
Airport baggage weighing conveyor
1.MTTR < 10 minutes
2.Bearing: NSK Japan
3.Customized is available
Airport baggage weighing conveyor

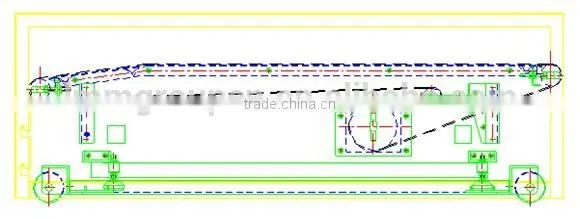

Sketch Map of Weighing Conveyor

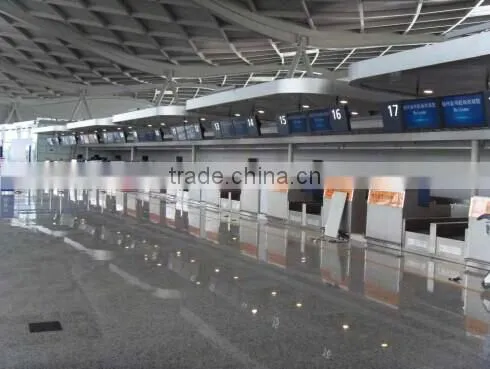

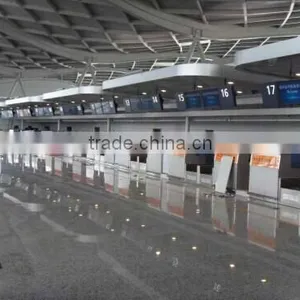

As part of the check-in and ticketing system, the weighing conveyor is the front-end equipment of the baggage handling system. On each end of the weighing/labeling conveyor, there shall be two photoelectric switches to measure the maximum size of the baggage. When the two photoelectric switches were both blinded by the moving baggage at the same time, this baggage shall be deemed as super-large baggage and shall be carried by the elevator. At the bottom of the frame of weighing/labeling conveyor, there shall be equipped with guide rail, guide pulley, leveler and locking device. The conveyor can run on the guide rail with the help of guide pulley. When the conveyor fails, it can be pulled out for maintenance.
Main Technical parameters of Weighing Conveyor
Length of the conveyor(L) | 1200mm~2000mm | Static load | 150kg/m | Side plate | GB304 |
Height of the belt surface(H1) | 330m~400mm | Dynamic load | 50kg/m | Lateral cover plate | GB304 |
Height of the whole machine(H2) | 400mm~650mm | Head roller | Φ60mm | End cover plate | GB304 |
Belt width(W1) | 450mm~1000mm | Tail roller | Φ60mm | Slinding bed board | Q235 |
Side placte spacing(W2) | 480mm~1040mm | Tension roller | Φ60mm | Fittings | Q235 |
Conveyor width(W3) | 600mm~1200mm | Electric roller | Φ113mm/Φ135mm/Φ138mm | Plug pin | Q235 |
Speed | 21m/min~30m/min | Electronic scale | AccuacyIII GB I4249.2-93 III) | Belt | Anit-skid, antiflaming, antistatic |
Noise | ≤65dB(A) (Ground clearance of 1m,1m away from the sound source, environmental noise 50 dB(A)) | ||||
Structural representation
Optional size
Belt width
450mm,500mm,550mm,600mm,650mm,680mm,1000mmm and so on as you like
Conveyor length
1200mm,1300mm,1400m,1500m,2000mm and so on
Packing & Shipping
Certification
Related conveyors
You Ask & I Answer
1.Are you a manufacturer or trader?
A: Factory + trade (mainly factories, at the same time, we operates other related products)
2.Can we visit your factory?
A: Sure,welcome at any time,seeing is believing.
3. Do you provide samples?
A: Yes, samples are available.
4.Which payment terms are you accept?
A: T/T,LC,Western Union,moneygram,Paypal are available for us.
5. Do you accept OEM?
A: Yes, we can do OEM.
6.What's the MOQ of trial order?
A: No limit,We can offer the best suggestions and solutions according to your condition.
7.How long is delivery time?
A: The delivery time will be determined according to the quantity of the order.
8.How are your products’ quality?
A: The products will be strictly inspected before shipment, so the quality could be guaranteed.
9.What is the service life of your bricks?
A: The service life of different bricks is unlike.It also depends on your using condition and method.
10.How to solve the quality problems?
A: If the products are not conform to customer samples or have quality problems, our company will be responsible to make compensation for it.
11.How about your company's certification?
A: SGS,ISO9001 and Test Report,also we could apply other necessary certification.Packaging & Shipping
