Suspended Overband Magnetic Separator For Conveyor Belt

FOB Price

USD $100 - $6,000 / Set

1 Set(Min.Order)

Supply Ability 38 Set / Sets per Month
Port QINGDAO/SHANGHAI/TIANJIN PORT
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Magnetic Separator
Production Capacity	remove 0.1-35 kg iron	Place of Origin	Henan, China
Brand Name	MS brand	Model Number	RCDA-F/ RCYB/D/C
Voltage	220V-480V	Power(W)	1.5-11.5 KW
Weight	0.7-11.3 T	Certification	ISO 9001:2008
Warranty	18 Months	After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

Export standard package with Bulk & nude by sea transporation,or wooden case, according to clients' request.

Product Description

Suspended Overband Magnetic Separator For Conveyor Belt

Introduction:

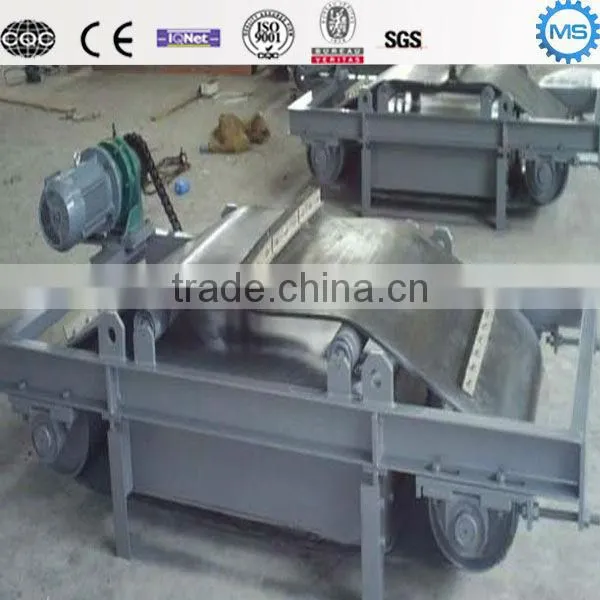

Series Overband magnetic separator/Cross belt magnetic separator is made up of permanent magnets, iron-cleaning belt, drive motor, reducing motor, the frame, two drums etc. It is widely used together with various kinds of belt conveyors for auto iron removal from non-magnetic materials in continuous duty occasions with plenty of iron. This machine is suspended above the conveyor belt for attracting ferrous elements from non-magnetic materials and clean the ferrous elements automatically.

How to work:

With its strong magnetic field, ferrous metals are attracted from your non-ferrous conveyed materials, collected on the self cleaning magnetic separator belt.The moving belt carries the collected metal outside of the magnetic field where it is then released beyond the product flow.

Selection:
The design of magnetic iron separator depends on the feed material, size, feed depth, width and speed of your belt conveyor,etc

This machine is widely used in cement, chemicals, plastics, coal,refractory , building materials, food and other industries.

Difference between permanent magnetic and electromagnetic:

According to the difference of the magnetic field source, the overband magnetic separator can divided into permanent magnetic separator and electromagnetic separator. The permanent overband magnetic separator will be produced by the rare earth-NdFeB magnet,but the overband electromagnetic separator produce the magnetic field by the electric current pass through wire coil.

Features:

Suspended magnetic separator have a deep penetrating magnetic field.

Suspended magnetic separator needs low maintenance and are easy to install and operate.

Suspended magnetic separator can function smoothly even in the hazardous environments.

Suspended magnetic separator is self cleaning, so no manual cleaning is required and reduces downtime for the end user.

Technical specifications of RCDC series:

Model No.	Belt width (mm)	Suspension height (h≤mm)	Magnetic intensity (≥mT)	Materials Thickness (≤mm)	Motor Power (≤kw)	Power (≤kw)	Weight (kg)	Fan power (kw)	Belt speed (≤m/s)	Overall dimension (mm)
Model No.	Belt width (mm)	Suspension height (h≤mm)	Magnetic intensity (≥mT)	Materials Thickness (≤mm)	Motor Power (≤kw)	Power (≤kw)	Weight (kg)	Fan power (kw)	Belt speed (≤m/s)	A	B	C	D	E
RCDC-5	500	150	60	100	1.5	1.2	1080	0.37	4.5	206	965	720	770	455
RCDC-6	600	175	60	120	1.5	2	1350	0.37		2160	1170	810	1070	575
RCDC-6.5	650	200	70	150	2.2	3	1530	0.37		2380	1370	820	888	650
RCDC-8	800	250	70	200	2.2	4	2100	0.55		2340	1420	860	923	800
RCDC-10	1000	300	70	250	3.0	6	3380	0.55		2810	1700	880	1180	1450
RCDC-12	1200	350	70	300	4.0	8	4150	1.1		3000	1850	850	1650	1500
RCDC-14	1400	400	70	350	4.0	12	5500	1.1		3280	2070	1020	1600	1410
RCDC-16	1600	450	70	400	5.5	15	6900	1.5		3600	2270	1050	1800	1500
RCDC-18	1800	500	70	450	7.5	20	8800	2.2		4380	2500	1160	2220	2850
RCDC-20	2000	550	70	500	7.5	26	10500	4.4		4600	2750	130	2470	3100
RCDC-22	2200	600	70	550	7.5	32	12900	2.2*2		5100	3100	1600	2800	3450

Technical specifications of RCYD series:

Model No.	Adaptive belt width (mm)	Suspension height (h≤mm)	Magnetic intensity (≥mT)	Thickness of materials (≤mm)	Motor power (kw)	Adaptive belt speed (≤m/s)	Weight (kg)	Outline dimensions (mm)
Model No.	Adaptive belt width (mm)	Suspension height (h≤mm)	Magnetic intensity (≥mT)	Thickness of materials (≤mm)	Motor power (kw)	Adaptive belt speed (≤m/s)	Weight (kg)	A	B	C	D	E
RCYD-5	500	150	65	80	1.5	4.5	700	1500	880	960	850	740
RCYD-6	600	175	65	120	1.5		850	1650	1030	960	900	890
RCYD-6.5	650	20	70	150	2.2		1020	1800	1030	960	980	890
RCYD-8	800	250	70	200	2.2		1320	1900	1240	1150	1050	1090
RCYD-10	1000	300	70	250	3.0		1920	2300	1450	1150	1350	1290
RCYD-12	1200	350	70	300	4.0		2900	2400	1700	1150	1500	1540
RCYD-14	1400	400	72	350	4.0		3560	2570	1920	1200	1750	1740
RCYD-16	1600	450	72	400	5.5		5960	2750	2100	1390	1840	1950
RCYD-18	1800	500	75	450	7.5		8350	3300	2300	1450	2150	2150
