Dry And Wet Drum Magnetic Separator For Gold Ore Iron Ore Dressing

FOB Price

USD $100 - $50,000 / Set

1 Set(Min.Order)

Supply Ability 26 Set / Sets per Month
Port shanghai/qingdao/tianjian port
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Magnetic Separator
Production Capacity	10-200 t/h	Place of Origin	Henan, China
Brand Name	MS	Model Number	CTB
Voltage	220/380V	Power(W)	1.5-7.5
Certification	CE ISO ECM IQNET	Warranty	12 month
After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

Nude & Bulk ,or packaged in wooden case ,as client's request.

Product Description

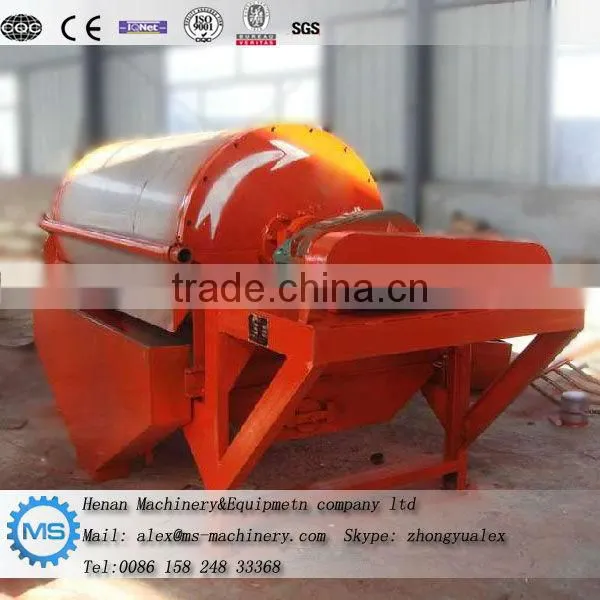

Dry And Wet Drum Magnetic Separator For Gold Ore Iron Ore Dressing

Our magnetic separator Advantages:

1)Short magnetic circuit,

2) little magnetic flux leakage

3) high magnetic intensity

4)low energy consumption

5) fine beneficiating results

6)simple structure and easy to maintain.

Application of magnetic separator :

The Magnetic Separator,Magnetic iron ore Separator,Magnetic sand Separator With Permanent Magnet can separate raw materials with different magnetic rigidities. The machine works under the magnetic force and machine force.

Magnetic Separator,Magnetic iron ore Separator,Magnetic sand Separator With Permanent Magnet are designed to recover ferromagnetic materials. The separators are available in designs and sizes to provide solutions for all applications. The heart of each separator is the magnetic system with its unique design, which has a proven record of high efficiency.

Magnetic Separator,Magnetic iron ore Separator,Magnetic sand Separator With Permanent Magnet are available in cyclic design with process vessel diameters smaller than 3mm. Wet Magnetic Separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, ilmenite, and tantalum-niobium, etc. In recent years, it is also more and more applied in purifying quartz, feldspar and nephline. Its magnetic system is a ring-shape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix.

Performance characteristics of Permanent magnetic force tumbler

Also known as magnetic pulley, the permanent magnetic force tumbler is suitable for:

1. Fter medium and fine crushing, in order to improve the richness, the magnetic pulley is used for eliminating the wall rock in the iron ore.

2. To the un-deoxidized ore and send back for re-agglomeration.

3. To eliminate iron in the ceramic industry for improving the ceramic quality.

Typical concentration process Flow Chart for magnetic separator:

Techinical parameters of Magnetic Separator:

Model	Diameter	Length of drum	Speed	Feeding size	Capacity	Power
Model	mm	mm	r/min	mm	t/h	KW
CTB6012	600	1200	<35	2-0	10-20	1.5
CTB6018	600	1800	<35	2-0	15-30	2.2
CTB7518	750	1800	<35	2-0	20-45	2.2
CTB9018	900	1800	<35	3-0	40-60	3
CTB9021	900	2100	<35	3-0	45-60	3
CTB9024	900	2400	<28	3-0	45-70	4
CTB1018	1050	1800	<20	3-0	50-75	5.5
CTB1021	1050	2100	<20	3-0	50-100	5.5
CTB1024	1050	2400	<20	3-0	60-120	5.5
CTB1218	1200	1800	<18	3-0	80-140	5.5
CTB1224	1200	2400	<18	3-0	85-180	7.5

Permanent iron sand magnetic separator in mine for wet and dry technical parameters

Model	The cylinder size	Width of the belt(mm)	Magnetic intensity	Feeding size	Capacity
Model	(D×L)(mm)	Width of the belt(mm)	Magnetic intensity	(mm)	(t/h)
XCT465	400×650	500	Customized scope	<70	5
XCT565	500×650	500	1600-4500	<70	10
XCT665	600×650	500	Gauss	<70	15
XCT68	600×800	650		<80	20
XCT758	750×800	650	Customized scope 1600-5500	<70	25
XCT7595	750×950	800	Gauss	<80	30
XCT995	900×950	800		<80	150-210
XCT10115	1000×1150	1000		<80	350-430

More photos for delivery and usage :

Each machines in the whole Beneficiation production line :

About US:

The overview of Stock house:

What we care:

1. Good Corporate reputation

2. Product Quality

3. Professional Technical support

4. Mutual benefit and win-win result business partner

Our certificate:

Why choose us ?

Pre-sales Service
Offering comprehensive technical and business consultation services;
Proposing th e most suitable scheme and equipment for our clients

Designing and fabricating targeted products according to the special requirements of clients;
Training periodically high qualified service technician.

After-sales Service
Highly inspecting equipments in every working procedure, quality comes first;
Fast & Safe Delivery;
Assisting our clients for foundation construction of equipments;
Dispatching engineers to install and debug equipments;
Training the first-line operators on site;
Regularly visit clients to solve production problems;
Providing life-long maintenance service;
Providing technical exchanging;

...
