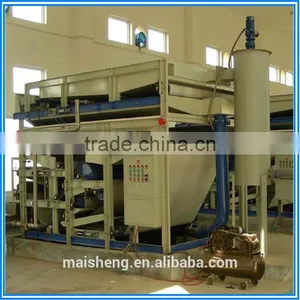

sludge dewatering machine belt filter press price
- 18 Set / Sets per Month
- All china main port
- T/T L/C D/P D/A Credit Card PayPal
-
24 hours working Belt filter press treating waste water plant
-
Programe controlled Automatic Horizontal Filter Press Manufacture
-
Sludge Feed Pump of Filter Press
-
Good Performance Mechanical Frame And Plate Filter Press
-
Good Performance Mechanical Frame And Plate Filter Press
-
Hydraulic Programe Controlled Horizontal Membrane Filter Press Price
Product Details
| Condition: | New | Automatic Grade: | Automatic | Production Capacity: | ACCORDING TO MODEL |
| Place of Origin: | Henan, China | Brand Name: | MS BRAND | Model Number: | DY SERIES |
| Voltage: | 1.5 HP | Power(W): | 2.2 kw | Weight: | 2.6-6.2 ton |
| Dimension(L*W*H): | according to model | Certification: | CE certificate | Warranty: | 12 month |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
FCL nude bulk wooden case packing into 1 pc 40 GP container, suitable for ocean shipping
Product Description
sludge dewatering machine belt filter press price
Main Types:
- Membrane Filter Press
- Hydraulic Pressure FIlter Press
- Belt Filter press
- Mechanical Filter Press
- Filter Press For Jack Clip
- Stainless Steel Plate Filter Press
- Program-controlled Automatic Filter Press
- Auto varicose/liquid collection/sldge storage furnel
Production descreption & process:
We HENAN MACHINERY EQUIPMENT COMPANY produces DY series belt filter press ,which consists of drive machine, sludge distributor, filtrating belt, tension device, automatic adjusting machine, filtrating belt washed machine, mud scraper, gravity dehydration, wedge dehydration, squeezing dehydration and frame, etc.
The process of filter is that sludge after flocculation treatment goes into sludge distributor to gravity dehydration which is a little long period with horizontal movement and small angle rising period;then filtrated sludge moves with filtrating belt and under gravity, free water is separated from flocculation material. Most of water is removed from sludge, The space in wedge dehydration is from samll size to big size and then the two filtrating belts come together to make sludge bewteen two belts under gradually growing squeezing pressure to let water discharged frequently.
Sludge is squeezed and plasma cutted through several S type orders squeezing rollers to make saturated water dehydrated from sludge which finish the dewatering process of sludge.
Features:
1.automatic feeding material
2.automic dewatering sludge
3.automatic discharging
4.automatic cloth-washing
The full screen of belt filter press machine in work-shop
Applications:
Main technical parameters:
Size | DY-750 | DY-1000 | DY-1500 | DY-2000 | DY-2500 | DY-3000 | ||
Filter width(mm) | 750 | 1000 | 1500 | 2000 | 2500 | 3000 | ||
Capacity(m³/h) Into concentration (s.s.1.5~2.5%) | 6-9 | 8-12 | 12-18 | 16-24 | 20-30 | 28-38 | ||
Dry volume(kg/h) | 110-225 | 150-300 | 225-450 | 300-600 | 375-750 | 420-950 | ||
Moisture content (%) | 63-84.5 | 63-84.5 | 63-84.5 | 63-84.5 | 63-84.5 | 63-84.5 | ||
Motor power(HP) | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | ||
Dimensions (mm) | L | 4250 | 4250 | 4250 | 4250 | 4250 | 4250 | |
W | 1630 | 1880 | 2380 | 2920 | 3420 | 3920 | ||
H | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 | ||
Weight (KG) | 2570 | 2920 | 3590 | 4490 | 5520 | 6220 | ||
Photos of our work-shop:
The CE certificate we have:
The main parts of belt filter press:
The detailed photos of belt filter press:
Services:
Pre-sales Service
- Offering comprehensive technical and business consultation services;
- Proposing th e most suitable scheme and equipment for our clients;
- Designing and fabricating targeted products according to the special requirements of clients;
- Training periodically high qualified service technician.
After-sales Service
- Highly inspecting equipments in every working procedure, quality comes first;
- Fast & Safe Delivery;
- Assisting our clients for foundation construction of equipments;
- Dispatching engineers to install and debug equipments;
- Training the first-line operators on site;
- Regularly visit clients to solve production problems;
- Providing life-long maintenance service;
- Providing technical exchanging;
What we need to know:
In order to give you a responsible quotation, Plesae inform us the following information:
1). What's the material you are going to deal with?
2). What's the size of solid ?
3). What's the granularity of the final products are you going to achive?
4). What's the capacity per batch(L) you are going to achieve?
5) . What's the solid percentage (%) ?
6). What's the filter temperature?
7). What's the PH value ?
8). What's the power? 380V50Hz3Phs?
Our engineers will suggest you the most suitable one according to your information.
...
Company Profile
HENAN MACHINERY & EQUIPMENT COMPANY LIMITED is a manufacturer of machines with well-equipped testing equipment and strong technical force.We own import & export rights and mainly produces large and medium-sized mining machinery, refining equipment,briquetting machine and girder transporting vehicle. There are 6 branches company and a research institute,Now, We integrate the research, development, production, and sale together.
Our office is located at No. 1202, Floor 12, Unit 1, Bldg. No. 24, Shangwu Neihuan Road, Zhengdong New District.Our headquarters, covering 65,000 square meters,owning more than 60 sets of heavy processing equipment There are more than 800 workers including 48 administrators with secondary and senior occupational titles and engineering technicians in our head office.
We lay much emphasis on the quality and clients. We serve clients
with the quality guideline of being responsible for every working procedure,product and client. All of the products have passed the authentication of ISO9001.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in machinery and other industries.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs,sales to Iran, Pakistan, India, Vietnam, Singapore, Russia,Australia and have long-term customers to cooperate with us.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
