All Closed Structure Industrial Flour Sifter/vibration Machine/separation Machine

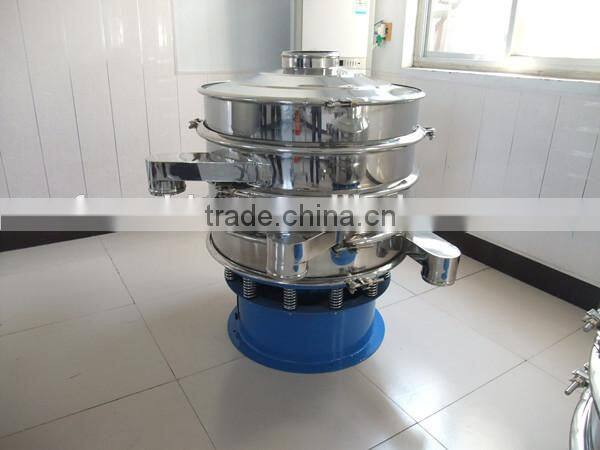

All Closed Structure Industrial Flour Sifter/vibration Machine/separation Machine photo-1
All Closed Structure Industrial Flour Sifter/vibration Machine/separation Machine photo-2
All Closed Structure Industrial Flour Sifter/vibration Machine/separation Machine photo-3
US$ 1,300 - 9,300 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Circular, industrial flour sifter
Application:
Other, industrial flour sifter
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Circular, industrial flour sifter
Application Other, industrial flour sifter
Place of Origin Henan, China
Brand Name Furui
Model Number FR-1000
Voltage 220V/380V or as you required
Power(W) 0.75KW
Dimension(L*W*H) 1160x1160x950(mm)
Weight 350KG, 350Kg
Certification CE&ISO, CE/ISO
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas



all closed structure industrial flour sifter/vibration machine/separation machine

We adopted the new type vertical motor which can make the movement into the 3-D movement:  horizontal, vertical and incline movement and then pass the movement to the screen surface.While adjusting the phase angle of hammers at upper and lower ends of motor, the movement path of material on the screen surface can be changed.

all closed structure industrial flour sifter/vibration machine/separation machine

Function



1.Classification

Anyone of our products can screen and separate precisely and continuously Multi—layer type can screen and separate five groups of different particles once,and ensure low percentage of undersize and oversize mixture.It is suitable for dry materials.

2.Filtrating of Specific Gravity

The mixture of solid and liquid can be separated effectively by single or multi—layer type into different grade materials.

3.Screen the impurity

  industrial flour sifter/vibration machine/separation machine can quickly separate a few oversize or undersize particles from a quantity of material.

 all closed structure industrial flour sifter/vibration machine/separation machine



  Application



Chemical industry:resin, powder, paint ,fine powder ,soda , citric acid

Ceramic industry:alumina, quartz sand, slurry, glaze and pigment

Foodstuffs industry:sugar, salt, alkali milk, powder, soybean milk, yeast

Papermaking industry:black and white liquid paper, pulp, waste water recycle

Metallurgy:metal powder, welding rod powder

Pharmacy:Chinese medicine powder, western medicine powder

Pollutant treatment:rubbish waste, oil animal, droppings

all closed structure industrial flour sifter/vibration machine/separation machine

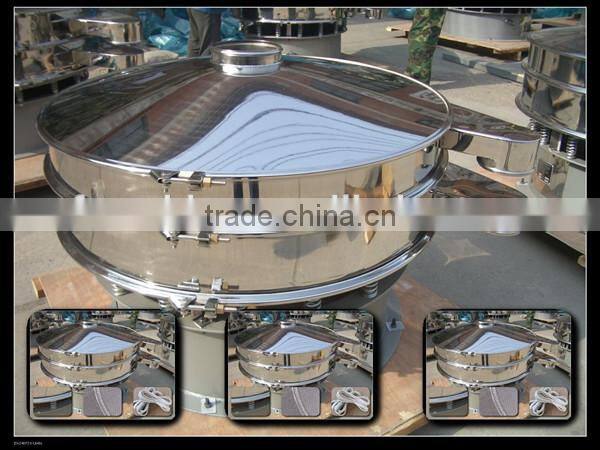

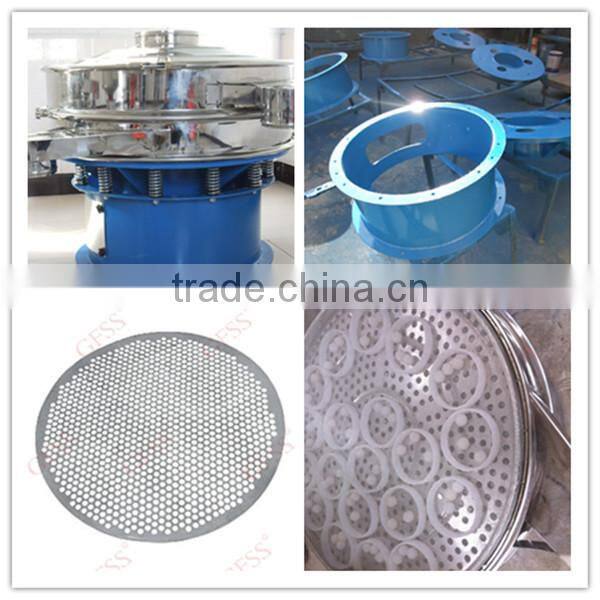

Detail picture

 all closed structure industrial flour sifter/vibration machine/separation machine

Technical parameters



Model

Layer

Power(KW)

Sieving Diameter(mm)

Dimension

L x H x W(mm)



FR-400

1S





0.18





350

580 x580x560

2S

580x580x670

3S

580x580x780



FR-600

1S





0.25





550

800x800x750

2S

800x800x890

3S

800x800x1030



FR-800



1S





0.55





750

900x900x750

2S

900x900x890

3S

900x900x1030



FR-1000

1S





0.75





920

1160x1160x810

2S

1160x1160x950

3S

1160x1160x1090



FR-1200

1S





1.1





1120

1360x1360x885

2S

1360x1360x1050

3S

1360x1360x1275



FR-1500

1S





1.5





1420

1850x1850x990

2S

1850x1850x1185

3S

1850x1850x1380



FR-1800

1S



2.2



1720

2200x2200x1050

2S

2200x2200x1250

3S

2200x2200x1450

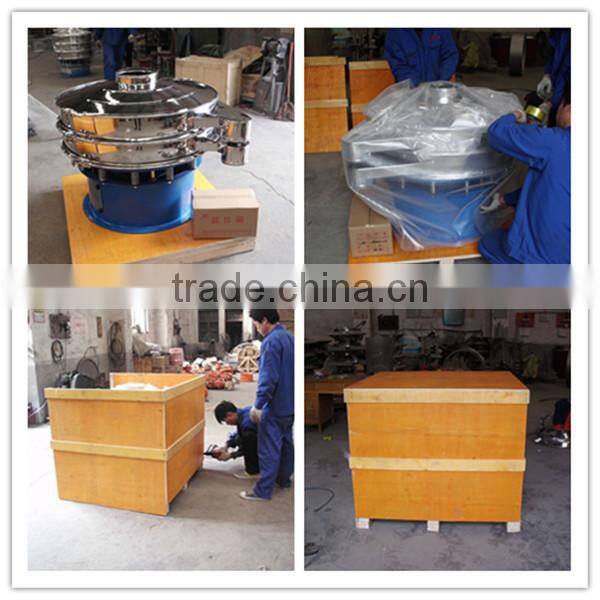

Packaging & Shipping

  Packing  with wooden case/plywood; Or with container based order quantity.

 all closed structure industrial flour sifter/vibration machine/separation machine

Company Information

   Founded in 2011,ZhengZhou Furui Machinery Equipment Co.,Ltd specializes in various kinds of machinery,such as food processing machine.woodworking machinery .food&beverage processing machinery,agriculture machinery ect.Our company is located in henan province zhenzhou city .It is adjacent to the zhengzhou xinzheng international airport and Zhengzhou free trade zone which enjoy a convenient transportation.



all closed structure industrial flour sifter/vibration machine/separation machine



Our team

all closed structure industrial flour sifter/vibration machine/separation machine



our certification

all closed structure industrial flour sifter/vibration machine/separation machine



our contact way

all closed structure industrial flour sifter/vibration machine/separation machine



FAQ



1.How does the machine fit our voltage?

before shipping screening machine/sand screening machine/2014 xxnx hot vibrating screen price in china ,our sales will confirm with the customers about the voltage.



2.How can i buy this machine?

first talk all machine details with our sales person, then talked abt the pice, after confirming the prices.

you can choose the payment terms TT/Escrow/Western Union/Paypal etc.

then you arrange deposit, after gettting the deposit, we produce the machine.





3.How can i use this machine?

we have english manual when ship the machine.

If you like this machine, pls kindly send us inquires!!
