Cost-Effective Transparent Detergent/Laundry/Toilet Soap Bar Making Machines
- 50 Set / Sets per Month
- Shanghai/Qingdao/Dalian/guangzhou and so on
- T/T L/C D/P D/A Credit Card PayPal
- Automatic Soap Production Line, Laudry Bar Soap Making Production Line
- Different Kinds Of Soap Making Machines, Soap Completed Production Line
- Laundry Bar Soap Making Machinery/Toilet Soap Maker Machine
- Small Scale High Appearance Different Capacity Bar Soap Making Machine For Sale
- Different Capacity And Weight Soap Bars Making Machinery, Toilet Soap Finishing Line
- Automatical Whole Set Toilet Soap Making Production Line, Soap Manufacturing Plant Machine
Product Details
Condition: | New | Mixer Type: | Screw | Product Type: | Soap |
Application: | Powder | Additional Capabilities: | Milling | Place of Origin: | Henan, China |
Brand Name: | WHIRLSTON | Model Number: | WHR0500 | Max. Loading Capacity: | 200-20000kg |
Voltage: | 220V/380V | Power(W): | 7.5KW | Dimension(L*W*H): | Accordingly |
Certification: | CE,ISO | Warranty: | 12months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Automatic Soap Production Line, Laudry Bar Soap Making Production Line
Introduction :
1. This laundry soap production line take soap noodles as raw materials.
2. The production starts with mixing soap noodles and perfume.
2. Then the mixed soap noodles enters in the three roller mill by conveyor belt, where soap thin sheets
are made.
3. The soap thin sheet then converted into desired long strip soap by the plodder machine.
4. Then the long strip soap are cut into the soap bars required size by cutting machine(there are two kinds of
cutting machine.One is mechanical.The other is automatic).
5. Finally, the soap bars gets packed by packing machine if needed.
6. Soap bars can be made 60g,120g,200g,260g,and so on
Features :
1. The finishing lines of Series for toilet and translucent soap bring together all components that are most reliable,
most durable, supplied by the most famous vendors in the world.
2. The mechanical design is tend to be simplified, more robust, low energy consumption, low off-stream rate, easy to be maintained ,more people-oriented and with good view both outside and inside of the machines.
Advantages
1.Full automatic production line
2.Capacity for 300-800kg/h
3.Soap size depends on client demands
4.Good performance & high efficiency
Machine parameter :
Description | Specification | Power | Frequency | Voltage | Function |
Trio miller | 1350*1670*1050mm | 7.5kw | 50Hz | 380v | rubbing soap material |
Semi-finished product conveyor | 4500*730*1650mm | 2.2kw | 50Hz | 380v | convey soap pieces |
Double-screw vacuum plodde | 3750*900*2100mm | 24.5kw | 50Hz | 380v | vacuum ploddering |
Vacuum pump | -- | 1.5kw | 50Hz | 380v | vacuum bubble pumping |
Printing-cutting machine | 800*300*1000mm | 3KW | 50Hz | 380v | cutting and printing |
Products conveyor | 3000*500*1000mm | 0.75kw | 50Hz | 380v | Convey products |
Stripping machine heater | -- | 2.5kw | 50Hz | 380v | pre –heating ram head |

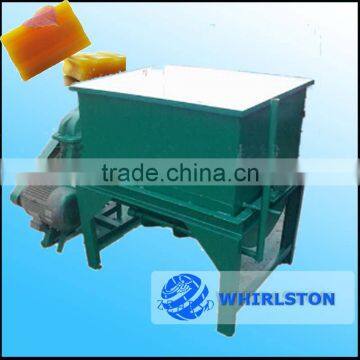

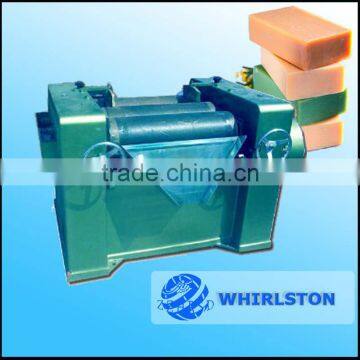

Machine related picture :
c
Finally product samples :
Established in 1992, we are professional manufacturer focused on the oil&soap machines.
Our chief engineers have been in this soap industry for over 10 years.
We know well not only how to manufacturer the machines, but also how to operate the machine to product the good quality soap.
We supply our clients a full range of technique assistance and make sure every client , no matter new joined or experience, can built & operate their own soap plant well. We will see to each client to get high profit by our machines.
1, We help you to figure out the most suitable and competitive soap product lines for your aimed market.
2,We help you to make the drawing of workshop building and equippment layout.
3, We supply you the good quality and stable performance soap machines , spare parts and accessories, that is the turn-key project.
4,We send our professional engineers to your plant for machine installation, staff training, etc.
5, We offer consistant technique surpport during the whole life-span of our mchines.
1, Q: Soap industry production process?
A, Basically, the soap production need 2steps:
a, using all kinds of oil&fast as material to produce semi-finished soap noodle;
b, using seme-product soap noodle to produce end bar soap.
2, Q:What is the kinds of the soaps?
A: For convenience, we separate the soap into two kinds, toilet soap for washing hand&taking bath, herbal soap, hotel soap, antiseptic soap are included;
The second kind is laundry soap for washing clothes, etc.
3,Q: What kind of oil is suitable for soap production?
A: All kinds of vegetable oil and animal fats are usable, palm oil, cotton seed oil, tallow oil, coconut oil, sunflower oil, etc.
4,Q: What is the floor of the workshop size?
A: For oil line: 35*7m with height 7m;
For soap noodle line: 25*3m with height 4m.
5,Q: What is the formula?
A: Raw material is oil, caustic soda and salt; semi-product is soap noodle, perfume and color.
Accurate formula based on your local market’s request is available after confirmation of order.
6,Q: How about the Engineer and technique support?
A: 1, We would send engineer overseas for machine installation, staff training and production test running, till your own staff can operate the machine well and product out qualified soaps.
2, During the life-span of our machines, we should give consistent technique support and service, and we are pleasure to be on service of you.(24hours on line)
Please feel free tell us the motor power you wanted,and other request,we promise to give you more detailed information,and would be more that happy to help you in any way we can.
