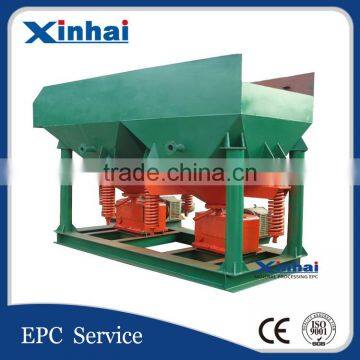

Good supplier sawtooth wave jig , sawtooth wave jig with competitive price
- 70 Set / Sets per Month
- Qingdao China
- T/T
You May Like
Product Details
| Condition | New | Type | Gravity Separator | |
| Production Capacity | 1~20t/h | Place of Origin | Shandong, China | |
| Brand Name | Xinhai | Model Number | LT | |
| Voltage | depend on the model | Power(W) | depend on the model | |
| Dimension(L*W*H) | depend on the model | Weight | depend on the model | |
| Certification | ISO 9001, CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Good supplier sawtooth wave jig , sawtooth wave jig with competitive price
sawtooth wave jig— Product advantages
1.Large capacity
2.Jigger is able to process ores with a wide range of particle size
3.The operation and maintenance are very simple
sawtooth wave jig— Product feature
Jig has advantages as follows: stepless speed regulation; the machine vibrates evenly and the minerals can be processed uniformly; it has remarkable adaptability and is especially good at handling medium and fine minerals; low water consumption; low maintenance.
sawtooth wave jig— Product application
It is mainly used to handle placer gold, tungsten, tin, hematite and beach placer.
sawtooth wave jig— Product principle
Sawtooth wave jig is revised and manufactured, based on the stratified theory and the adequate analysis of other conventional jigs. The jigging pulsation curve----produced by sawtooth wave jig----is in the shape of sawtooth wave which makes upward water flow quicker than downward water flow. The feature that upward time is shorter than downward time solves the problem that time and action of upward/downward water flows. This breakthrough dramatically amplifies the loose degree and mitigates suction action, which facilitates precipitation of coarse ores and improves ore recovery rate.
sawtooth wave jig— Technology parameter
type | model | length× width | Jigging Chamber area | General Area of jigging Chamber (m2) | Stroke Coefficient | Diaphragm stroke | The maximum Feed size | Processing capacity | Water consumption |
Lateral driven | LTP- | 450×300 | 0.135 | 0.27 | 0.58 | 0~25 | 12 | 2~6 | 4~10 |
Bottom driven | LTA- | 500×500 | 0.25 | 0.5 | 0.5 | 0~26 | 5 | 1~5 | 4~20 |
LTA- | 1000×1000 | 1 | 2 | 0~25 | 5~15 | 20~60 | |||
RevibratingRe- | 0~5 | 2~10 | 4~5 | 40~45 | |||||
Side driven | LTC- | 900×600 | 0.54 | 1.08 | 0.56 | 0~50 | 12 | 6~9 | 40~60 |
2LTC- | 900×700 | 0.63 | 2.52 | 0.48 | 5~15 | 20~90 | |||
2LTC- | 1200×900 | 1.08 | 4.32 | 0.49 | 7~25 | 60~120 | |||
2LTC- | 600×(300~600) | 0.2~0.34 | 2.16 | 0.68~0.40 | 5 | 3~6 | 20~40 | ||
2LTC- | 900×(600~1000) | 0.58~0.86 | 5.76 | 0.52~0.35 | 10~20 | 80~120 |
Xinhai mining was established in 1993.And was the pioneer of China beneficiation industry.Our company could provide mining machine more than 600,and have the most equipment in China.At present,Xinhai business includes Mineral Processing EPC,Wear-Resistant Rubber,LFC Machinery,and Mining Investment.
this is our factory and our office building.
this is our laboratory and laboratory data.
Our customers come from all over the world, such as Xinhai EPC project ,Africa Mail 800t/d gold; Xinhai Transformation Project, Indonesia PT.NEM Gold Mine as so on. We have a lot of successful cases in America, Russia and Africa .Also we have Zimbabwe Office,Sudan Office and Indonesia Office. We will give you the best service.
this is our project in Africa.
Q:Hi, are you mining machinery manufacturer?
A:Yes, we can also provide amples test, mine design, equipment manufacture, after-sale service, etc.
Q:which country have your products been exported?
A:Many country, such as India, Ethiopia and so on. And our company has agencies in Zimbabwe, Sudan and Tanzania.
Q:Can you do mineral processing test?
A:Yes, not only can do it in your country, also can back to our company
