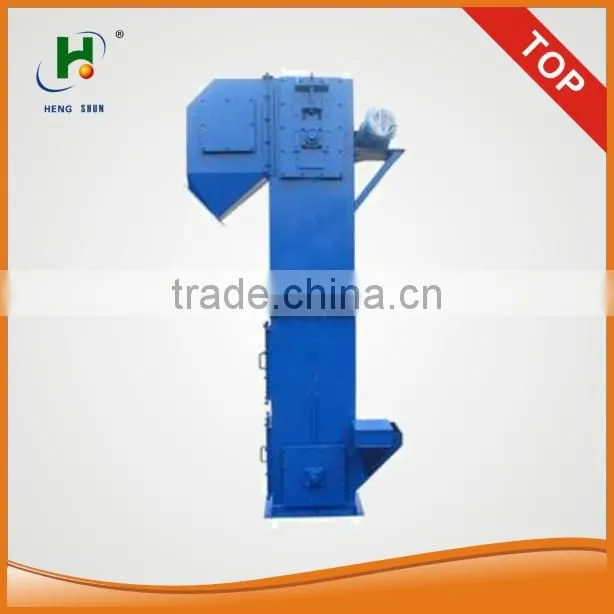

hot selling ne bucket elevator for limestone

We mainly provide the listed hot selling bucket elevators
1. TD Series (belt type)
2. TH Series (ring chain type)
3. NE and TB Series (plate chain type)
4. Widely used in cement, chemical, coal, fertilizer, mining, steel industries, etc.

End product

Diagrammatic sketch

1.High intensity, wear-resistance, corrosion-proof, with longer life span than steel buckets.
2.Light weight, extend the life span of the bucket, reduce the energy consuming of the elevators.
3.Good pliability , low product damage percent of only 1.
4.No spark caused in operation, avoid the possibility of dust exploration.
5.Clean discharge, wide temperature applications.

Working principle

ne bucket elevator is composed of machine head, main frame,Maintenance cylinder,Ventilators,

dustpan,dustpan belt and machine base.

The materials are fed into the machine from the bottom and discharged from the top.
1. Firstly, the materials are evenly fed into the dustpan on the machine base;
2. Secondly, the materials are elevated into the machine head;
3. Thirdly, the raw materials are dumped into the targeted machine.

4. hot selling ne bucket elevator for limestone

Technical parameters

Model

Capacity

The maximum percentage of the material block

(m3/h)

10

25

50

75

100

NE15

15

65

50

40

30

25

NE30

32

60

75

58

47

40

NE50

60

90

75

58

47

40

NE100

110

130

105

80

65

55

NE150

170

130

105

80

65

55

NE200

210

170

135

100

85

70

NE300

320

170

135

100

85

70

NE400

380

205

165

125

105

90

NE500

470

240

190

145

120

100

NE600

600

240

190

145

120

100

NE800

800

275

220

165

135

110

1.One year warranty.
2.Providing free quick-wear part.
3.Low charge for continue maintenance when warranty is expired.
4.Exclusive engineer support at any time.
5.We can provide free training to end-users.

Pictures show

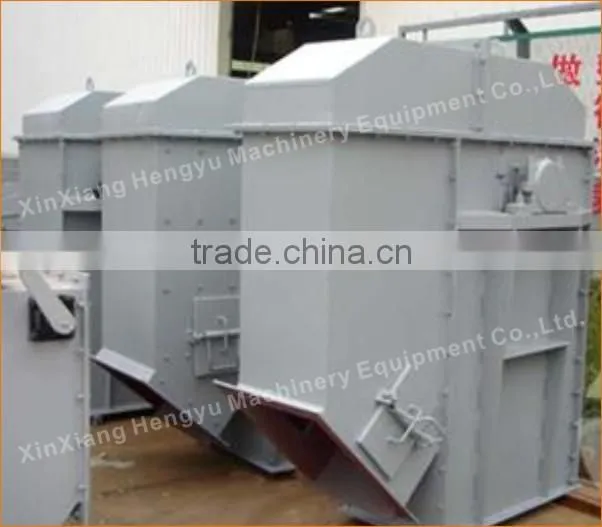

parts of hot selling ne bucket elevator for limestone

structure of hot selling ne bucket elevator for limestone

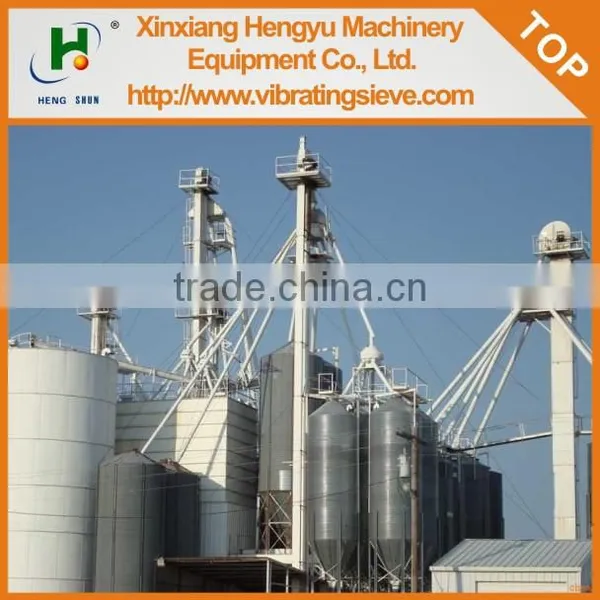

hot selling ne bucket elevator for limestone in practice

For right model!

1. What's the material you are going to deal with?

2. What are the physical characteristics of the material?
Such as the size,temperature,density,moisture content,etc
3. What's the producing capacity you are going to achive?
4.What is the lifting height of the elevator (distance between inlet and outlet)?

Contact us!

Write an e-mail to tell us your detailed requirements now, suitable bucket elevator for limestone will be chosen for you!
