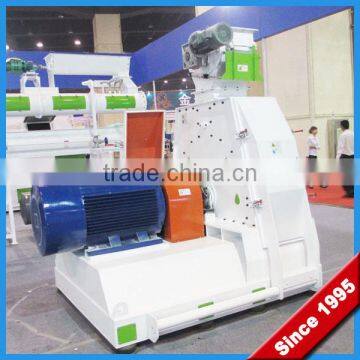

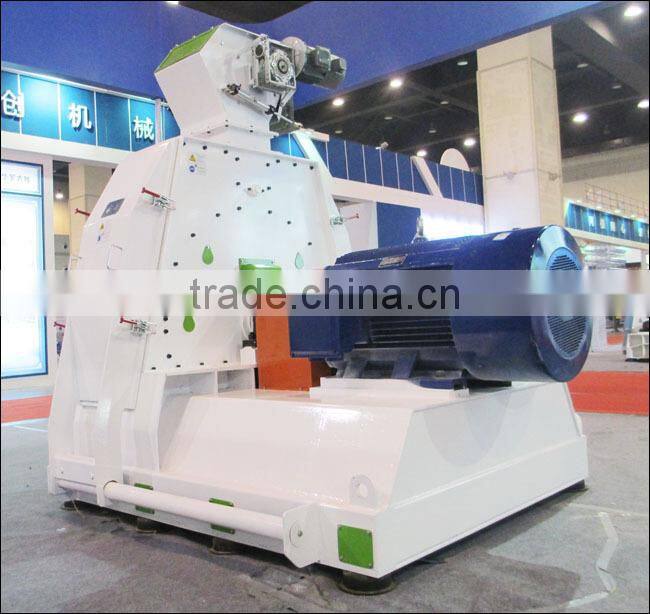

2015 New Technology Barely Grain Crush Making Machine
Dear friend, If this model is not suitable for you, please don't worry!
Leave a message at the buttom, tell me your detail requirement, I will show you our other model.
Believe me, you must could get the right one from us.
Features of barely grain crush making machine
1. SFSP Industrial chicken food powder making machine mainly used for grinding of raw material for hen.
2. Rotor passes accurate dynamic balancing test, resulting in low equipment noise and smooth running, that production
efficiency is elevated,and service life of equipment is extended.
3. SFSP series hens feed crusher’s feeding system has frequency control of motor speed and electromagnetic coupling
for choice, that the speed of feed could be adjusted , also could increase or reduce the input amount according to the size of sieve holes.
4. Rotor diameter is small, hammer wire-speed low, ensure the crushing particle plump.
5.Main transmission adopts gear drive with high precision,Ring die adopt the quick-release hoop type,convenient to remove.
6.Compact structure, beautiful appearance, high yield, less consumption, easy to use,quick to maintenance.
Technical Parameters of barely grain crush making machine
Mold | Output capacity(t/h) | Main motor power(kw) | Hammer No.(pcs) | Diameter of the Rotor(mm) | speed of main shaft (r/min) | width of chamber(mm) | Dimension (mm) | line speed of hammer(m/s) |
SFSP56x40 | 12-18 | 15/18.5 | 48 | 560 | 1440 | 400 | 1805×850×1105 | 42.2 |
SFSP56x60 | 16-25 | 22/30 | 72 | 560 | 1440 | 600 | 2005×850×1105 | 42.2 |
SFSP60x40 | 2--5 | 30/37 | 56 | 600 | 2930 | 400 | 1805×850×1105 | 92 |
SFSP60x60 | 3-7 | 45/55 | 96 | 600 | 2930 | 600 | 2005×850×1105 | 92 |
SFSP60x80 | 7-13 | 75/90 | 128 | 600 | 2930 | 800 | 2205×850×1105 | 92 |
SFSP66x60 | 2.5-9 | 55/75 | 64 | 660 | 2970 | 600 | 2115×1340×1455 | 102.58 |
SFSP66x80 | 5-13 | 90/110 | 88 | 660 | 2970 | 800 | 2620×1340×1455 | 102.58 |
SFSP66x100 | 7-18 | 132/160 | 128 | 660 | 2970 | 1000 | 3020×1345×1455 | 102.58 |
SFSP132x36 | 10-15 | 75/90 | 36 | 1320 | 1440 | 360 | 2320×2016×2113 | 102 |
SFSP132x65 | 15-20 | 132/160 | 64-96 | 1320 | 1440 | 650 | 2610×2016×2113 | 102 |
Operating instructions for barely grain crush making machine
1.The operator should understand thefeed grinder machine structure, and be familiar with the machine performace and operation methods.
2. Please carefully check each connection parts to avoid loose phenomenon.
3.With uniform feeding during the production rather than suddenly more or less to guarantee the motor work underrated load.
4.If strong vibration appears in the operation process, you should immediately stop the machine and find out the reasons, then continue.

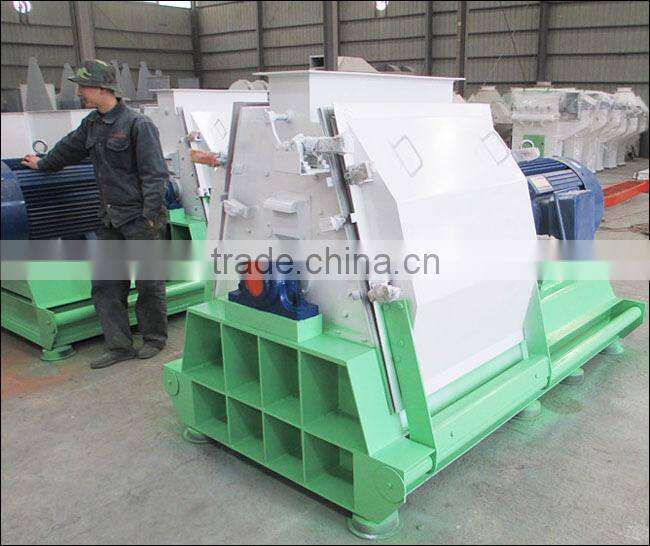

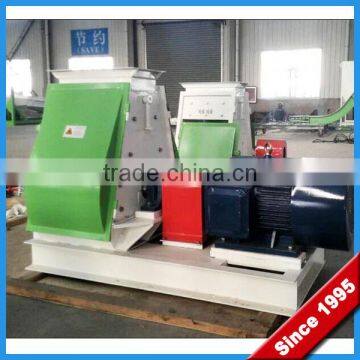

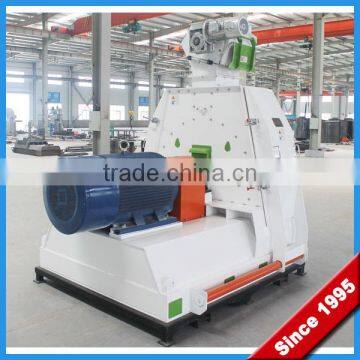

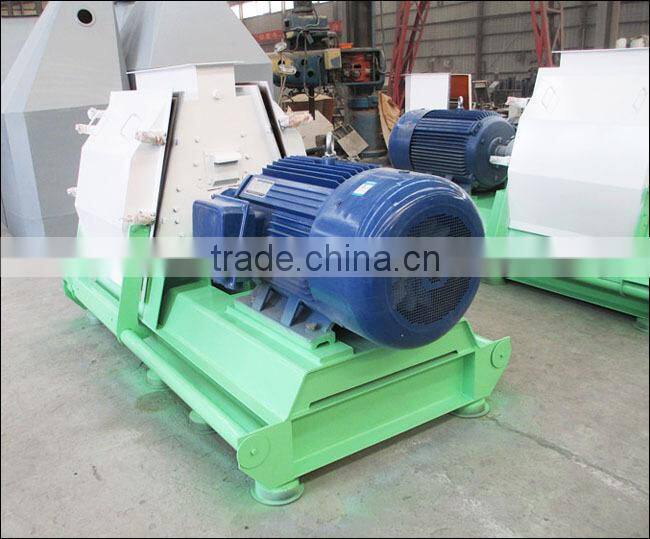

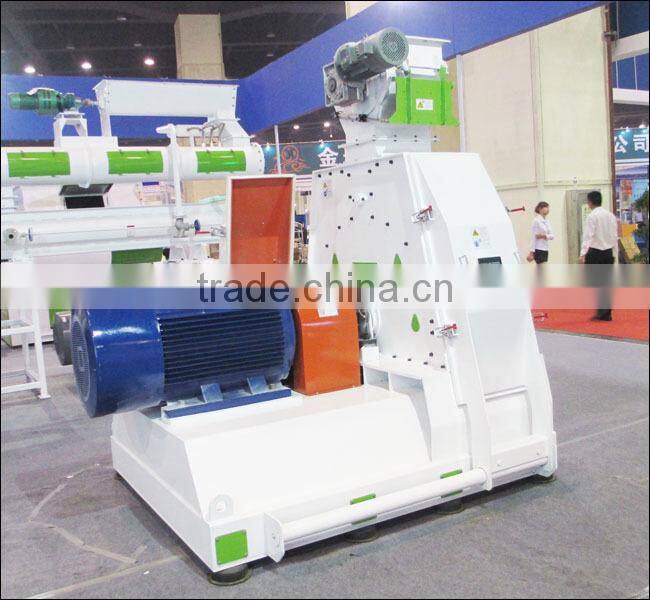

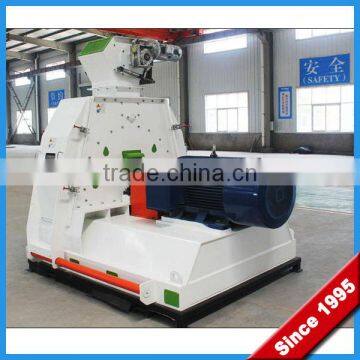

Our industrial barely grain crush making machine
