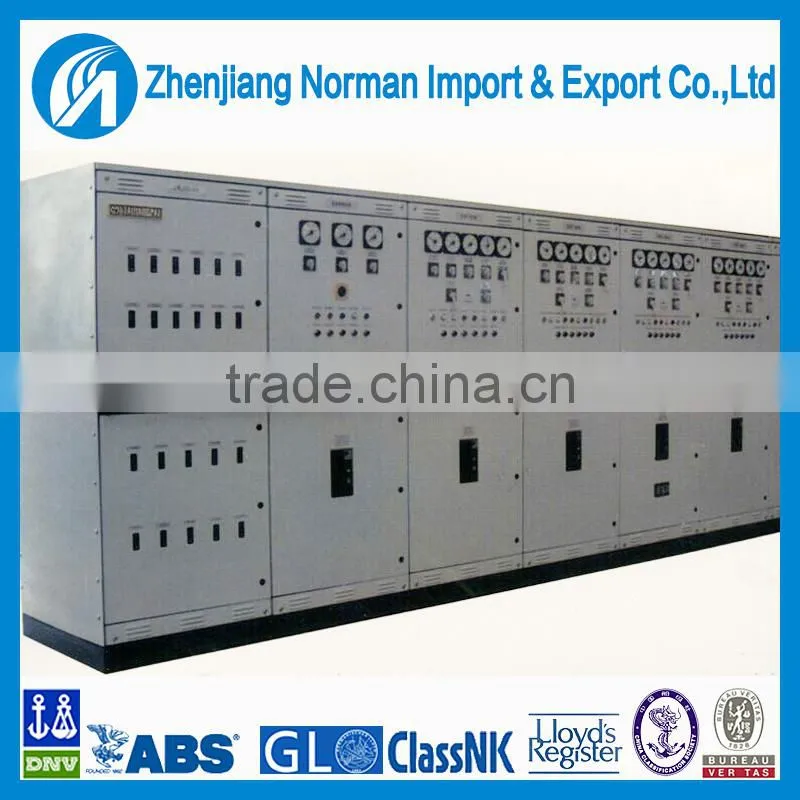

High quality marine switchboard for ship
- 20 Set / Sets per Month
- Shanghai
- T/T Credit Card PayPal
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | ZJNM |
Product Description
High quality marine switchboard for ship
Main switchboard connects to main generator directly or coast distribution power. And, send their power to distant points of the two electric devices or directly connect to the electricity load side.
Emergency switchboard are in the operation of the ship, when the main power after the loss of electricity, the power distribution and protection of the device while power supply to a number of essential equipment ,such as: emergency lighting, and manipulating devices, navigation and radio equipment . The device has a manual, automatic and remote control to operate in three forms.
Main parameter:
Combined structure: landing free-standing installation
Rated voltage: AC380V/440V
Maximum generatrix current: 5000A
Rated frequency: 50/60Hz
Maintenance way: plate front/plate after
IP rating:top IP 22
Into the line cable position at the bottom of the upper or after(optional)
To comply with relevant classification standard
Generator control panel reference size:
Frame current A | Generator current rating
| Wide mm | Height mm | Depth mm |
630 | ≤630 | 600 | 1800-2300 | 600-1000 |
630-1250 | ≤1250 | 700 | ||
1250-1600 | ≤1600 | 700 | ||
1600-2000 | ≤2000 | 800 | 2000-2300 | 800-1000 |
2000-2500 | ≤2500 | 800 | ||
2500-3200 | ≤3200 | 800 |
Product description:
Rated voltage | AC400/440V | Frame | Molding steel plate or large box frame
|
Rated current | Maximum 500A | IP rating | Top IP22 |
Type | Fully enclosed fixed panel floor many ark combination
| Distribution cable entry
| Back bottom(upper optional) |
Rated frequency | 50/60Hz | Armrest | Front and back |
