high performance professional ce approved biofule pellet machine for sale
Brief introduction of biofule pellet machine:

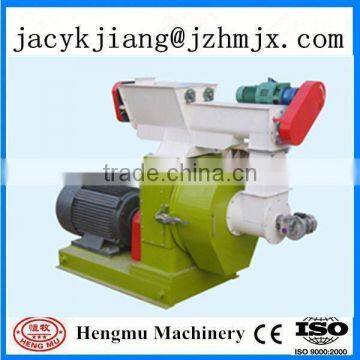

Ring die wood pellet mill is specially designed for mass industrial production of wood pellets. The raw materials are easy to obtain, like grass, groundnut shell, sawdust, paddy straw, wheat straw, palm husk, rice husks, etc and many other agro and forestry wastes.
The final pellets can be used for industrial boilers and large power plants as well as home heating.
The benefits of biofule pellet machine:
Due to the increase on cost of conventional fuel and the need for new energy resources, more people start to focus biomass fuel business. It is clean and renewable. It can prevent the raw dust from wasting.
Main features of biofule pellet machine:
1.It's widely used to make wood pellet from wood/straw/peanut shell sawdust,etc. Adopt high-precision gear driven,advanced flexible coupling,for high productive efficienty |
| 2.Main driving using imported SKF(NSK) bearing and NAK oil seal,Siemens Motor |
| 3.Cover,chute,paddle and shaft are made of stainless steel |

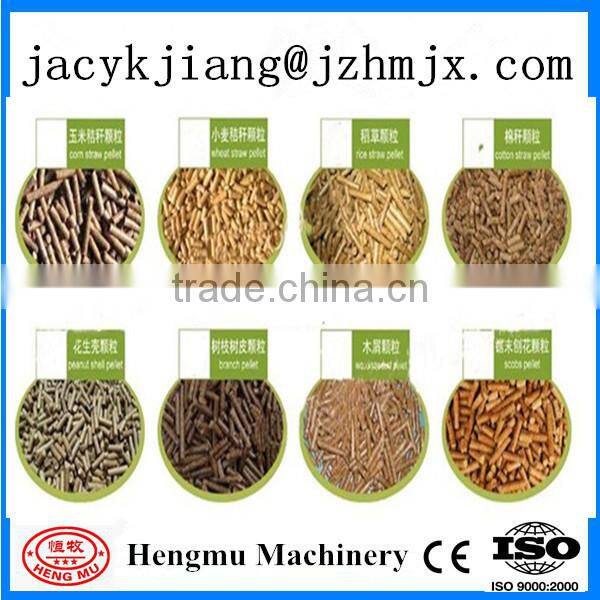

4.It apply for wood sawdust within diameter 5mm,moisture around 10~13%. Final pellet with diameter 6,8,10,12mm,with length can be 8~18mm |
Advantage of biofule pellet machine:
| 1. No binder needed during production to make green fuel. |
| 2. Quantity of heat of the final product is 500-1000kcal higher than raw material. |
| 3. It can replace firewood and liquefaction gas, with less investment. |
| 4. Easy for transport. |
| 5. Main engine drives with high precision gear, ring die in quick detaching encirling hoop type, output 20% higher than belt drive. |
| 6. Adopt international advanced piping system and import pressure regulating valve. |
7. The complete machine transmission parts include electric motor with Switzerland "SKF" high quality bearing, to ensure high-efficiency, stable and low noise drive. |
Technical parameter of biofule pellet machine:
Model | Capacity | Power of main motor | Feeder power | Diameter of ring die | Size of final pellets |
SZLH250 | 250kg | 22kw | 0.75kw | 250mm | 1.5-12mm |
SZLH350 | 300kg | 55kw | 1.5kw | 350mm | 1.5-12mm |
SZLH420 | 1t | 110kw | 1.5kw | 420mm | 1.5-18mm |
SZLH508 | 2t | 160kw | 2.2kw | 508mm | 2-18mm |
Main accessories of biofule pellet machine:
Spare Part | Brand Name(Country) |
Electric Motor | SIEMENS (Germany) |
Level Detector | Autonics (Korea) |
Crusher Bearing | NSK(Japan) |
Pellet Machine Bearing | SKF(Sweden) |
IPC(Industrial Personal Computer) | ADVANTECH Industrial Controlled Computer (Taiwan) |
Position Switches | Omron (Japan) |
Reduction Box | Itc cathay Pacific (Jiangsu China) |

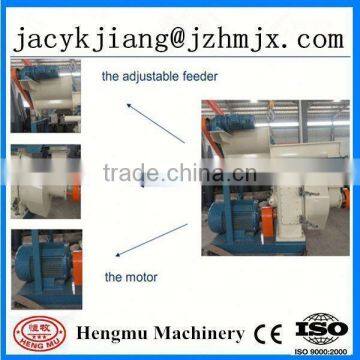

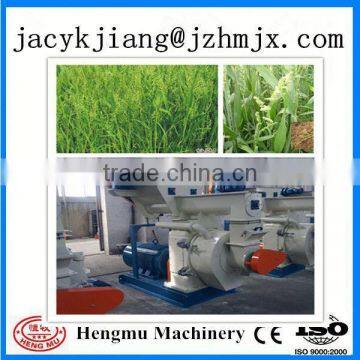

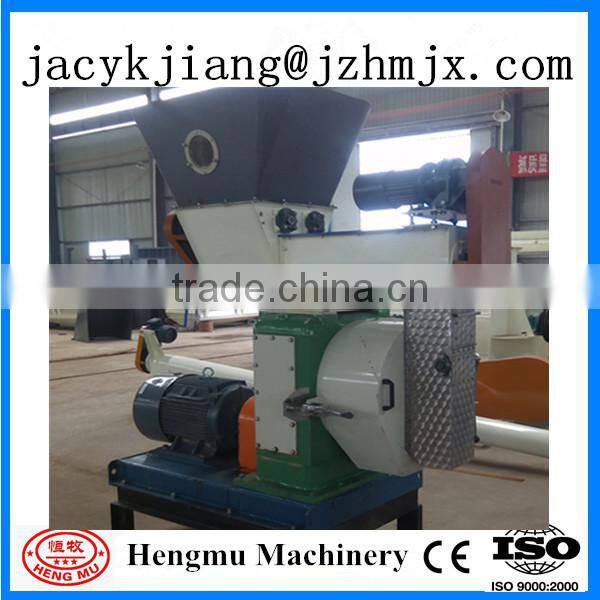

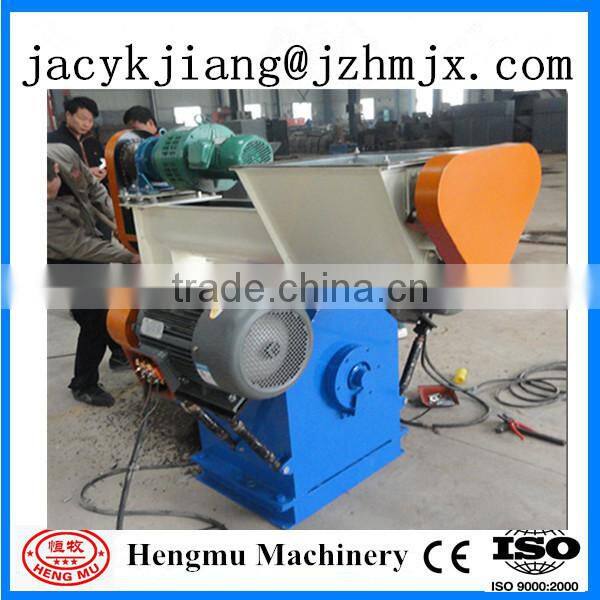

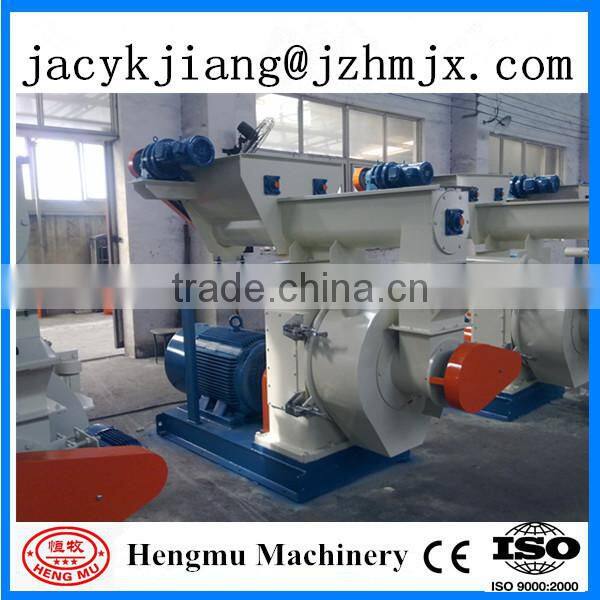

Picture show of of biofule pellet machine:

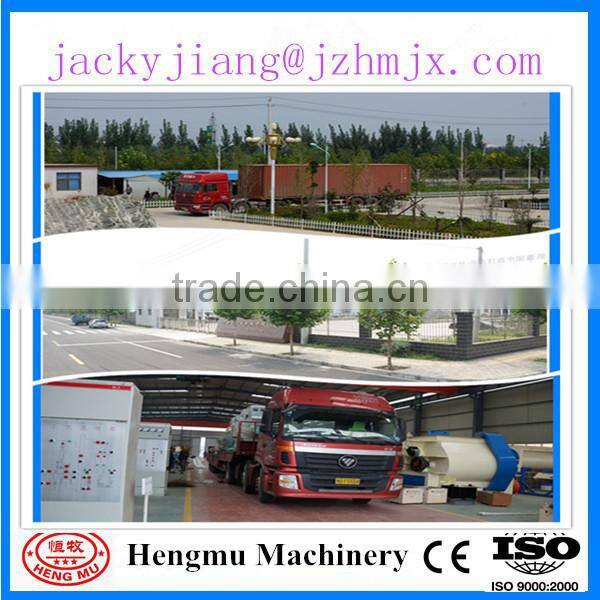

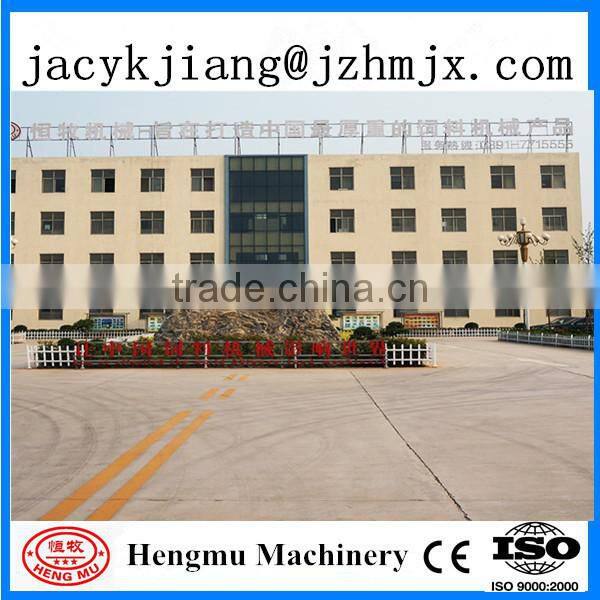

Our company is located in northwest of Henan Province, 80km away from provincial capital zhengzhou. The equipment material we using is 2mm thicker than feedmachinery standard, besides, we offer you 24hours paramilitary service for full-time. We have exported to more than 20 countries.
We have been been manufacturing this machine for more than 19 years, and all of our customers think highly of our pellet machine and other products. We are confident that you will also satisfied with our products. Our machine are with ISO,TUV,CE, BV and SGS certificates.
Factory Size: | 10,000-30,000 square meters | |
| Factory Location: | 1. Xiuwu County Industrial Zone, Jiaozuo City, Henan Province, China 2. Room 807, Unit 1, Building No. 3, Meijinghuajun Community, Jinshui District, Zhengzhou City, Henan Province, China |
| No. of Production Lines: | 5 |
| Contract Manufacturing: | OEM Service Offered Design Service Offered Buyer Label Offered |
| Annual Output Value: | US$10 Million - US$50 Million |
| Product Price Range: | High and/or Average
|
The concept of enterprise culture:
Our wish:To be the top grass machinery company in grass feed pellet industry.Te be the top ranking training&trusteeship company in the feed industry.
Our mission:Make the best equipment, build the best turnkey project, enhance the development of farming and husbandry. To improve human living standards. To create value for customer.
To create opportunity for employee
Our team: Honest, passionate, united, enterprising, to be a responsible staff, to be a responsible enterprise.
Our core values:Responsibility, integrity, quality, service, innovation.
Our service: Systematic, professional international, transmitting values.
For quality control, we will do so:Quality control is the selection of all employees advanced prerequisites. Passed the ISO9001:2008 international quality system attestation. Passed the Swiss SGS International Quality Certification System.
Overseas Customers:
1. 24 hours rapid response for full-time.
2. We make maintenance plans for each equipment from our factory.
3. We provide operating training for every customer.
4. We remind the customer termly to maintain the machine.
