Hammer mill for straw/saw wood
Product Introduction of hammer mill
The hammer mill is composed of hopper, ball type magnetic separation machine, guide mechanism, upper casing, operation gate, rotor, engine base and shock absorber. It can be used grinding corn, wheat, soybean, sorghum, also grinding forage and medicine raw materials. And it is widely suitable for large and medium feed mills and large scale breeding factory and pharmaceutical factory.
Working Principles of hammer mill
This hammer mill process is divided into two parts:
Hammer Blow: There are several crushing methods: crushing, grinding, smashing and Shear broke. Our machine is smashing, raw materials in grinding chamber are crushed small granular with hammer fast rotate and strike.
Mesh Filter. Some of crushed small granular are according with standard and through screen, and the rest of materials need hitting again to meet standard.
Structure Features of hammer mill
Water drop grinding chamber design, it can remove circulation to get secondary crushing and improve grinding uniformity and capacity.
Hammer mill rotor by checking, equipment operation less vibration, less noise, more stable.
Adopt direct drive, new bibby coupling, avoid bearing heating.
Import advanced bearing, long life, and stable run.
Can use impeller feeding, variable frequency feeding, screw conveyor, stepless feeding and various feeding
system.
Parameters of hammer mill
Model | SFSP56*36 | SFSP56*40 | SFSP708*40 | SFSP968*40 |
Rotor Diameter(mm) | 560 | 560 | 708 | 968 |
Width of grinding chamber (mm) | 360 | 400 | 400 | 400 |
Rotate speed(r/min) | 2940 | 2950 | 2970 | 1480 |
Number of Hammers | 40 | 40 | 80 | 44 |
Capacity T/H | 1-3 | 2-5 | 3-8 | 6-10 |
Power (kw) | 22 | 37 | 55 | 90-110 |

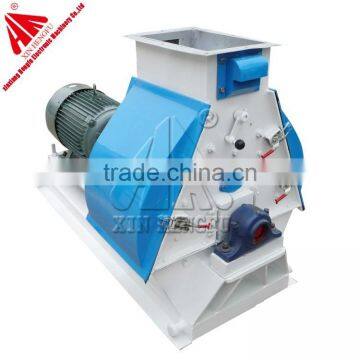

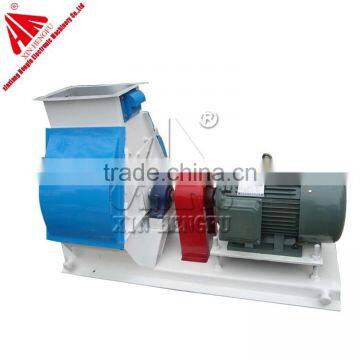

Pictures of hammer mill
Xinxiang Hengfu Electronic Machinery Co., Ltd. is professional supplier with the ability to manufacture and supply each and every machine in the feed production line. With an intricate knowledge of each key process, we can supply a compatible solution from raw material intake to finished feed bulk loading.
We supply turnkey solutions of feed production, from evaluation, design, project management, process engineering to procurement manufacturing, installation, commissioning. We study every details of the pelleting solution, so that to ensure you get the best feed equipment, best service and best plan.
If you are interested in our hammer mill, there are some details to confirm:
1. what's your raw material?
2. the capacity per hour?
