Fully Automatic Granular Rice Packing Machine With Conveyor
Contact: Ms.Alice
Skype: dhella63
Mobile: 008613838255120
WhatsApp/Viber: 008613838255120
Machine Introduction
• This granule&pellet packing machine is widely used to automatic pack any loose, non-cohesive granule products of the food, pharmaceutical, and chemical industries.
• This granule&pellet packing machine adopts rotating plate with certain small pinholes as the counting device, and can automatically measure, make bags, fill, seal, cut, print codes and make easy-tear notches etc.
• Customers can choose to whether equip optionaldevice on it or not.
Machine Application
This granule&pellet packing machine is proper for all kinds of granular material (sawdust pellet, feedstuff, grain, sugar, salt, drug, etc.), powder material (coffee, flour, washing powder, etc.), mixed material (puffed food, tea, popcorn, premix, additives, etc.) and so on, it is also named multi-function packing machine.
Machine Functions&Features
1. Sever motor drawing film, the tension membrane more accurate, faster, more accurate measurement.
2. Chinese or English screen displaying, intuitive and simple operation.
3. PLC&HMI control, function is more stable, adjust it with any parameters not need stop machine.
5. Horizontal and vertical sealing temperature control independently, ensure the artistic and neat sealing.
6. This machine is linkage control, automatic feeding, no packing without materials, work stable.
7. The contact material parts all stainless steel, no contaminated material, never rust.
8. Packing type diversification, pillow sealing, standing type, punching etc.
9. Different pouch size adaption, simple adjustment without tools.
10. Work environment quiet, low noise, saving energy and the price is completive.
Optional Features
• Pouch zipper opening function
• Gusset pouch opening function
• Vibrating product dosing function which apply for product without good fluidity
• Vibrating compacting function which enhance packaging density
• Air/Nitrogen Inflating, Air deflating function
• De-dusting device to enable clean packaging environment and ensure quality of sealing
• Different types of code printing function
Machine Show

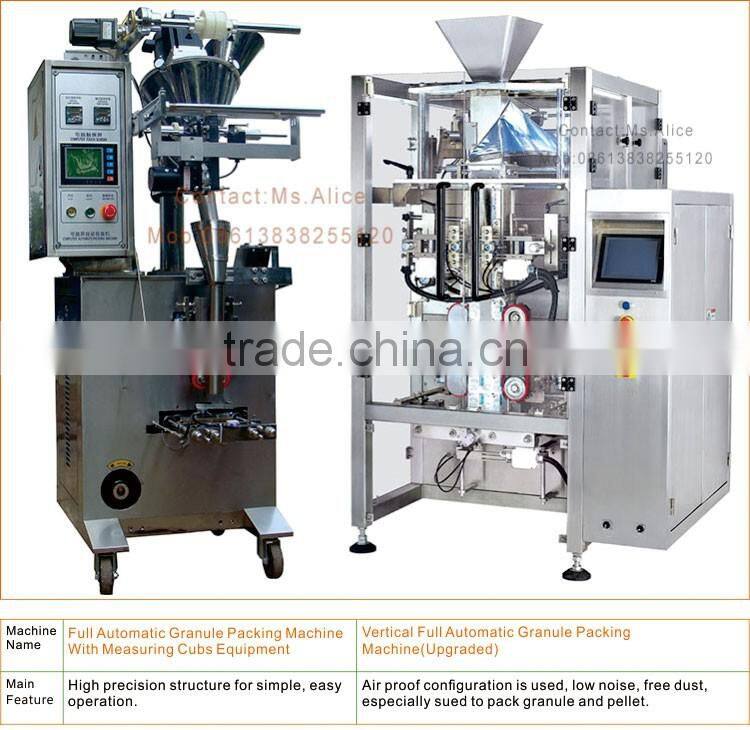

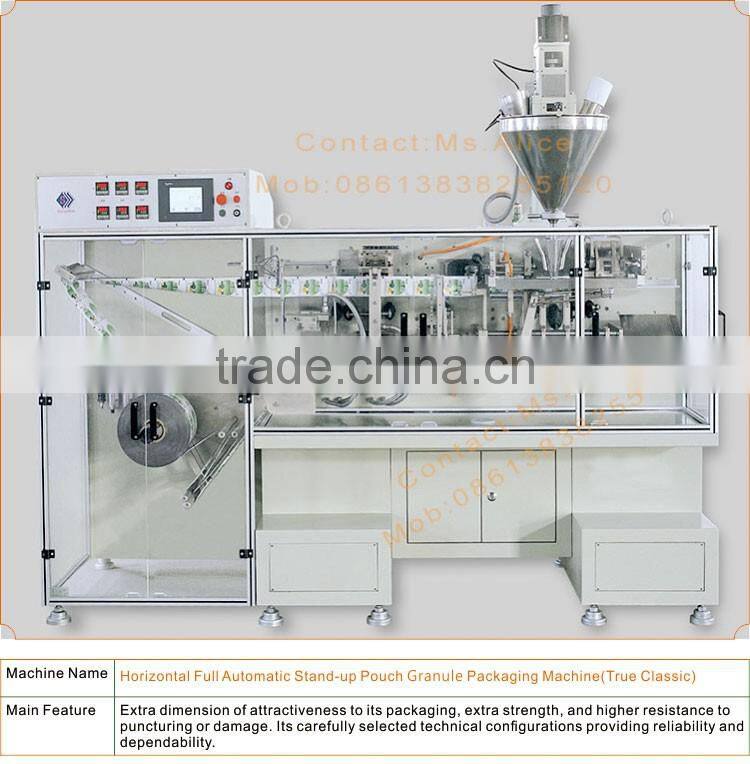

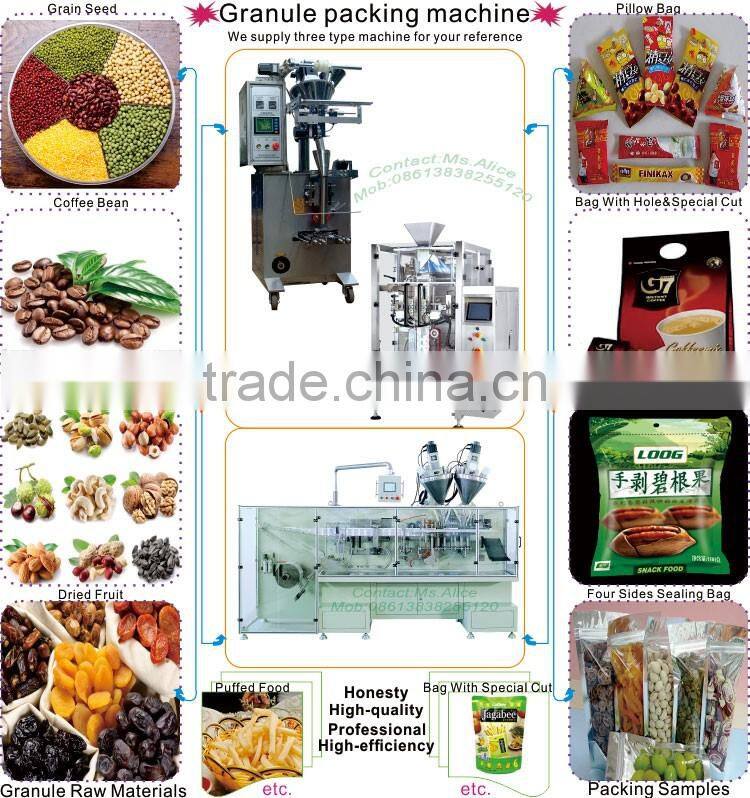

We offer three different kinds of granule&pellet packaging machine for customers's different requirement:
Technical Parameter
1> Technical parameters for smaller bag packing
Model | DHB4-F320C-FT(x) | DHB4-F320AT-FT(x) | DHB4-F320B-FT(x) |
Bags length | 30-180mm | 30-150mm | 30-150mm |
Bags width | 25-135mm | 25-135mm | 25-135mm |
Packaging capacity | 40-110bags/min | 30-80bags/min | 25-60bags/min |
Filling Range | FT(1):1-10ml, FT(2):8-35ml, FT(3):30-110ml, FT(4):100-320ml, FT(5):300-800ml | ||
Packing accuracy | ≤±1% | ≤±1% | ≤±1% |
power | 1.6kw/220v | 1.5kw/220v | 2.0kw/220v |
Overall dimension | 1120(L)X780(W)X1720(H) | 1120(L)X780(W)X1720(H) | 1120(L)X780(W)X1720(H) |
Overall weight | 350kg | 320kg | 360kg |
Optional Equipment | Automatic quantity warning device. Automatic Date Coder. Easy opening device. Angle Fold Devices. Hole-punching Device. Link Bag Device Etc. | ||
Customization | Machines can be made to customers' own specifications on request. | ||
2> Technical parameters for bigger bag packing
Model | DHB5-F420C-WZ(x) | DHB5-F520AT-WZ(x) | DHB5-F680B-WZ(x) |
Bag length | 80-300mm | 80-400mm | 100-480mm |
Bags width | 50-220mm | 80-250mm | 180-320mm |
Packing capacity | 5-60 Bags/min | 5-60 Bags/min | 5-60 Bags/min |
Filling Range | WZ(x):150-1200ml | WZ(x):3000ml(max) | WZ(x):6000ml(max) |
Packing accuracy | ≤±1% | ≤±1% | ≤±1% |
Power | 2.2Kw/220V | 4Kw/220V | 5Kw/220V |
Overall dimension | 1320(L)X950(W)X1360(H) | 1160(L)X1795(W)X1650(H) | 1780(L)X1350(W)X1950(H) |
Overall weight: | 540kg | 600kg | 900kg |
Optional Equipment | Automatic quantity warning device. Automatic Date Coder. Easy opening device. Angle Fold Devices. Hole-punching Device. Link Bag Device Etc. | ||
Customization | Machines can be made to customers' own specifications on request. | ||

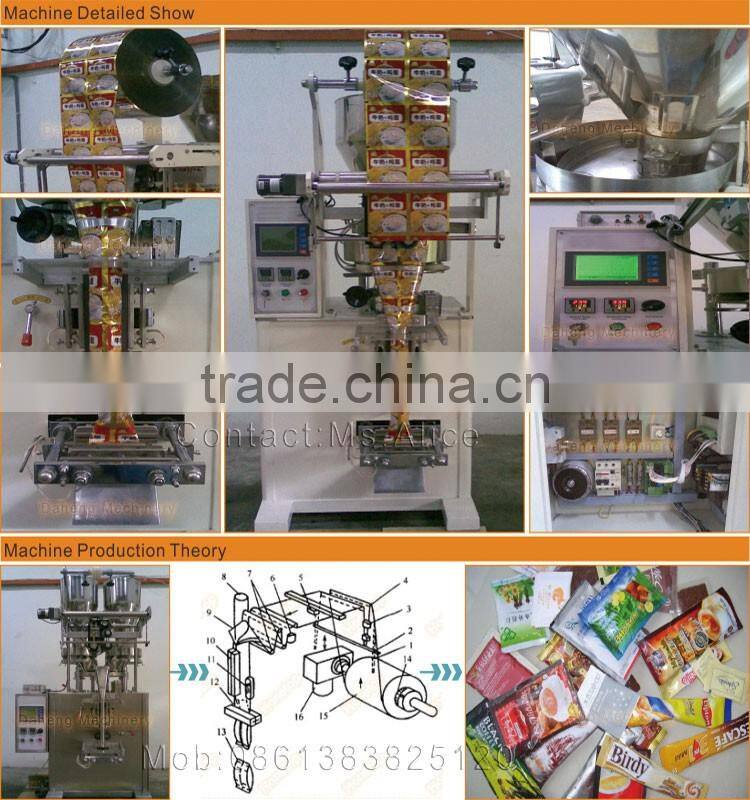

Machine Detailed Show
Recommended Other Popular packing Machine for Your Reference
| |
| |
| |
1. The single granule packing machine will be packaged by export standard wooden case or upon customer's request.
2. All the machines will be adjusted and tested before shipping.
Pre-sale:
- Suggest to client suitable models of as customer need.
- Introduce machine's structure and features in detail, explain the price component.
- Answer client concerned questions.
After-sale:
- Documents and certificate available in time.
- One year guarantee for whole machine.
- 24 hours technical support by e-mail.
- Calling or door-to-door service.
- User manual and detailed Videos/CD.
Q: How about the quality of your products?
A: Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q: Why should you choose our packing and filling machine?
A: We have been specialized in filling and packing machine for more then 20 years, and until now have exported mahcines to more than 30 countries.
Q: How long is the delivery?
A: Delivery time: within 10-15 working days after receive the deposit.
For more information, pls contact me freely and I will reply you as soon as possible!
We not only provide customers with cost-effective high quality products, but also provide first-class service and support solutions.
