Name: 4mm Portable Colorimeter Color Meter Price
Model: WF32
Product Description
Overview

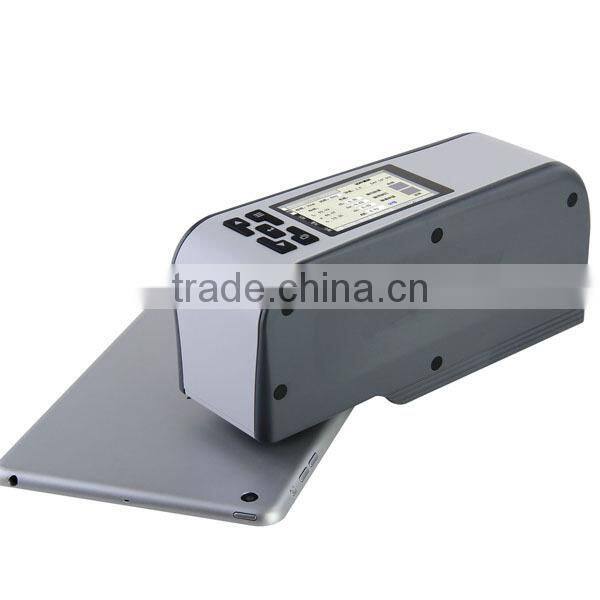

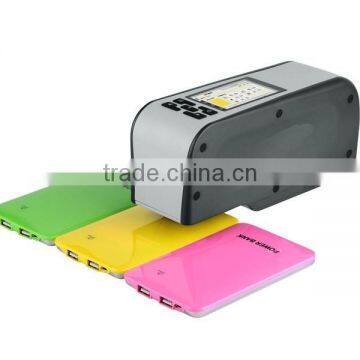

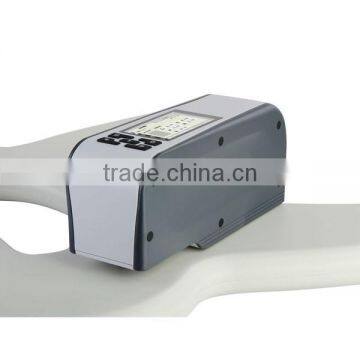

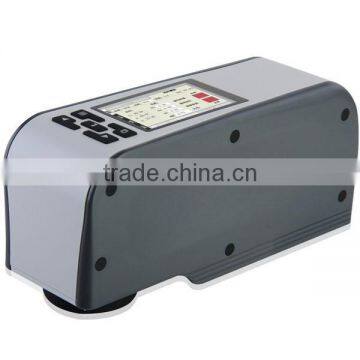

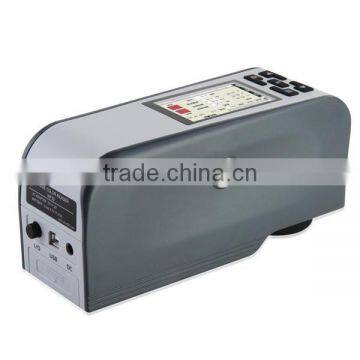

The Colorimeter is a professional colorimeter designed and produced subject to the relevant standards of International Commission on Illumination (CIE) and national stands. Being with brand new imported key components, the instrument is well designed and features in precision, stability, easy handling, easy to learn and cost-effective. The instrument applies to the color quality control, color difference control, color difference analysis, sampling testing and online testing for industries as textile, printing and dyeing, garments, shoes, leather, chemical, plastic, pigment, paint, ink, printing, metal, photography and toys etc., as well as to the auxiliary color matching during the processes as injection, inking, painting and spraying coating etc.
Specification of digital colorimeter:
| Model | WF32 |
| Display Mode | CIELAB,CIELCH,CIEXYZ,CIELUV,HunterLAB,sRGB |
| Color Difference Formula | E*ab,ECMC,EISO,ECIE94,EFCMⅡ,ELuv,Ehunter,EsRGB |
| Yellowness and Whiteness | Ganci whiteness, ISO brightness, YI yellowness. |
| Illumination Condition | CIE Recommendation:8/d 45/0 Optional |
| Light Source | LED blue excitation |
| Sensor | Photodiode array |
| Measurement Caliber | φ4mm/φ8mm/φ16mm Alternative |
| Measurement Condition | Observer:CIE 10° Standard observer Light source:A C D50 D65 F2(CWF) F7 F11(TL84) F12(U30) Contain light way:SCI SCE |
| Measurement Range | L: 0 to 100 |
| Repeated Accuracy | E<0.03 (take the deviation average after 30 times measuring the whiteboard) |
| Table Difference | E<0.2 |
| Measurement Interval | 0.5 Sec. |
| Average Measuring Function | Average measuring frequency: 1-32 times |
| Color Simulation Function | yes |
| Storage Capacity | Type sample data : 100 with testing sample data: 20000 Whiteness/yellowness data: 200 |
| Language Patterns | English/Simplified Chinese/Traditional Chinese |
| Quality Control Software | (Color-Analysis System) software |
| Battery Charging Time | 8 hrs |
| Battery | Li-ion battery, 5000 times Measurement |
| Lifetime of Bulb | 5 years more than 1.6 million measurements |
| Display Screen | TFT true color 2.8inch@(16:9) Resolution ratio:400x240 |
| Interface of External | USB2.0 (USB-B)- data communication with (color analysis system) software RS-232 (115200bps)- connected with micro printer |
| Working Temperature Range | 0℃-40℃(32℉-104℉) |
| Storage Temperature Range | -20℃-50℃(-4℉-122℉) |
| Humidity Range | Relative humidity less than 85%,without condensation |
| Weight | 700g |
| Size | 199*68*90mm |
| Size of Exterior Package | 400*240*340mm |

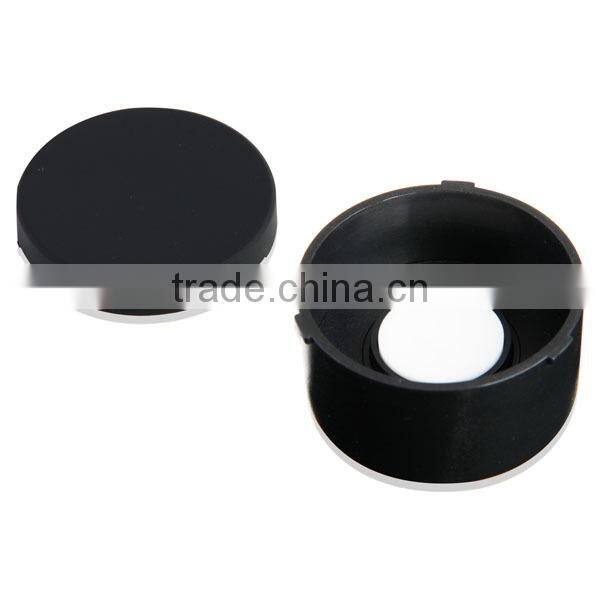

| Standard Accessories | Standard whiteboard/Standard black cavity/3000mAH Li-ion battery/AC adapter/USB Data line/CD(Color analysis software)/User manual/Warranty card |

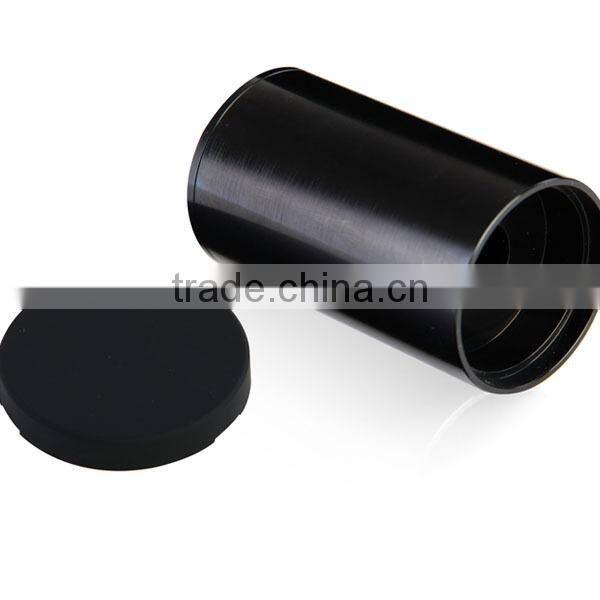

| Optional Accessories | Flour measuring device/Liquid measuring device/Micro printer |
