belt bucket elevator, ring chain bucket elevator, plate chain bucket elevator
- 200 Set / Sets per Month
- Qingdao Tianjin Shanghai Ningbo or as per demand
- T/T L/C D/P D/A Credit Card PayPal
- grain elevating auger conveyor bucket elevator
- Grain Vertical bucket elevator for lifting to the stock for sale
- Grain belt bucket elevator for lifting to the stock from China
- Professional Elevator Bucket /bucket Elevator For Sale In China
- TD series belt bucket elevator for grain lifting
- Grain Bucket chain conveyor for wheat corn mill bucket elevator
Product Details
Condition: | New | Type: | Bucket Conveyor | Material: | Other, Carbon steel |
Material Feature: | Heat Resistant | Structure: | Other, belt conveyor/plate chain conveyor/ring chain conveyor | Load Capacity: | 3-50 T/h |
Place of Origin: | Henan, China | Brand Name: | hongyuan | Model Number: | TDTG/TD/TH/NE |
Voltage: | 380V or as per demand | Power(W): | 3kw | Dimension(L*W*H): | Customer Request |
Certification: | ISO9001:2008 | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details

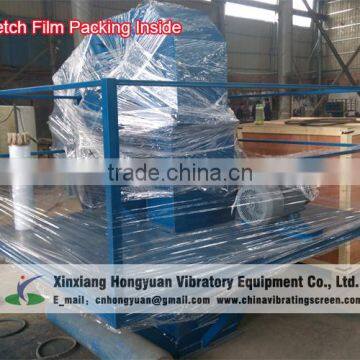

Stretch Film inside and Packed in Standard Fumigation Wooden Box by LCL;
Stretch Film inside and contained in FCL;
Product Description

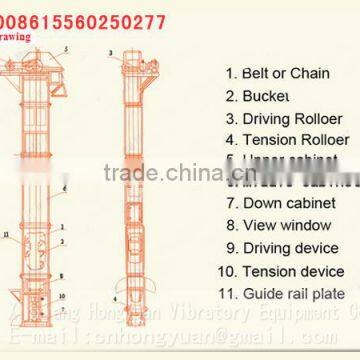

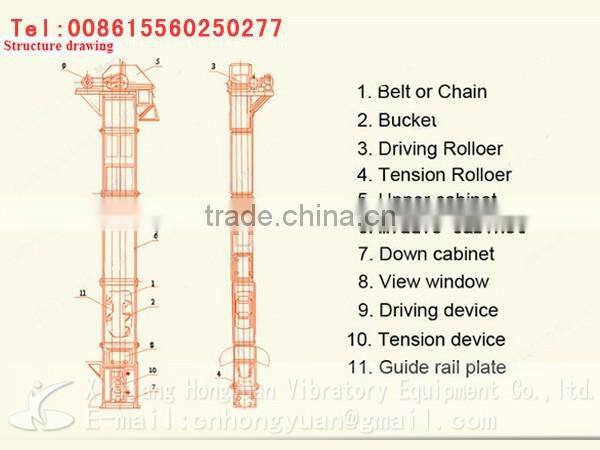

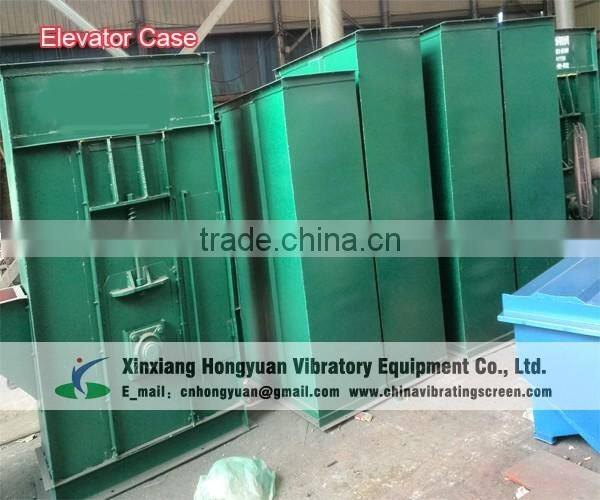

belt bucket elevator, ring chain bucket elevator, plate chain bucket elevator is the universally lifting conveying equipment in vertical types. It is mainly made up of Movement part (bucket and traction belt or chain), Upper part with Transmission Drum, Down parts with Tension Drum, Middle Cabinet, Drive Device and so on.

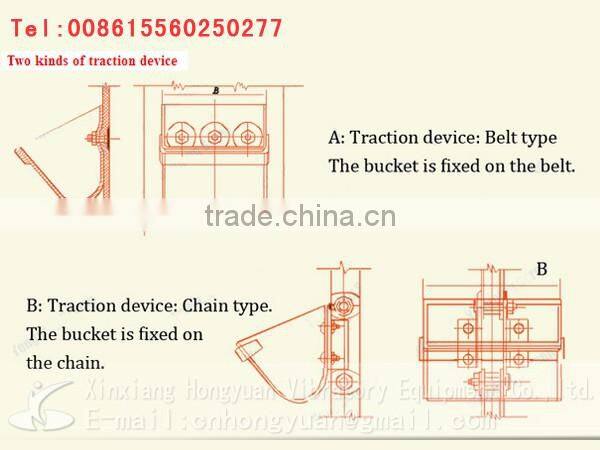

As per different transmission part, it can be divided in four types:
TDTG&TD in Belt Chain Typs; TH in Ring Chain Types; NE in Plate Chain Types

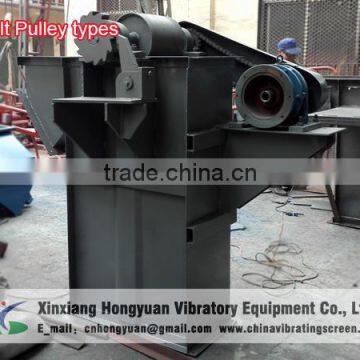

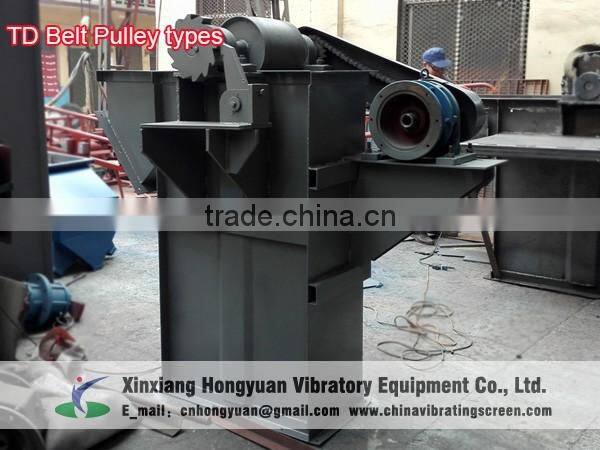

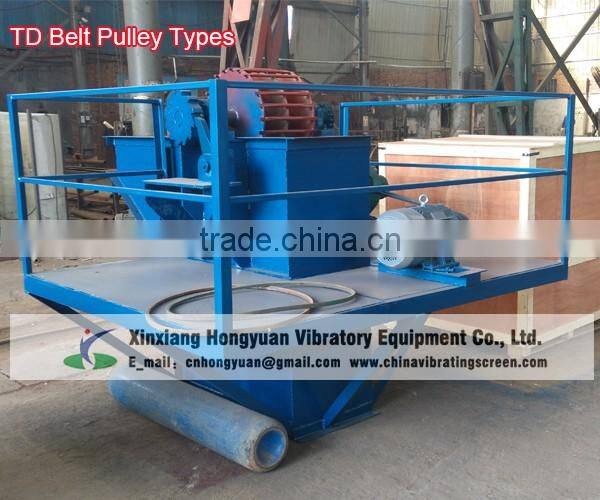

A: TDTG&TD Belt Traction Types Bucket Elevator

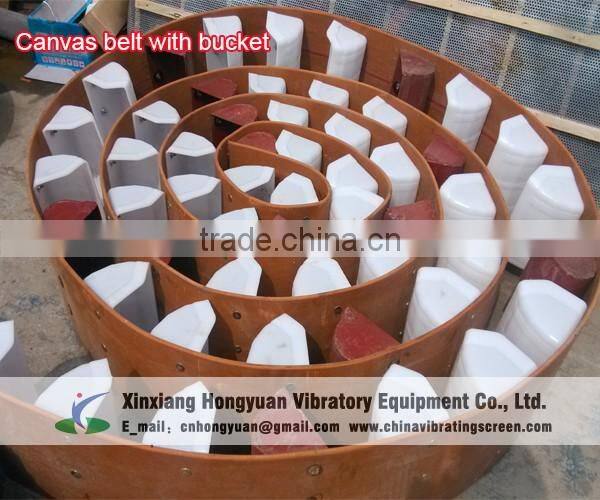

It adopt the canvas belt for transmission belt for vertical lifting the powder, granules and small blocks materials for example the grain, coal,cement etc. It's lifting height is from 4-40meters range. The conveying capacity is from 4-238m3/hour as per different material which the density at ρ <1.5t/m3 . The max material degree should below 60 degree, below 200 degree if use the heat resistant belt.
Main Technical Data
Model | TD160 | TD250 | TD315 | TD400 | ||||||||||||
Bucket type | Q | H | ZD | SD | Q | H | ZD | SD | Q | H | ZD | SD | Q | H | ZD | SD |
Capacity (m3/h) | 5.4 | 9.6 | 9.6 | 16 | 12 | 22 | 23 | 35 | 17 | 30 | 25 | 40 | 24 | 46 | 41 | 66 |
Bucket width (mm) | 160 | 250 | 315 | 400 | ||||||||||||
Bucket volume (L) | 0.5 | 0.9 | 4.2 | 1.9 | 1.3 | 2.2 | 3.0 | 4.6 | 2 | 3.6 | 3.8 | 5.8 | 3.1 | 5.6 | 5.9 | 9.4 |
Bucket distance (mm) | 280 | 350 | 360 | 450 | 400 | 500 | 480 | 560 | ||||||||
Belt width (mm) | 200 | 300 | 400 | 500 | ||||||||||||
Bucket speed (m/s) | 1.4 | 1.6 | 1.6 | 1.8 | ||||||||||||
Max granule(mm) | 25 | 35 | 45 | 55 | ||||||||||||
Model | TD500 | TD630 | TD160 | TD250 | TD350 | TD450 | ||||||||||
Bucket type | Q | H | ZD | SD | h | ZD | SD | Q | S | Q | S | Q | S | Q | S | |
Capacity (m3/h) | 38 | 70 | 58 | 92 | 85 | 89 | 142 | 4.7 | 8 | 18 | 22 | 25 | 42 | 50 | 72 | |
Bucket width (mm) | 500 | 630 | 160 | 250 | 350 | 450 | ||||||||||
Bucket volume(L) | 4.8 | 9 | 9.3 | 15 | 14 | 14.6 | 23.5 | 0.65 | 1.1 | 2.6 | 3.2 | 7 | 7.8 | 14.5 | 15 | |
BucketS distance (mm) | 500 | 625 | 710 | 300 | 400 | 500 | 640 | |||||||||
Belt width (mm) | 600 | 700 | 200 | 300 | 400 | 500 | ||||||||||
Bucket speed (m/s) | 1.8 | 2 | 1 | 1.25 | 1.25 | 1.25 | ||||||||||
Max granule (mm) | 60 | 70 | 25 | 35 | 45 | 55 |

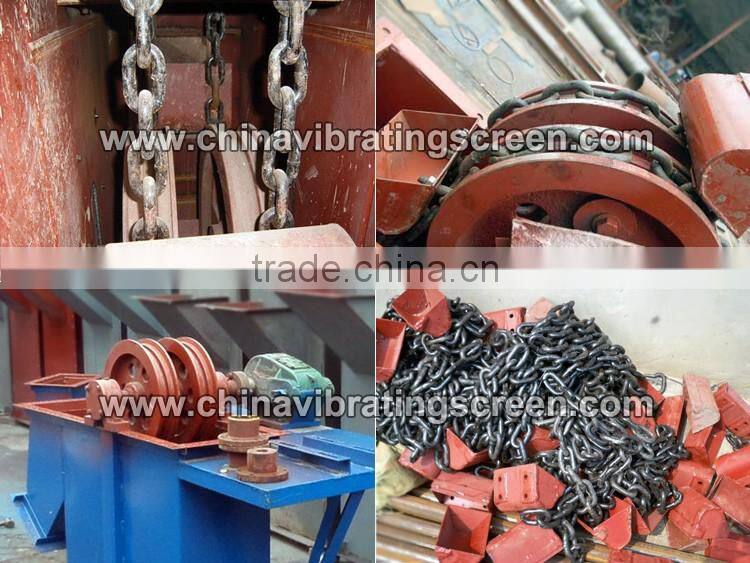

B: TH Ring Chain Types Bucket Elevator

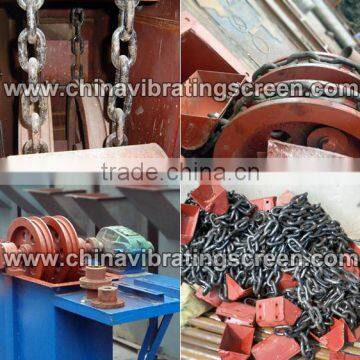

It adopt the forged low alloy steel ring chain as the traction device.It is mainly applied for the material which the density at ρ <1.5t/m3. It's conveying capacity is at about 35-185 m3/hour as per different density materials. It's max heat resistant degress is about 250 degree. It's Lifting Height is at 4.5-40 meters range.

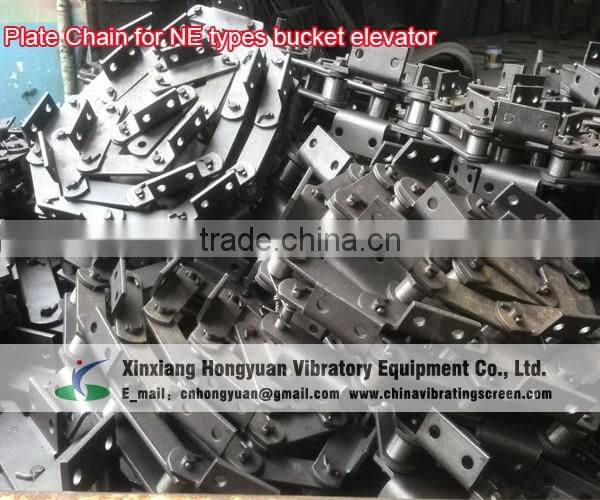

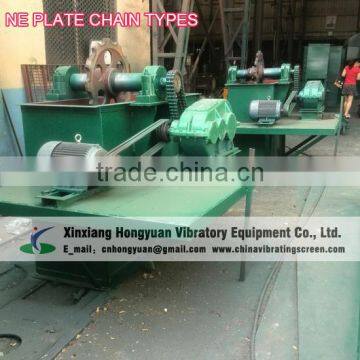

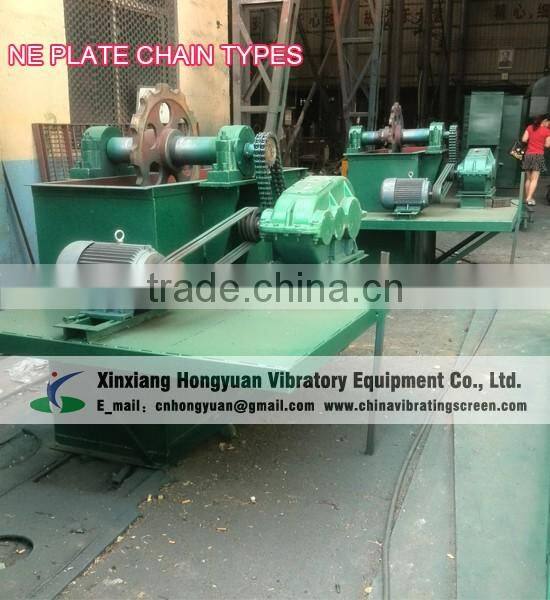

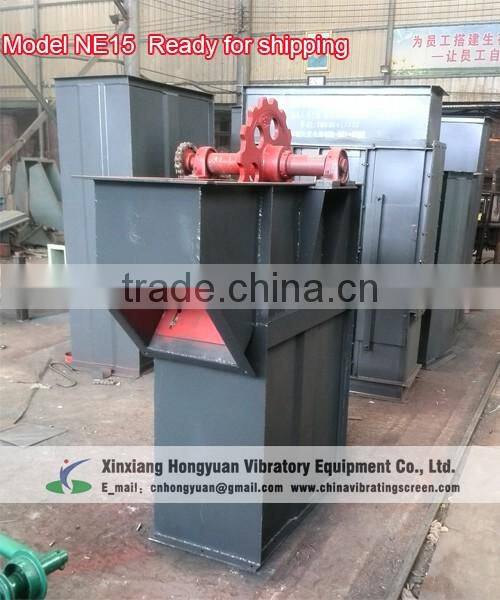

C:NE Plate Chain Types Bucket Elevator
It adopt the Plate Chain as the traction device. It is the new design machine which according to the machine standard rules JB3926-85. It adopts system of the material automatic feeding, and gravity discharging way. The plate chain is high premium quality and strong alloy steel plate chain with the feature of Abrasion Resistance and durable. The drive part adopts reducer with hard tooth surface.

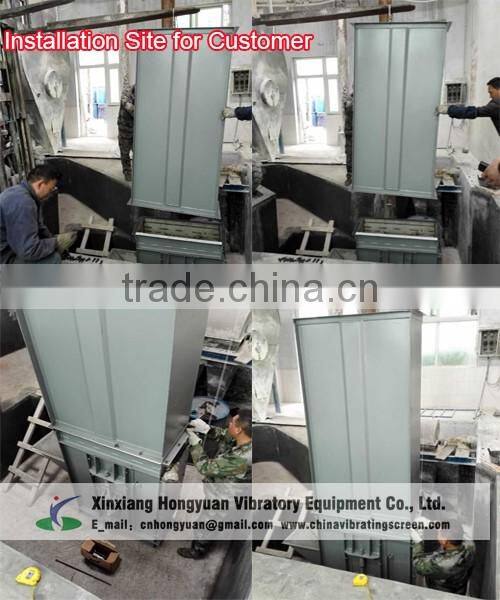

Installation Service Is supported by our Professional Technical Team

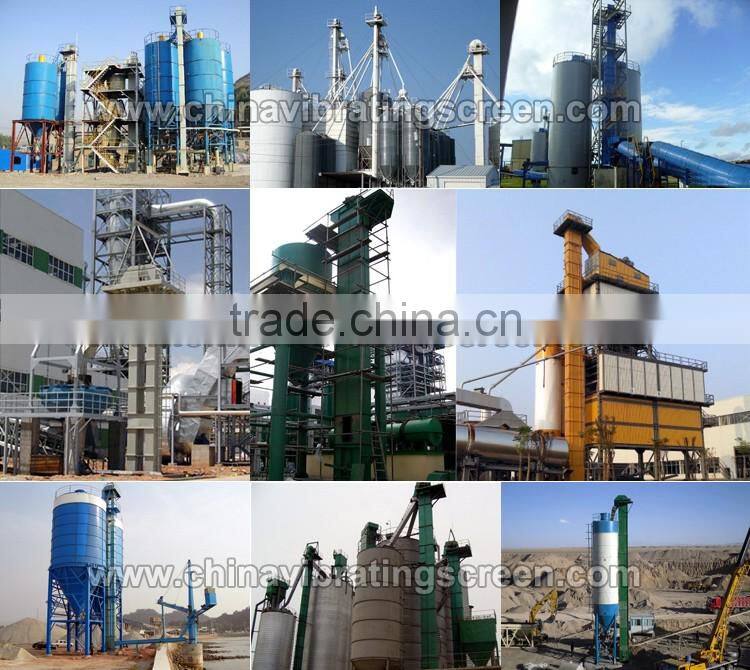

The different models bucket elevator has the wide application for different kinds of industries from agricultural grain to general industrial production or mineral production.
Other Main Mchine
Besides, we also provide other machines,like line vibrating, packaging machine,
circle vibrating machine,Any thing news,please call me as soon as possible.
Any more technical questions or above machine which could not meet your demanding, just contact me by following information freely, I will try my best to reply in 24 hours:
Mob: +86-155-6025-0277
Whatsapp: +86-135-0389-8062
QQ&Wechat: 809043771
Company Profile
Xinxiang Hongyuan Vibratory Equipment Co., Ltd. is one of the famous enterprises that manufacture and sell equipments for screening, conveying and elevating. The company is located in the Hi-tech Development Zone of Henan Xinxiang, which is the largest manufacturing base of vibrating screen in China. The city of Xinxiang also has the advantage of convenient transportation, as the Yellow River is in the north of it, the Beijing-Hong Kong-Macau Expressway is in the east of it, and the Beijing-Guangdong Railway is in the west of it.
The company is specialized in the manufacturer, sales and research of vibrating screen and non-vibrating screen equipment, conveying equipment (screw conveyer, belt conveyer, drag conveyor, vibrating conveyor, magnetic conveyor, high-pressure conveyor and so on), as well as elevating equipment (TD series elevator, NE series elevator, vertical elevator and high-pressure elevator). Presently there are over 200 employees, among them, 65 have professional titles of middle and senior. In the year of 2000, the CAD work station was established by the company, which is an earlier one in the same field. Moreover, our products have scientific design, high performance and reasonable price. Depending on the first-rate products, as well as the advanced technology and equipment, highly competent personnel, strict management, and complete inspecting measures, the company has fostered a good image.
Aiming at high quality and satisfying service, and based on the principles of honesty, pragmatism, innovation and diligent, the company does welcome the old and new customers to communicate and corporate with us.
For over ten years, the company has devoted itself into the manufacture and development of vibratory equipment, which includes vibrating screen and non-vibrating screen, conveyor, feeder, vibrating motor, elevator, etc. In addition, the company not only has the excellent equipment, but also has a comprehensive marketing and after-sale service network all over Asia. Before sales, this network can provide technology support; for sales, it can provide help for business negotiation; and after sales, it can provide guide for installation and application. All in all, this network can assure you satisfying service in the whole process.
At last, the company does want to express the heartfelt thanks to the trust and support of the old and new customers. It is hoped that we can make progress and create a bright future together! Hongyuan does welcome you!
