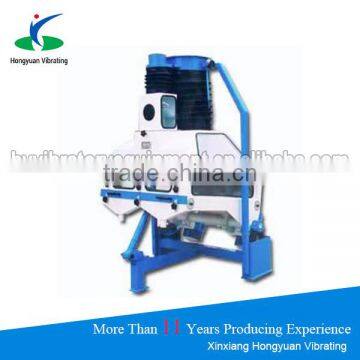

Gravity Classify Destoner for Flour Milling Machine / Gravity destoner machine
- 300 Set / Sets per Month
- Shanghai/Tianjin/Qingdao
- T/T Credit Card
- Hongyuan cumin seed destoner machine remove stone machine
- Customized paddy rice destoner machine / grain cleaning machine
- TQSF Coffee Destoner Machine for farm use
- High efficiency Combine Destoner, Combine Destoning machine, Combine removing stone machine
- Home used flour destoning machine for farm use
- Hot sale destoner, rice destoning machine, rice grinding machine
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Hongyuan |
Model Number: | TQSF-100 | Production Capacity: | 75%-90% | Voltage: | 380V |
Power(W): | 5.5kw | Weight: | 400kg | Dimension(L*W*H): | 1500*1250*1900mm |
Certification: | ISO9001:2008 | Warranty: | One Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
In standard plywood case, one set per case or as per your demand.
Product Description
Gravity Classify Destoner for Flour Milling Machine / Gravity destoner machine
TQSF proportion classifying de-stoner classifies and gets rid of stones combining sifting with airflow. It is mainly used for crude grain primary clearing and getting rid of impurities or stones. What’s more, it can be used for other grain clearing and seeds picking. The machine has the features as follows: high efficiency, good clearing result, low noises, no dust seen, convenient operation and maintenance.
Parameter/Model | TQSF50 | TQSF60 | TQSF80 | TQSF100 |
Sieve size(cm) | 50 | 60 | 80 | 100 |
Output(t/h) | 4-6 | 5-7 | 8-9 | 9-11 |
Screen angle | 5-9 | 5-9 | 5-9 | 5-9 |
Power(kw) | 0.25*2 | 0.25*2 | 0.25*2 | 0.25*2 |
Weight(kg) | 230 | 280 | 340 | 400 |
Wind pressure(kpa) | <980 | <980 | <980 | <980 |
Appearance size(mm) | 1450*780*1800 | 1450*880*1800 | 1450*1100*1800 | 1500*1250*1900 |
1. Modular design for a variety of series and models.
2. Separating stone and other heavy impurities with similar size to grain.
3. Compact size, smooth running, durable and reliable, convenient operation.
4. High destoning efficiency thanks to special fish-scales shaped sieve.
5. No dust leakage due to negative pressure air suction, and air volume is adjustable.
6. The inclination of sieve is adjustable from 10 to 14 degrees, hence it is widely adapted in various grains.
7. Adopt reciprocating mechanism with rubber bearing, less vibrating, low noise.
Grain and rice destoning, such as paddy, wheat, soybean, peanut, rapeseed, etc.
you can use TD series bucket elevator to elevating the materials, click the image to know more information.
