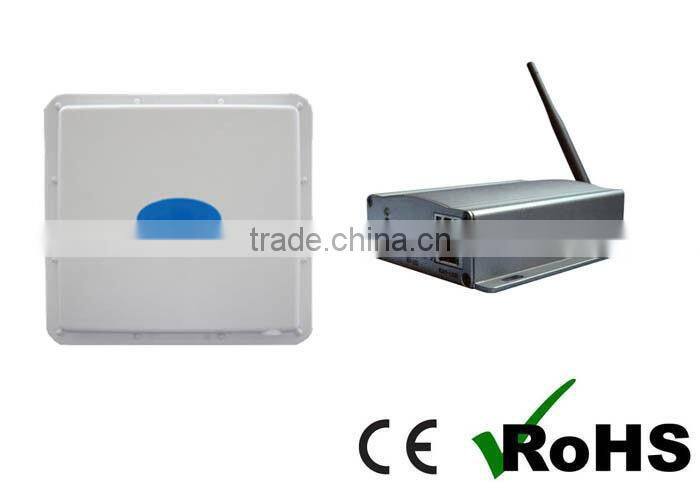

Wholesale 2.4GHz RFID Active Reader
Product Description
F3421 is a high-performance 2.45GHz active RFID reader/writer designed for high challenging RFID application environment. Build-in 15dbi antenna and integrates with interfaces of RS-232,RS-485,USB,Wiegand26/34/42/50,RJ45, which can realize a reading distance of 80-120m. It owns a superior multi-tags reading rate and can achieve a tag identification rate of 1000 tags/s or above.
Specifications:
- Frequency: 2.45GHz Active RFID reader
- Long distance identification, strong receiving sensitivity
- Excellent anti-collision performance
- Little RF Power (No more than 1dBm, transmitting power ≤2mw), which is suitable for human carry and environment friendly Multiple communication interfaces, also can be customized
- Self-development communication protocol and can customize and expand as your requirement
- Compatible to other tag protocol and improve the performance of system application
| Technology specifications | |
| Operating frequency | 2.4GHz~2.5GHz ISM |
| Identify direction | Directional |
| Antenna | 15dBi build-in antenna |
| RF power range | -30dBm~0.0dBm( adjusted by 32 grade) |
| Receiving sensitivity | -90.0dBm |
| Operating mode | FHSS or fixed frequency(set by software) |
| Modulation | GFSK |
| Reading range | 80~120m adjustable |
| RSSI reader can be adjusted less than 10m | |
| Anti-collision | Up to 800-1000 tags read simultaneously |
| Buffer capacity | 2000 tags data |
| Communication speed | 25Kbps, 1Mbps, 2Mbps(adjustable) |
| Communication interface | RS-232, S-485, Ethernet, Wiegand26/34/42/50 |
| Input and output | 1 triggering input, 1 relay output |
| Optional function | 2 relays, CAN, RSSI, ID match function, Offline function, Time function |
| Power supply | AC input: 100~240V, 50/60Hz 1.2A |
| DC output: 5V/1A | |
| Product size | 225mm*225mm*100mm |
| Packing size | 450mm*300mm*140mm |
| Gross weight | 2.78kg |
| Net weight | 1.82kg |
| Working temperature | -20°C~+70°C(-4~+158 degree F) |
| Storage temperature | -40°C~+85°C (-40~+185 degree F) |

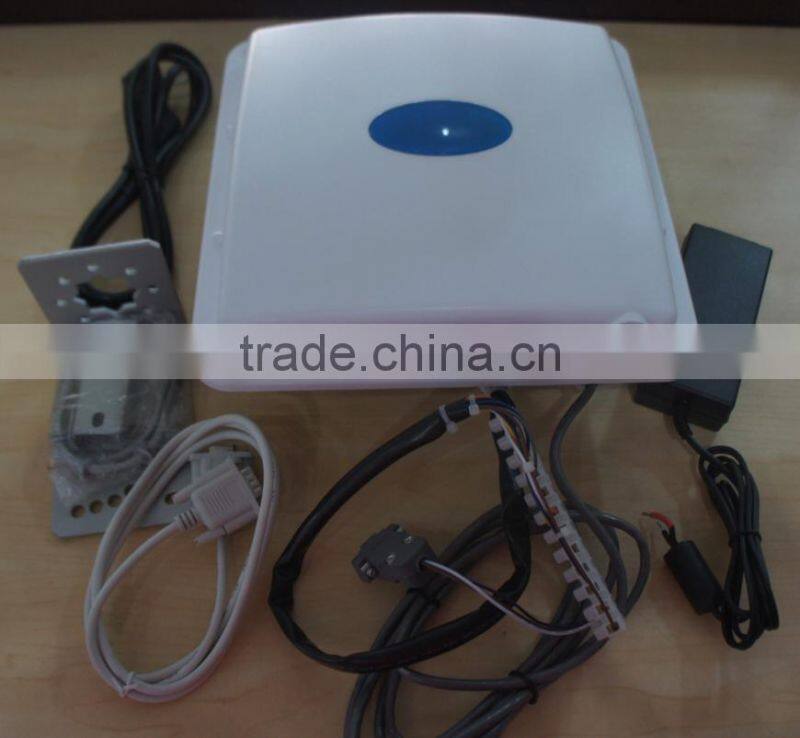

| Accessories | Power adapter, Power cable, RS-232 cable, Mounting bracket |
| Working status indication | Buzzer |
| Application scenarios | |
| 1. Intelligent transportation management | |
| 2. Intelligent management in traffic police, patrolman etc | |
| 3. Asset identification,tracking and checking management | |
| 4. Position moniter management for baby, prisoner, olders psychotic etc. | |
| 5. Electronic ticket, access control, time attendance, school management etc. | |

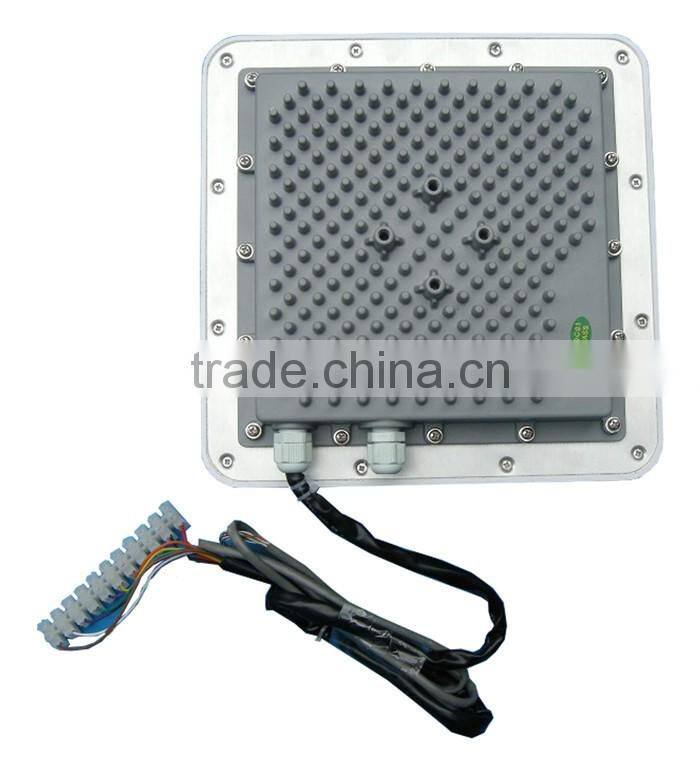

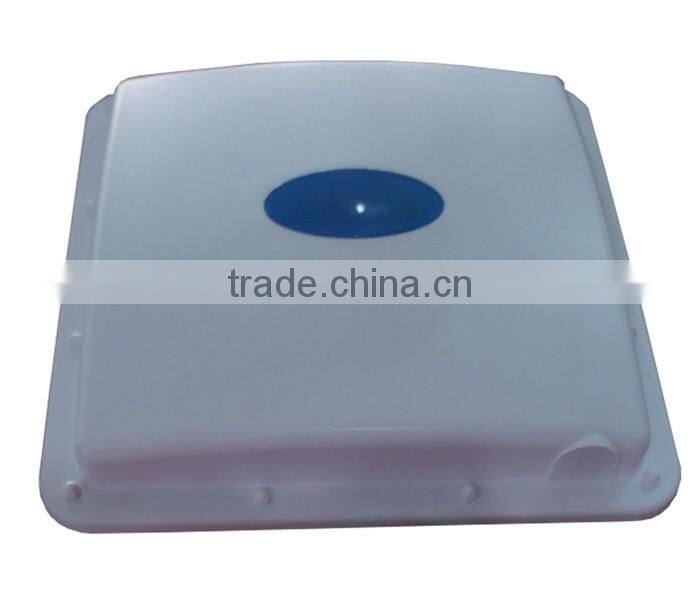

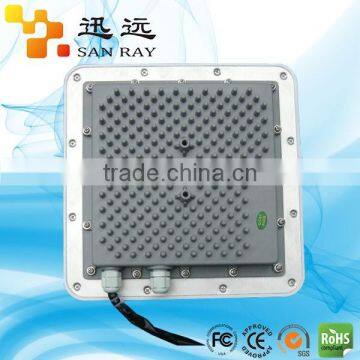

Detail Pictures:
