Specifications
1.Alien H3 chip with 800-bits of Nonvolatile Memory2.ISO/IEC 18000-6C compliant
3.840-960MHz
4.Best price
5.Fast delivery

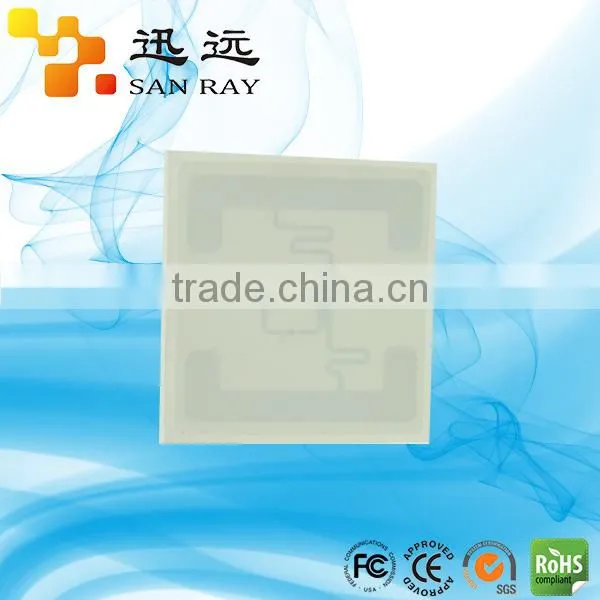

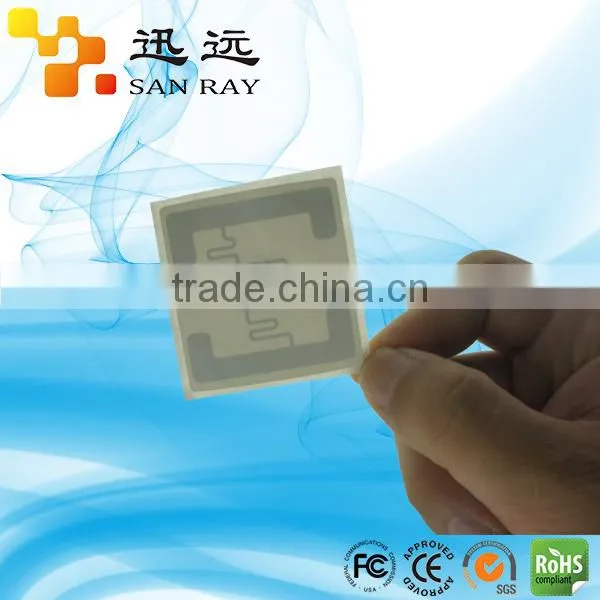

Alien 9634 passive wet inlay uhf rfid tag sticker
The Alien Technology® ALN-9634 “2x2” is a general-purpose RFID inlay, designed for use in baggage tags and larger items, including apparel and pharmaceutical bottles.
Key advantages of passtive UHF RFID tag Alien 9634 inlay
1. Quadrate design provides good cost performance for vertical label encapsulation.
2. High performance design, applicable to small-sized objects, such as clothing tags, airline baggage tags and plastic drug labels
3. It's a large form-factor tag
4. Multiple frequency optimized sensitivity
Main Applications of pastive UHF RFID tag Alien 9634 inlay
• Apparel hang tags
• Larger pharmaceuticals
• Baggage
Details of passtive UHF RFID Tags UHF RFID tag Alien 9634 inlay
World Tag with global operation between 860 - 960MHz
EPCglobal Class 1 Gen 2 (version 1.2.0) compliant
ISO-18000-6C compliant

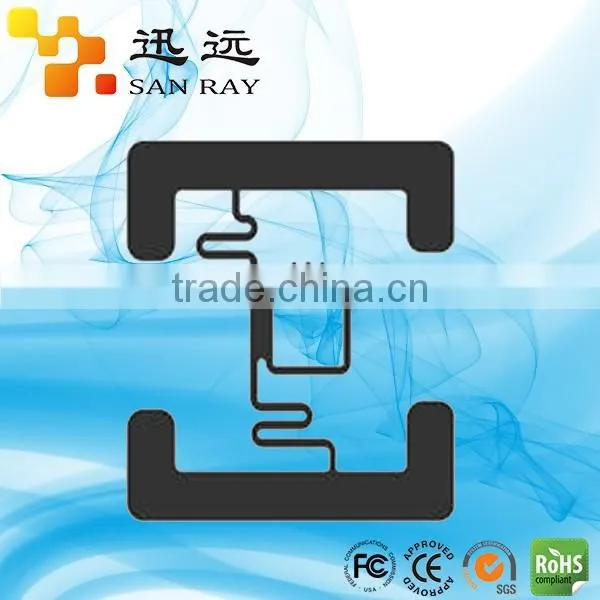

Antenna dimensions: 44mm x 46mm
Powered by the industry leading Higgs-3 IC boasting a total of 800 bits of memory, including:
A 32-bit unalterable TID
A 64-bit unalterable Unique TID (UTID) for counterfeit and authentication purposes
A 96-bit EPC memory bank extensible to 480-bits
A 512-bit User memory bank
Access and Kill passwords
Supports all mandatory and optional Gen 2 commands, including item level
Custom commands include provisions to hide data from unintended viewers
Dry Inlay
Antenna Width | 1.73” [44.0mm] |
Antenna Length | 1.81” [46.0mm] |
Web Width (-FRA) | 2.26” [57.5mm] |
Web Width (-FSRA) | 1.87” [47.5mm] |
Web Pitch | 2.125” [53.975mm] |
Core Width (-FRA) | 2.26” [57.5mm] |
Core Width (-FSRA) | 1.87” [47.5mm] |
Core ID | 6.0” [152.4mm]* |
Core Material | Fiberboard |
Inlays per Roll | 7,500 Nominal |
Maximum Roll OD | < 16.0” [406.4mm] |
Roll Labeling Data | Roll #, Quantity |

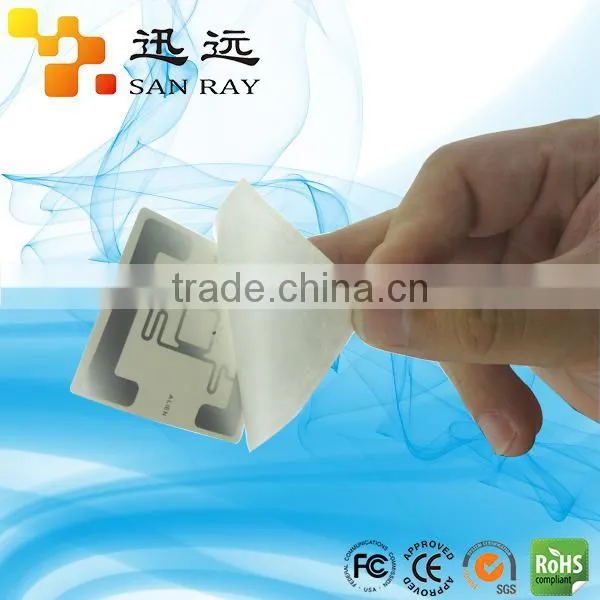

Wet Inlay
Inlay Width | 1.85” [47.0mm] |
Inlay Length | 2.01” [51.0mm] |
Web Width (FWRWA) | 1.98” [50.4mm] |
Web Pitch | 2.125” [53.975mm] |
Core Width | 1.98” [50.4mm] |
Core ID | 6” [152.4mm]* |
Core Material | Fiberboard |
Inlays per Roll | 7,500 Nominal |
Maximum Roll OD | < 16” [406.4mm] |
Roll Labeling Data | Roll #, Quantity |
Overlay (-FWRWA) | TT Printable White Film Overlay |
Overlay Adhesive (-FWRWA) | General Purpose Permanent |
Inlay Adhesive | General Purpose Permanent |
Adhesive Application Temperature | > +25ºF [-4ºC] |
Adhesive Service Temperature | -40ºF to +200ºF [-40ºC to +93.3ºC] |
Release Liner | 40# SCK |
Environmental
Shelf Life | 2 years at +77°F [+25°C] @ 40%RH |
Recommended Storage | +77ºF [+25°C] @ 40% RH |
Storage Limits | -13°F to 122°F [-25°C to +50°C] 20% to 90% RH Non-condensing |
Operating Limits | -40°F to +158°F [-40°C to +70°C] 20% to 90% RH Non-condensing |
Bend Diameter | > 1.97” [50mm] |
Pressure | < 5N/mm2 |
Drop Resistance | Per ASTM D5276 |
Write Cycles | 100,000 @ 25°C |
RoHs | 2002/95/EC, 2005/618/EC, 2011/65/EU Compliant |
REACH | 1907/2006/EC Compliant (SVHC and ECHA)
|
ESD Limit– HBM / CDM | 5.0kV / 1.5kV |
RFID
Protocols Supported | ISO/IEC 18000-6C EPCglobal Class 1 Gen 2 |
Integrated Circuit | Alien Higgs-3 |
EPCglobal Certificate | 950110126000001084 |
Operating Frequency | 840--960 MHz |
EPC Size | 96--480 Bits |
User Memory | 512 Bits |
TID | 32 Bits |
Unique TID | 64 Bits |
Access Password | 32 Bits |
Kill Password | 32 Bits |
Overviews of passtive UHF RFID tag Alien 9634 inlay
We also have different kinds of UHF RFID devices, such as modules, readers, antennas, inlays, metal tags, etc.. Pls feel free to contact us for datasheet, catalogue or price. Hope we can be of assistance and provide you our best products and solutions.
How to order
Please chat with us through TradeManager or click "contact supplier" to leave massage about the quantity,special model you want or your requirement. Then we will reply to you ASAP.
After we confirm all detailed information, we Will Make PI (Performa Invoice) for you to confirm the order if you need.
Payment terms
1. We accept PayPal, Western Union and Bank transfer.
2. 30% deposit and 70% before shipping.
3. No payment collection. We only can deliver goods after getting full payment.
If you are interested in our passtive UHF RFID tag Alien 9634 inlay,please kindly contact
