110V ac water pump

with strong seaworthy carton.

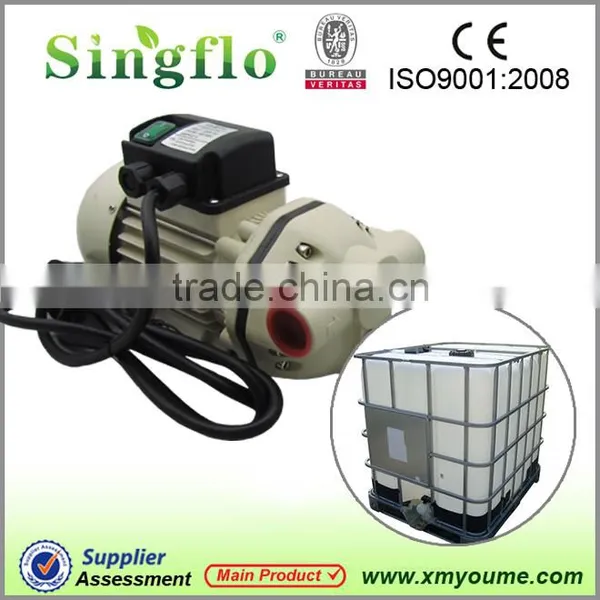

 Singflo 110v ac water pump

 Chemical transfer pumps SPECIFICATION

PUMP Design:   5 chamber diaphragm

Motor Design:   Permanent magnet DC/AC

Voltages:       12, 24VDC,115/230VAC

Pump Body:     Aluminium

Diaphragm: Viton

Check valves: Viton

Max. Flow Rate:   30~50LPM

Max. Pressure:   40PSI (2.75BAR)

Liquid Temp:     40°F (5°C)MIN;

140°F (60°C)MAX

Duty cycle:     Continuous work with self-ventilated

Weight:        5.5KG for DC pump  6.5KG for AC pump

Certifications: CE

Port Size inlet/ outlet: 3/4”  1''

Chemical pumps techniocal data:

• Permanent magnet and continuous duty
• Built-in pressure switch automatically starts and stops
• Pump when faucets is opened
• Self-priming 3m so pump can be located above water tank
•  Runs dry for extended periods of time without damage
• Hold excellent motor keep stable temperature of pump body

Chemical pumps DC MOUNTING:

The HV Series pumps are self-priming and may be located above or below the water supply in a dry location. To vertically mount these units, it is best to do so with the motor on top. This will prevent water dripping on the motor in the event of a leak. Place pump on a solid surface and secure with four mounting screws; be careful not to compress the rubber grommets, which act as vibration dampers.

Chemical pumps AC assembled:

  Chmeical pumps  test machine:

 Chemical pumps CE Certificate :

Sample is warm welcomed.

Any interested, pls no hesitate to contact us:

Tel:0086-592-5612511

Skype:tracy9181

Whatsapp:15880967061

We chat:15880967061
