Bag Packaging Machine

Specifications

Itaas suitable to use in packing the high accuracy and easy fragile material , such as : puffy food , crispy rice , Potato Chips

Specifications

Snack packaging machine

1. Description:

Applications

It’s suitable to use in packing the high accuracy and easy fragile material , such as : puffy food , crispy rice , Potato Chips , Snacks , candy , pistachio , sugar



Specification

Speed : 15-80bag/min

Bagsize: L 50-300 W 60-200mm

Capacity : 150-1300ml

Film thickness : 0.04-0.08mm

Power : 2.2KW/220V 50-60HZ

Machine weight : 400kg

Double belt

servo film drawing and PLC control

2. The unit included:

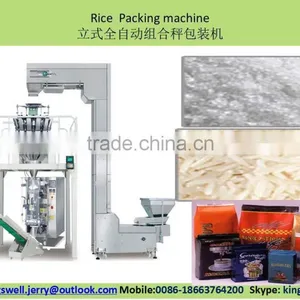

a)   SP-520 large vertical packing machine

b)   10 or 14 heads combination weigher

c)   Z type bucket elevator

d)   Vibration feeder

e)   supporting platform

 f)   product conveyor



3. The major performance and structural feature

PLC control with touch panel-step by step instruction.

Equipped with servo winding system,pneumatic control system.

The maximize to improve the whole machine precision, reliability and stability.

use intellectual temperature controller,the high temperature control to ensure neat sealing.

the perfect automatic alarm safety protection,little waste.the machine will automatically complete all packaging processes from feeding, measuring, filling, Printing ,finished bag





4,The main components of packing machine:



Number    Name            Brand         Country

1    Touch sensitive screen   WEINVIEW   TAIWAN

2    PLC                    MITSUBISHI JAPAN

3    Servo motor           SIEMENS      GERMAN

4    Horizontal cylinder        SMC     JAPAN

5    Vertical cylinder        SMC     JAPAN

6    Two units system             JINQI       TAIWAN

7    Solid state relay           OMRON  JAPAN

8    Intermediate state relay   OMRON  JAPAN

9    Photoelectric eye        AUTONICS KOREA

10  Power                      MW        TAIWAN

11  Thermometer control     YA TAI     SHANGHAI

12  Cutting cylinder           SMC        JAPAN

13  Printer code           TIAN YI     FU JIAN



5,The other device of packing machine:

Z type material conveyer Includes Vibration feeder

  It’s suitable use in delivery the grain, food, food stuff etc.

  Conveyor with the character of large quantity. NO crash material.

High Lifting etc. Lifting height: 3.3-10m (according to customer’s requires),It can be made both stainless steel and plastic painted .The contact parts of food grade plastic.



Product conveyor:

send the finished bag to Rotary Collecting table



Rotary Collecting table:

a accessorial equipment of automatic packaging line which can collect the finished bag



This machine is featured with fair price , save labour



 6,Optional



1) Gusset bag making device                                         2) Hole punching                                                     3) Linked bag devic



7,Other modles



Client can choose different modles such as the machine of SP-398, SP-420, SP -520. SP -720 depend on bag sizes



8. Voltagein China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries



9. Machines Materials:All the machines are made by stainless steel(also can be made in carbon steel frame according customer demand)





9. Flow chart







11. The unit included





12. Outside package: Standard export wooden case. Inner package: stretch film





13. Our cooperation with overseas customers



 At present, Our Company locks in 70% market share in China, and our products have been selling well to Germany, Australia, Ukraine, Malaysia, Indonesia, Syria, Philippine, Thailand, Romania, South America, Middle East, Africa and other countries or regions.



a. Customer visiting our factory







b. Installation & commissioning in customer's factory



c. Reference customer's list







14. About US



We, Jinan Sunpring Machinery & Equipment Co., LTD., is a professional food machinery manufacturer in China. An exceptional engineering team, personal customer service center and high-quality manufacturing capabilities have evolved exponentially since our humble beginnings in 2004, making us one of the preeminent providers of reliable extrusion equipment world-wide. We can guarantee customers superior quality machines up to design requirements and perfect working state. Our technicians can also provide all kinds of relevant technology to make the food production clean, healthy and safe.



Sunpring Company has its own manufacturing plants workshops in China, business scope covering mainly machinery and equipment for corn meal milling system, corn flakes & breakfast cereal system, baby food system, corn puff snacks system, pellets system, artificial rice system, soy nuggets system; as well as pet food/fish food system. Sunpring Company engages in the technical research of extrusion foodstuff, in order to let our clients have superior foodstuffs to sell in the market. We can improve client's equipment and provide related training on new advanced technique. We can also make special designs for special products and materials according to clients' special requirements.







 15. We Provide Satisfied Service & Turnkey Solution



b. We have high diathesis staff and excellent processing equipment, and quality control runs through the whole production process from parts stock to the beginning of production.



c. We can guarantee customers superior quality machines up to design requirements and perfect working state.



d. Our technicians can also provide all kinds of relevant technology to make the food production clean, healthy and safe.



e. We will dispatch our technicians to your factory to guide you installation and commissioning work and training your operator.



f. We provide 1 year complete Guarantee and life-time maintenance service.



If you have any needs or enquiries, please feel free to contact me. Thank you very much!
