Home > Products > Freezer dryer > High Efficiency Intelligent Condensing Temperature FD -20 Food Freeze Dryer

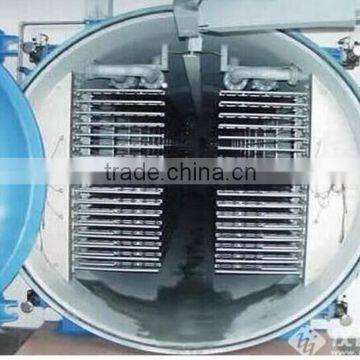

High Efficiency Intelligent Condensing Temperature FD -20 Food Freeze Dryer
- 1000 Set / Sets per Month
- shanghai
- Credit Card
-
Freeze drying machine /Vacuum freeze dryer
-
High quality vacuum freeze dryer with lowest price
-
commercial fruits and vegetables dryer/vacuum freeze fruit and vegeable dried drying machine
-
electric 50 trays food dryer freeze dryer price
-
efficient CE & ISO approved Vacuum freeze dryer with LCD display dryer machine sale for food vegetable fruit
-
Good price Fruit and Vegetable Vacuum Freeze Dryer// Microwave drying machine for fruit
Product Details
| Condition: | New | Type: | Vacuum Drying Equipment | Place of Origin: | Shanghai, China |
| Brand Name: | JKI | Model Number: | JK-FD-20N | Voltage: | 220V 50HZ |
| Power(W): | 15kw | Dimension(L*W*H): | 1560*450*1340mm | Weight: | 100kg |
| Certification: | ISO | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
High Efficiency Intelligent Condensing Temperature FD -20 Food Freeze Dryer
Medium vacuum freeze dryer machine, automatic freeze dryers, production freeze dryers, freeze-drying equipment
Specializing in the production of fruits and vegetables food vacuum freeze dryer lyophilizer automatic, custom
Integrated electric heating heating tray freeze dryer, automatic pharmaceutical lyophilizer fruits and vegetables
Pilot vacuum freeze dryer lyophilizer automatic large-scale production, custom
Production of vacuum freeze-drying machine automatic pharmaceutical freeze dryer lyophilizer fruit
|
|
|
|
|
|
|
|
| |
model | JK-FD-0.5N | JK-FD-1N | JK-FD-5N | JK-FD-10N | JK-FD-20N | JK-FD-50N | JK-FD-100N | JK-FD-200N |
|
Dryig area(square meter) | 0.5 | 1 | 5 | 10 | 20 | 50 | 100 | 200 |
|
capacity of original material | 5KG | 10KG | 50KG | 100KG | 200KG | 500KG | 1000KG | 2000KG |
|
Tray size mm | 400/300 | 500/400/ | 800/650 | 1000/1000 | 1000/1000 | 1000/1000 | 1000/1000 | 1000/1000 |
|
Type of tray | Stainless steel trays or gridding plate | Stainless steel trays or gridding plate | Stainless steel trays or gridding plate | Stainless steel trays or gridding plate | Stainless steel trays or gridding plate | Stainless steel trays or gridding plate | Stainless steel trays or gridding plate | Stainless steel trays or gridding plate |
|
Quantity of tray | 4 pieces | 5 pieces | 10 pieces | 10 pieces | 20 pieces | 50 pieces | 100 pieces | 200 pieces |
|
working method | Frozen, freeze-dried | Frozen, freeze-dried | Frozen, freeze-dried | Frozen, freeze-dried | Frozen, freeze-dried | Frozen, freeze-dried | Frozen, freeze-dried | Frozen, freeze-dried |
|
Material of container | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel |
|
control method | Microcomputer control system, colorful LCD touch display, recording | Microcomputer control system, colorful LCD touch display, recording | Microcomputer control system, colorful LCD touch display, recording | Microcomputer control system, colorful LCD touch display, recording | Microcomputer control system, colorful LCD touch display, recording | Microcomputer control system, colorful LCD touch display, recording | Microcomputer control system, colorful LCD touch display, recording | Microcomputer control system, colorful LCD touch display, recording |
|
vacuum pump | Two-stage rotary vane vacuum pump | Two-stage rotary vane vacuum pump | Rotary vane vacuum pump + Roche vacuum pump | Rotary vane vacuum pump + Roche vacuum pump | Rotary vane vacuum pump + Roche vacuum pump | Rotary vane vacuum pump + Roche vacuum pump | Rotary vane vacuum pump + Roche vacuum pump | Rotary vane vacuum pump + Roche vacuum pump |
|
working vacuum degree | ≤ 130pa | ≤130pa | ≤130pa | ≤130pa | ≤130pa | ≤130pa | ≤130pa | ≤130pa |
|
ultimate vacuum | <10pa | <10pa | <10pa | <10pa | <10pa | <10pa | <10pa | <10pa |
|
compressor | Imported compressor | Imported compressor | Imported compressor | Imported compressor | Imported compressor | Imported compressor | Imported compressor | Imported compressor |
|
Trays temperature | -40- 60℃ | -40- 60℃ | -40-60℃ | -40- 60℃ | -40- 60℃ | -40-60℃ | -40-60℃ | -40- 60℃ |
|
heating method of trays | Ceramic Heater | Ceramic Heater | Ceramic Heater | Ceramic Heater | Ceramic Heater | Ceramic Heater | Ceramic Heater | Ceramic Heater |
|
Catch water capacity 12 hours | ≥ 5KG | ≥ 10KG | ≥ 50KG | ≥ 100KG | ≥ 200KG | ≥ 500KG | ≥ 1000KG | ≥ 2000KG |
|
defrosting metod | Electric heating | Electric heating | Electric heating | Electric heating | Electric heating | Electric heating | Electric heating | Electric heating |
|
Cold water vapor | NO NEED | NO NEED | NO NEED | NO NEED | NO NEED | NO NEED | NO NEED | NO NEED |
|
Power | Single or three-phase power | Single or three-phase power | three-phase power | three-phase power | three-phase power | three-phase power | three-phase power | three-phase power |
|
Working Temperature | ≤ 40℃ | ≤40℃ | ≤40℃ | ≤40℃ | ≤40℃ | ≤ 40℃ | ≤ 40℃ | ≤ 40℃ |
|
Rated power | 2.5kw | 3kw | 8kw | 14kw | 22.5kw | 28kw | 38kw | 55kw |
|
The general working period | 6 hour | 6hour | 6hour | 6hour | 6hour | 6hour | 6hour | 6hour |
|
Pirce | 12300USD | 15300USD | 23000USD | 43000USD | 61500USD | 100700USD | 163000USD | 240000USD |
|
