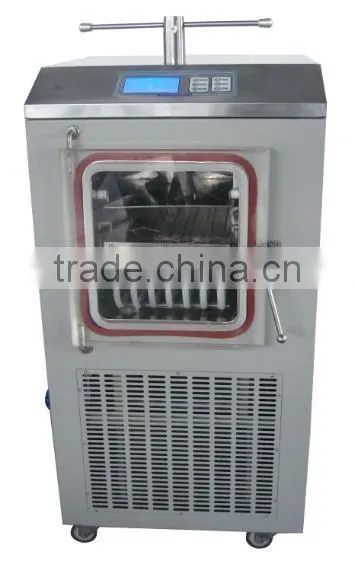

Help CenterTPV-10G Electric Heated Drying Euipment Bio Medical Vacuum Freeze Dryer With LCD Display
Related Products
-
TPV-10G Top-press Vacuum Freeze Dryer With PID Controller and Touching ScreenUS$ 1 - 3,000MOQ: 1 Set -
TPV-10G Top-press Vacuum Freeze Dryer With Touching ScreenUS$ 5,000 - 9,000MOQ: 1 Set
-
TPV-30F Oil Heated Drying Vacuum Freeze Dryer for Fruit Food MeatUS$ 10,000 - 30,000MOQ: 1 Set
-
Freeze Dryer With Silicon Oil Heating Lyophilizer Equipment For Food FruitUS$ 15,900 - 39,999MOQ: 1 Set
-
TPV-30F Silicon Oil Heating Freeze Dryer Lyophilizer Equipment For Food Fruit (in Situ Drying, Drying Curve Display)US$ 10,000 - 30,000MOQ: 1 Set

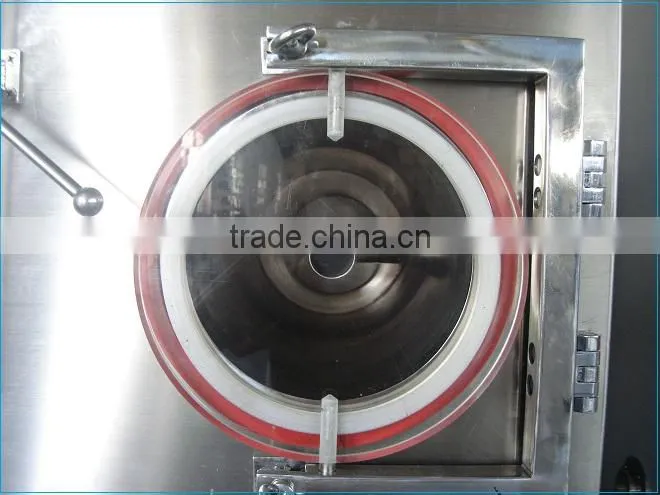

1. The process of pre-freezing and drying finishes in situ. The freeze dryer is equipped with observation windows and the drying process is intuitive;
2.The partition board temperature is adjustable and controlled;
3. Touching-screen operation, PID controlling, displaying drying curve;
4. The sample tray is square so it’s easy to clean and operate;
5. Valve with nitrogen is optional;
6.With gland function can achieve vacuum seal;
7. LCD display: partition board temperature curve, cold trap temperature curve, sample temperature curve, vacuum degree curve and combination curve;
8. stored 16 programs, each program can be set up 32 segments, correct program data in computing, memorize the drying curve;
9. PID control circuit system so that more precise control accuracy;
10. With RS232 interface, the computer can be connected directly to realtime display and print the freeze-drying curve.
Technical indices of TPV-10G Electric heated Top-press Vacuum Freeze Dryer :
1. freeze-drying area: 0.1 square meter
2. layers of partition board: 1 layer
3. temperature scope of partition board: -60°C~65°C
4. partition board space: 70mm
5. size of partition board: 265mm*400mm*25mm
6. cold trap temperature: ≤-80°C(empty)
7. water-capture capability: 1.5kg/24h
8. material: 1L
9. electric defrost: none
10. vacuum degree: ≤10Pa
11. style of cooling: wind style,temperature≤25°C
12. dimension: 820*650*1550(mm)

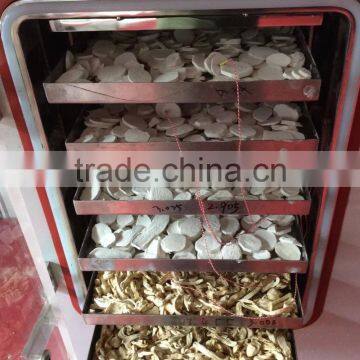

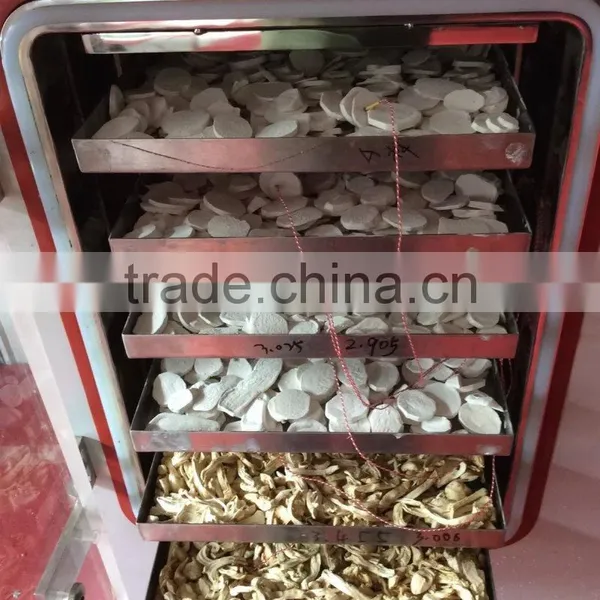

freeze Dryed samples
