factory air cooler air conditioner spare parts
USD $1 - $460
/ Set
1 Set(Min.Order)
- 2000 Set / Sets per Month
- Fuzhou
- T/T Credit Card PayPal
You May Like
-
commercial air curtain tropical air conditioner
-
roof low energy air conditioner air conditioner small size
-
duct brand name air conditioner desert air conditioner
-
Variable split wall mounted air conditioner commercial desert cooler
-
Portable super quiet window air conditioner super general air conditioner
-
Axial air condition parts industrial air cooler
Product Details
| Condition: | New | Type: | Evaporative Air Cooler | Place of Origin: | Fujian, China |
| Brand Name: | ESC | Model Number: | ESC12-18D-4 | Operating Voltage: | 380/400 VAC |
| Mounting: | Wall / Window Mount | Certification: | CE | After-sales Service Provided: | Overseas third-party support available |
Product Description

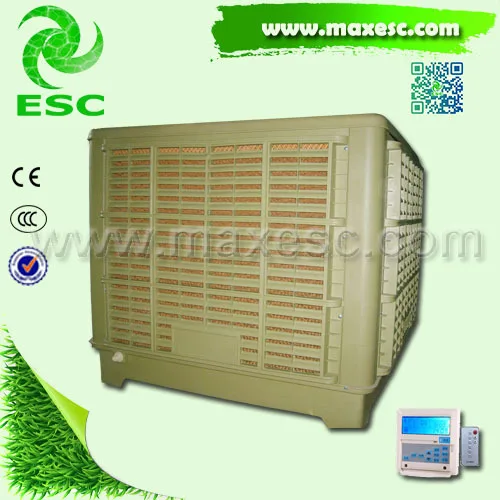

factory air cooler air conditioner spare parts

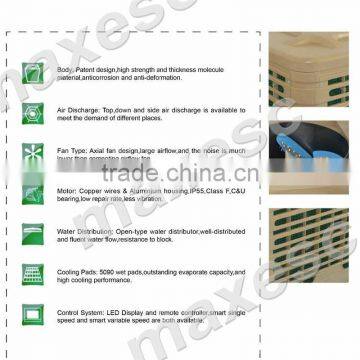

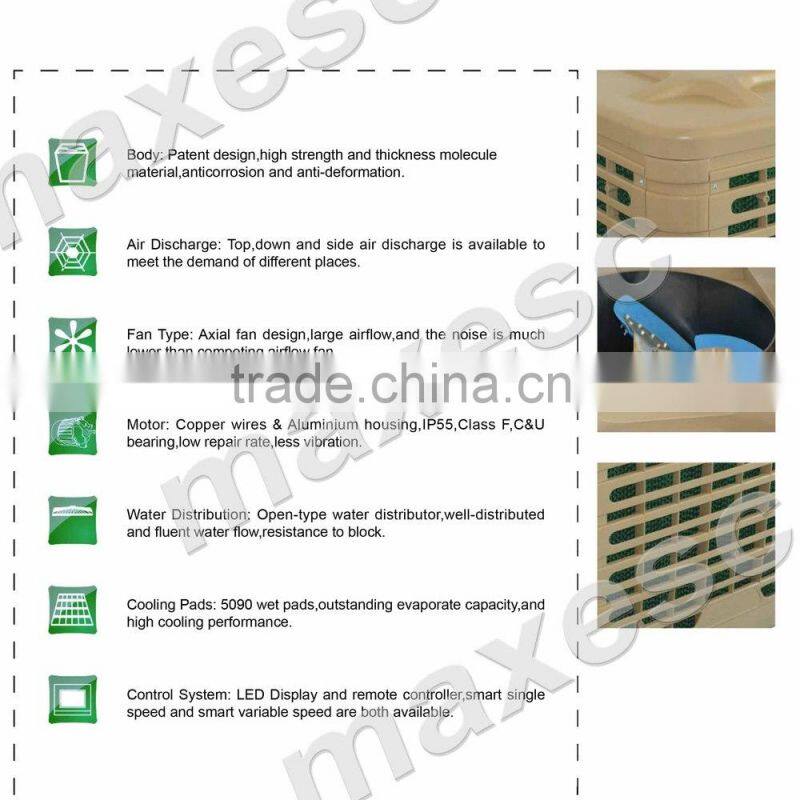

Why Choose Our Air Cooler?
A. Our evaporative air cooler The casing is made of high strength weather ability polymers which is
UV-proof,anti-aging, and resistant to deformation.
B. Different air discharge type(including top, down and side)can meet different installation
requirements of various applications.
C. Using specially designed axial fan, with large airflow, low noise, low energy consumption and
wide applicability.
D. Using high quality aluminum housing motor, with good heat dissipation, high protection grade,
waterproof and moisture-proof.
Specification :
| Model | ESC31-18T-4 ESC31-18D-4 | ESC12-18T-4 ESC12-18D-4 | ESC31-20T-4 ESC31-20D-4 | ESC12-20T-4 ESC12-20D-4 |
| Airflow(m3/h) | 18000 | 18000 | 20000 | 20000 |
| Air Pressure (pa) | 180 | 180 | 200 | 200 |
| Output(kw)/h | 1.1 | 1.1 | 1.5 | 1.5 |
| V/Hz | 380/50 | 220~240/50~60 | 380/50 | 220~240/50~60 |
| Fan Type | Axial | Axial | Axial | Axial |
| Fan Speed | Single speed | Variable 12 speeds | Single speed | Variable 12 speeds |
| Water tank (Liter) | 40 | 40 | 40 | 40 |
| Cooling area(m2) | 100-150 | 100-150 | 100-250 | 100-250 |
| Dimension L*W*H(mm) | 1100*1100*950 1100*1100*920 | 1100*1100*950 1100*1100*920 | 1100*1100*950 1100*1100*920 | 1100*1100*950 1100*1100*920 |
| Outlet size(mm) | 660*660 | 660*660 | 660*660 | 660*660 |
| Noise (db) | ≤71 | ≤68 | ≤73 | ≤76 |
| Net.wet(kg) | 85 80 | 85 80 | 85 80 | 85 80 |
| Controller | Mechanical Switch | Remote+LED display | Mechanical Switch | Remote+LED display |
| Max Current | 5A | 5A | 5A | 5A |
| Water Consumtion | 15-25L/H | 15-25L/H | 15-25L/H | 15-25L/H |
| Material | Improve newpp which UV-proof,anti-aging,and resistant to deformation. | |||
| Discharge | UP,Down,Side | UP,Down,Side | UP,Down,Side | UP,Down,Side |
| Cooling Pad Thickness(mm) | 100 | 100 | 100 | 100 |
| Cooling pads spec | 5090 | 5090 | 5090 | 5090 |
| Auto drain (Auto clean) | - | Yes | - | Yes |
| overload portection | - | Yes | - | Yes |
| intelligent clean | - | Yes | - | Yes |
| Temperature & humidity display | - | Yes | - | Yes |
| New function-exhaust smell air from room | - | Yes | - | Yes |

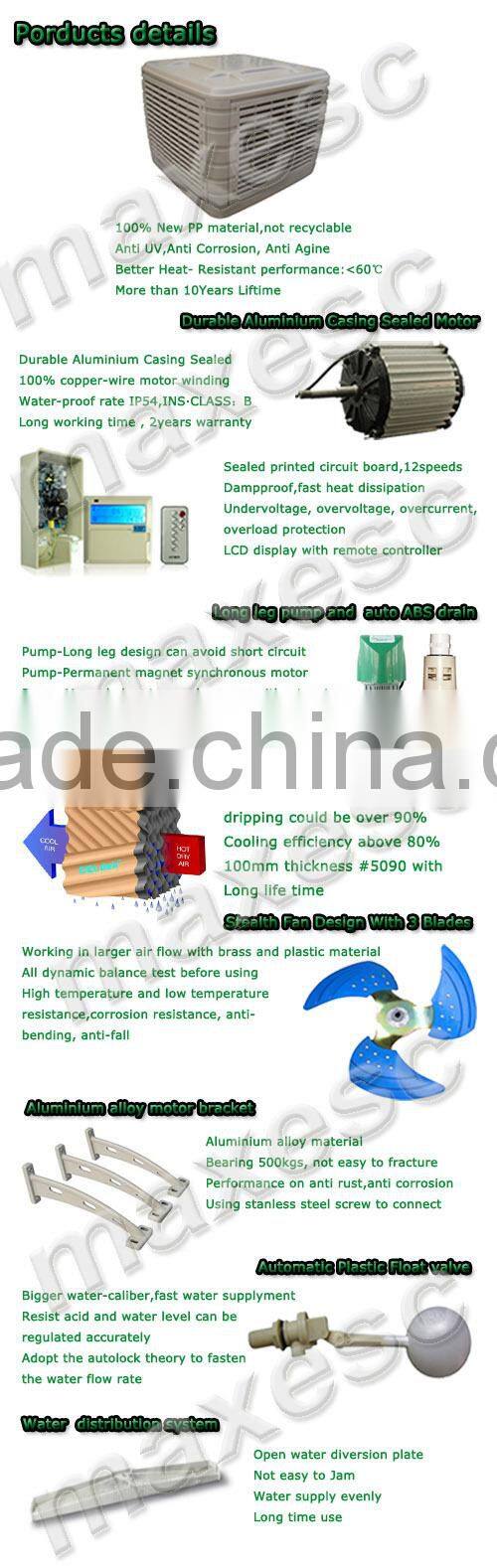

Spare Parts Details

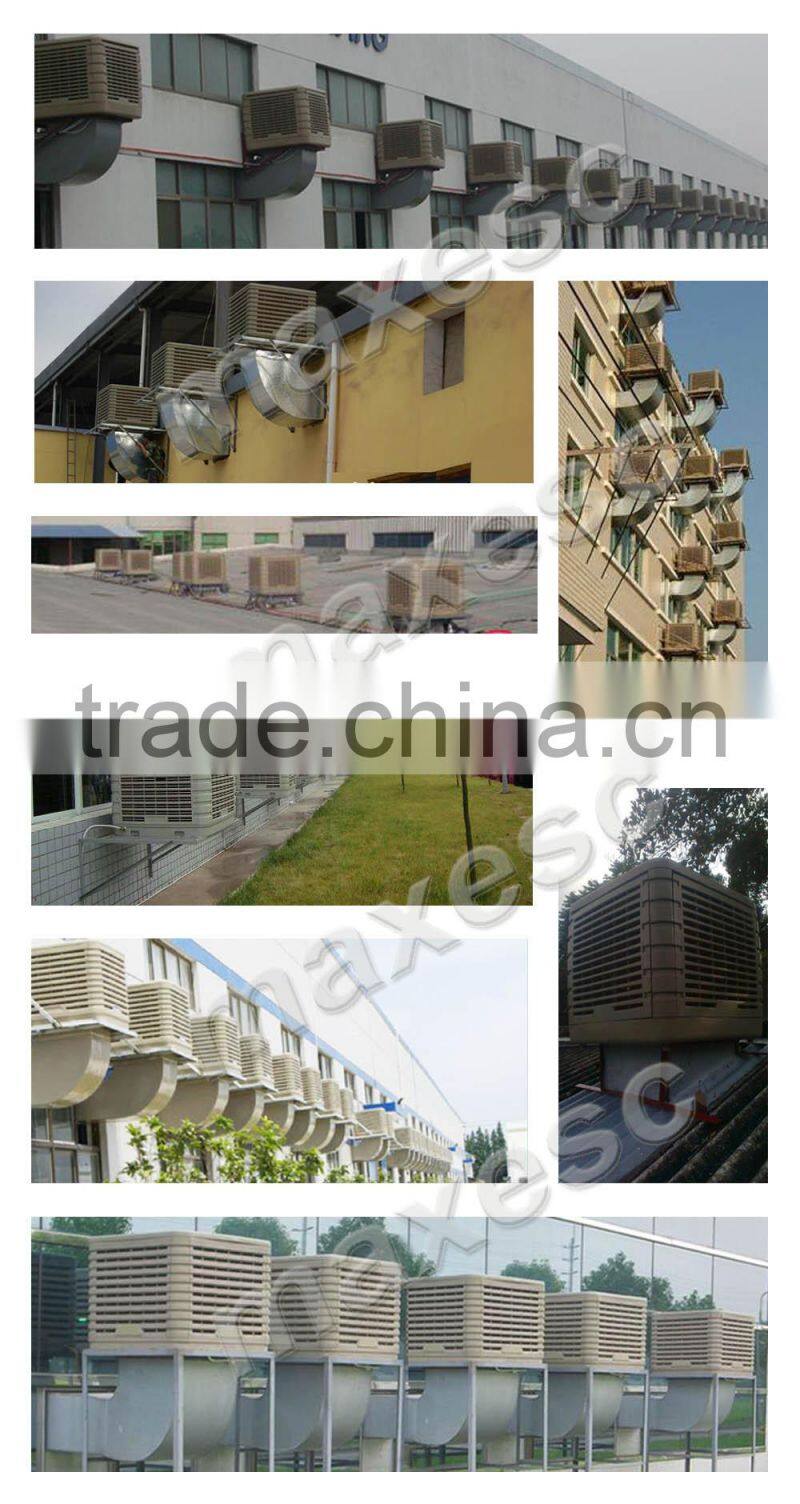

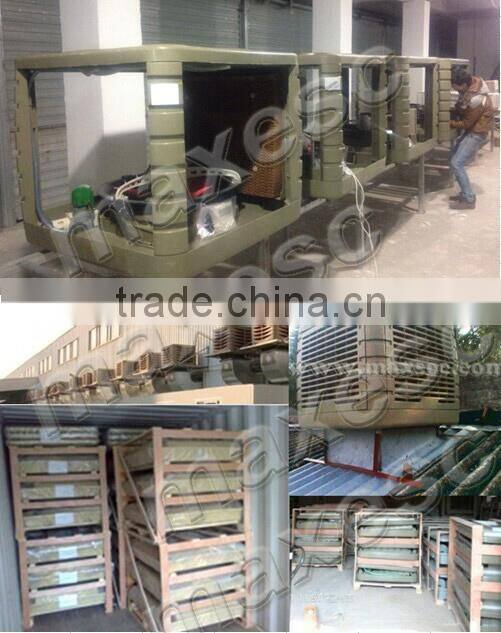

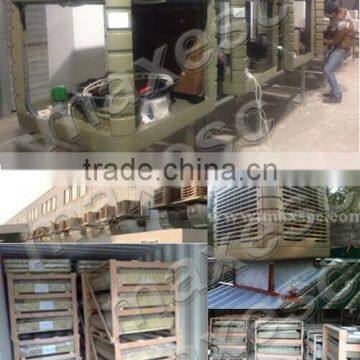

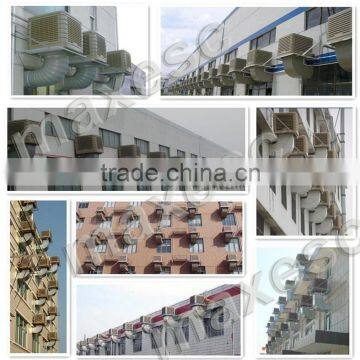

Project,Packing And Shiping Photos

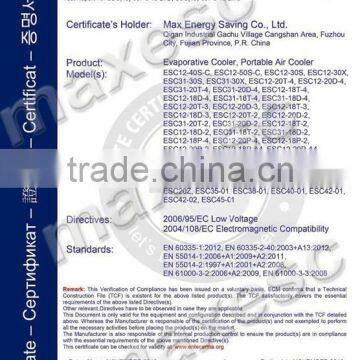

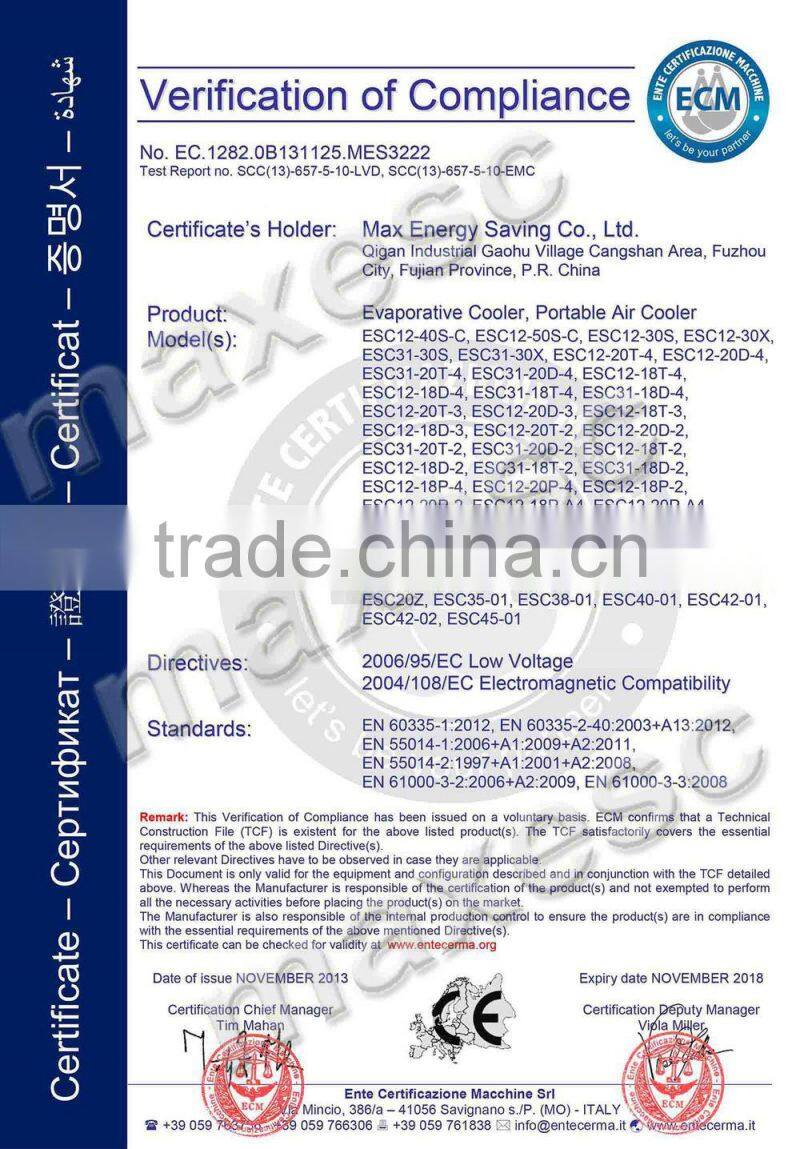

CE Certificate
