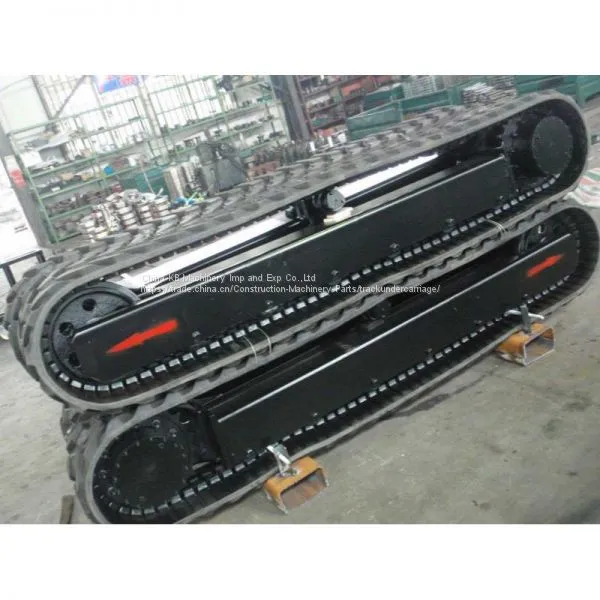

custom built rubber track undercarriage with slew drive

Name: custom built rubber track undercarriage with slew drive
Brand: kemercn@hotmail.com
Availability: InStock

FOB Price

USD $1600 - $6000 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Ningbo, China
Payment Terms:T/T L/C
Delivery Detail:30 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:

kemercn@hotmail.com

Place of Origin:

China

Model Number:

RT series rubber track undercarrige

Product Description

rubber track undercarriage rubber crawler undercarriage

rubber tracked undercarriage rubber track system

Rubber Track undercarriage manufacturer

Rubber track undercarriage, rubber track system, rubber track frame, rubber crawler undercarriage, rubber crawler chasis, rubbercrawler track undercarriage, drilling rig rubber track undercarriage, undercarriage assembly

We are an experienced company specialized in manufacturing steel track undercarriage and rubber track undercarriage. we make custom track systems for your mobility needs, and our track undercarriage can carry up to 50ton,and supporting dual-speed final drive and travel 0-7km/h at grades up to 60%.

Specification of track undercarriage:

1.Load capacity: 500kgs-50,000kgs

2.walking speed: 0-10km/hr

3.travel drive: dual speed final drive or single speed, Rexroth GFT gearbox

6.delivery time: 3-20 days

7.Custom built: we can design and manufacture track undercarriage according to your specificdimension requirements.

Application

Special design catered to customer specifications. With years of experience we can offer the track designflexibility, rapid response and solutions that are always highly effective.

For application on drilling rigs, excavators, crushers, cranes, aerial platform, etc. with high efficiency andadaption of vile working condition.

Customize Solution

We have many professional engineers devoting to design the track undercarriages to meet differentcustomers' requirements. With our years of experience, we can take your concept from prototype toproduction. We are committed to our goal of exceeding your expectations and requirements for quality,reliability, and on-time delivery.

Competitive Price

We can provide our track undercarriage with most competitive price, great quality and best service.

If you have any question or need any help, please feel free to contact with us. Our service team is ready toprovide best service for you.

Detail Specification

For the following dimension and specification, it is just for your reference, we can also design andmanufacture the RUBBER TRACK UNDERCARRIAGE based on your requirements.

RT-RUBBER TRACK UNDERCARRIAGE

MODEL	Dinamic capacity	Static capacity	Weight kg.	Press.Bar	oil flow L/min	Torque Nm to engine	Grad.	Speed km/h
RT-1500	1200	1500	330	270	17	2000	65%	1.7
RT-2500	2500	3000	380	220	35	4723	65%	2/3.2
RT-3500	3500	4000	650	220	35	4723	65%	2/3.5
RT-5000	5000	6000	900	220	55	8330	65%	2/3.7
RT-6000	6000	7000	1280	220	55	8330	65%	2/3.7
RT-8000	8000	9500	1550	300	82	11700	65%	2.8/4.7

MODEL	A Length	B Center Distance	C Height	D Total Width	E Width oftrack shoe	F Height of Cross beam	No. of roller
RT-1500	1420	1066	350	980	230	165	3+3
RT-2500	1850	1370	480	1220	250	245	4+4
RT-3500	1980	1511	500	1520	300	250	5+5
RT-5000	2500	1950	550	1800	350	265	6+6
RT-6000	2905	2355	550	1800	400	265	7+7
RT-8000	2950	2450	600	1800	400	310

Contact:

Welcome to contact us:

Contact Cathy

Email: kemercn@hotmail.com

Skype: kemercathy

Tel/whatsapp: 0086-134 8664 5746

FAQ

1. Are you the manufacturer or trader?

We are the manufacturer with more than 20 years experience engaged in designing and manufacturing of undercarriage.

2. How long is the delivery?

Usually it is 20 days for the production.

3. What's the warranty of your product?

We can offer you 12 months quality guarantee period after receipt of product.

4. Can you custom make the product?

Yes, all dimensions and specifications can be designed and made based on your requirements.

5. How to order?

To make sure the offered undercarriage is suitable for your application, please offer the following details:

1. Rubber or steel track undercarriage:

2. What is the payload of undercarriage:

Note: it is the weight of machine excluding the weight of undercarriage.

3. length of track undercarriage (mm):

4. width of each side of track undercarriage (mm):

5. height of track undercarriage (mm):

6. total width of track undercarriage (mm):
7. working flow rate per each side of undercarriage (L/min):
8. working pressure (MPa):

9. travelling speed (km/hr):

10. climbing capacity:
