Home > Products > Hammer Mill > Corn Maize Grain Powder Hammer Mill

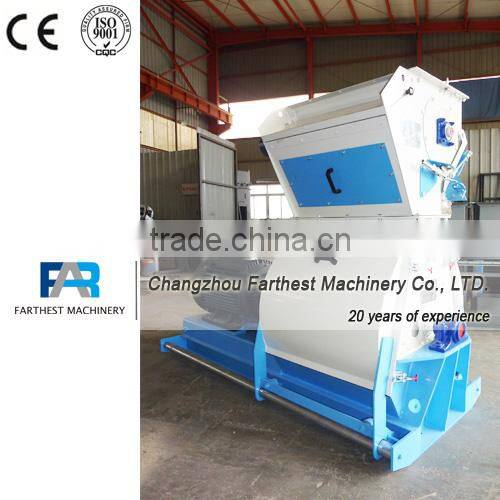

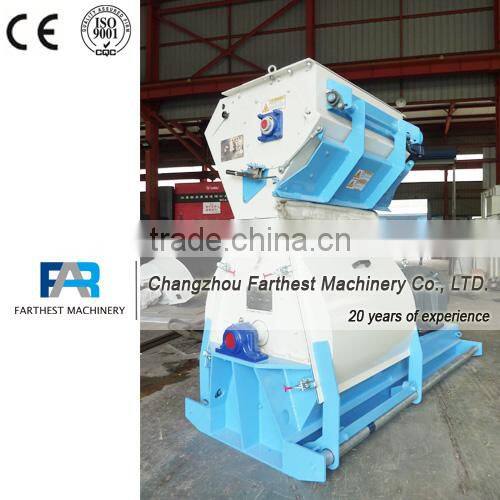

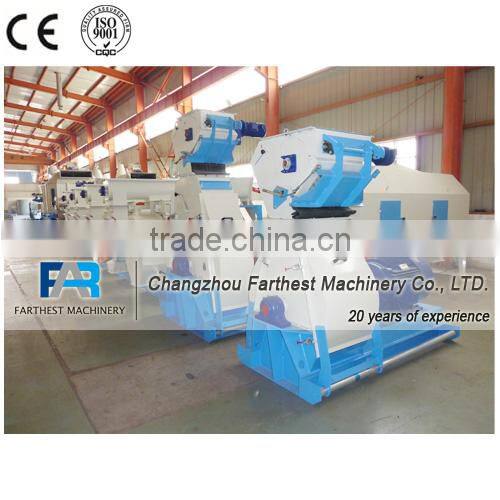

Corn Maize Grain Powder Hammer Mill

FOB Price

USD $2,000 - $20,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port Shanghai Port
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Place of Origin:	Jiangsu, China	Brand Name:	FAR
Model Number:	SFSP568 series	Type:	Mill Machine	Voltage:	380V
Power(W):	different motors available	Dimension(LWH):	Actual	Weight:	350 kg
Certification:	CE ISO	Warranty:	one year	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

We are manufacturing feed mill complete project,biomass processing complete project,Compound fertilizer processing. We can also provide Grinding and Pulverizing; Dosing and Mixing; Pelleting; Extruding and Expanding; Cooling, Crumbling and Sieving; Stabilizing, Drying, Coating and Bagging off; Compact feed mill; Cleaning, Magnets and Aspiration; Conveying and Other universal equipment.

Corn Maize Grain Powder Hammer Mill

Features

1. It is simple structure, safe, dependable, easy to mount and easy to operate, low vibration, high output;
2. It is widely used for grinding granular materials, such as corn, sorghum, wheat, soybean, etc;
3. Steel plate welded structure; motor and rotor are mounted on same base plate;
4. Pin coupling direct connection driving; all of all rotors pass an accurate dynamic balancing test;
5. Ensure the safe operation door is locked when the machine is in operation

6. The inlet is on top of machine for ease of operation.

Main Technical Parameters

Model Parameters	Dia. Of Rotor (mm)	Width Of Grinding Chamber (mm)	Speed Of Rotor (rpm)	Power (kw)	Output (t/h)
SFSP568-Ⅰ	560	360	2940	22	2-3
SFSP568-Ⅰ	560	360	2940	30	3-5
SFSP568-Ⅱ	560	400	2940	37	4-6

Re: The above indexes are those when meeting the following conditions: raw material: corn, moisture content not higher than 14%, density not lower than 0.72t/m³, screen: hole diameter 3mm, hole-opening rate not less than 33%.

Details

About Our Factory

Questions

1. Q: Are you a trading company or a manufacturer?

A: We are a manufacturer, which has almost 20 years of experience in this industry.

2. Q: How can I get to your company?

A: You can get a flight to Nanjing Airport. We are just about 40-50mins away from Nanjing Airport.

3. Q: How long is your guarantee?

A: One Year (Calculated from the equipment arrives the customer’s side.). After this period we will definitely still support you when needed. You will be welcome to contact us with any problem might experience.

4. Q: Will you send engineers to install the plant?

A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.

Certification

Exported Equipment

FAR products have been exported to South Korea, Iraq, Denmark, Egypt, South Africa, Vietnam etc. The customers have been pleased with the products whatever on design or quality. We also get many new clients introduced by them. Our goal is to make each initial transaction into a continually beneficial and lasting business relationship.

Exhibition

Last year, we attended two big exhibitions, one was VIV China 2012, held in Beijing during 23^rd- 25^thSep, 2012; another was The Tenth (2012)China Animal Husbandry Expo, held in Nanjing. We have completed several successful operations from the two exhibitions, and more importantly our company and products are well known by more customers. This year, we hope we could get create more mutually beneficial business relationships in The Eleventh(2013) China Animal Husbandry Expo, which will be held in Wuhan during 18^th-20^th May, 2013. Our tear circle hammer mill,pellet mill, mixer, crumbler will be showed on this exhibition.

About US

CHANGZHOU FARTHEST MACHINERY CO., LTD is a comprehensive manufacturer of feed machinery, bio-energy machinery, organic fertilizer machinery and turn key projects. We are dedicated to service for domestic feed industry customers. FAR has worked in this field for almost 20 years and wins an outstanding reputation in feed machinery. Clients from home and abroad give a high praise to FAR products.
