Home > Products > off-grid solar systems > 5KW hot sell solar power system
5KW hot sell solar power system
- 20 Set / Sets per Month
- Fob Ningbo/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Place of Origin | Zhejiang, China | Brand Name | Inyan | |
Model Number | ISS5000Z | Specification | Normal | |
Application | Home | Output Voltage (V) | 220v/230v | |
Load Power (W) | 5KW | Solar Power (W) | 3KW | |
Work Time (h) | Over 8 hours |
Product Description

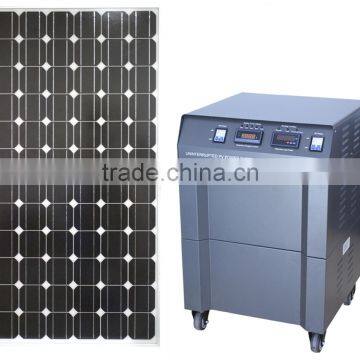

Uninterrupted Off-grid Solar Power system 5KW

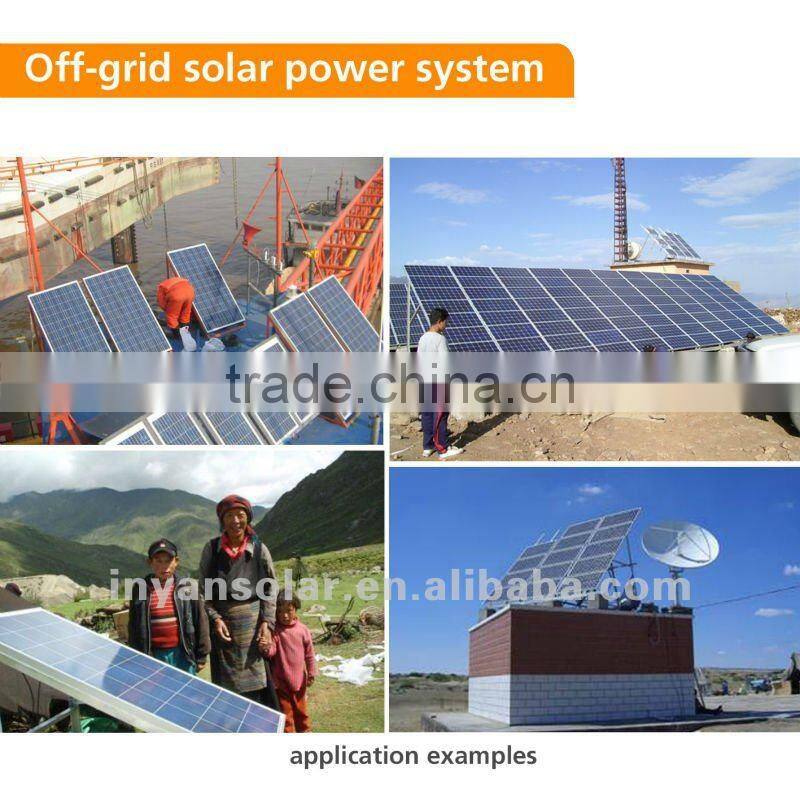

5KW solar power system is an all-in-one machine which includes solar inverter, solar battery, charge controller, battery cabinet and solar modules. The system can be applied to areas without grid-power network, villas, remote villages, island, no power supply areas and backup power for general families. Pure sine wave AC output 220V/230V, 50Hz/60Hz.
Product Features:( solar home system )
>> All-in-one high integrated off-grid solar system
>> Pure sine wave output
>> Battery power indicate

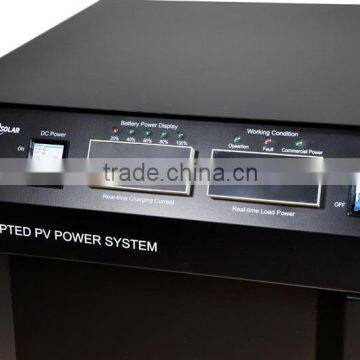

>> Digital indication for PV charging & load power
>> Automatic switch between PV generation and utility power
>> PV power generation always preferred
>> High-efficiency, easy-installation and reliable performance
>> Economic and environment-friendly
home solar electricity generation system
Specifications:
Model | ISS1500Z | ISS3000Z | ISS5000Z | |
AC Output Power | 1500W | 3000W | 5000W | |
Output Waveform | Pure Sine Wave | |||
Precision of Output Voltage | 220V±5% or 110V±5% | |||
Precision of Output Frequency | 50Hz±5Hz or 60Hz±5Hz | |||
Power factor | 0.99 | |||
Overload ability | 120%,30 seconds | |||
Over Voltage Protection | >30V | >58V | >58V | |
Low Voltage Protection | <20.6V | <40V | <40V | |
Peak power efficiency | >92% | >92% | >92% | |
Switching time between PV power and AC electricity | <10ms | |||
Battery Discharge Time (Rated Output Power) | 1.5 hours | |||
Solar Panel Charging Time | 3.5 hours effective sunlight | |||
Certificate | CE | |||
Operational Environment: | ||||
Operating Temperature Range | -10 ~ 55°C | |||
Relative Humidity | 0 ~ 90% | |||
Operating Altitude | 0 ~ 1200m | |||
Standard Configuration details: | ||||
No. | What’s included | ISS1500Z | ISS3000Z | ISS5000Z |
1 | Mainframe box | 1PC | 1PC | 1PC |
2 | Cell box | 1PC | 2PCS | 3PCS |
3 | Wheel | 4PCS (Dia. 3 inch---Mounting H110mm) | ||
4 | Inverter | 1500W | 3000W | 5000W |
5 | Controller | 24V 20A*1 | 48V 20A*2 | 48V 20A*3 |
6 | Photovoltaic Panel | 1000W | 2000W | 3000W |
|
| 26.2V 7.63A | 37.56V 9.01A | 37.56V 9.01A |
|
| 250W x 4 | 250W x 8 | 250W x 12 |
7 | Gel Battery | 24V 200Ah | 48V 200Ah | 48V 300Ah |
|
| 12V 100Ah x 4 | 12V 100Ah x 8 | 12V 100Ah x 12 |
Mechanical Data: | ||||
Mainframe box (mm/kg): | L630*W545*H165 / 19.5 | |||
Cell box(mm/kg): | L630*W545*H280 / 15.5 | |||
Assembled system box(mm/kg): | L630*W545*H555 / 35 | L630*W545*H835 / 50 | L630*W695*H1115 / 72 | |
Battery(mm/kg): | L331*W173*H219(mm) Total H224mm / 30kg |
Products guarantee as below:( solar home lighting system )
Solar panels: not less than 90% in 10 years and 80% in 25 years
Inverters and charge controllers: 2 years
Gel batteries: 1 year (about 350 cycles, lifetime 2~3 years)
Lead crystal batteries: 1 years (about 750 cycles, lifetime 5~6 years)
Pls feel free to let us know the following answer. Our sales team will give you a good solution.
1. Which country and city the solar system will be set in?
2. What's power of the electric appliances and their working hour per day?
3. What output voltage you need?
4. Please check your electricity bill and tell us what power consumption you take per day?
5. If you have any requirement on the system accessories, please tell us in detail.
