submersible electric motor,ac engine with CE,3inch diameter

submersible pump as one kind of water pump are widely used in domestic and
industry,where there is water,there is our water pump
It can be applied to many fields , especially for industry, mining ,
agriculture, construction, breeding and families(water supply for high
buildings).

Applications
The submersible pumps are designed for delivery of water in househole confitions
from wells and boreholes with inner diameter more than 75mm,as well as for
delivery of water from open water bodies(rivers,lakes) and reserviors.4INCH
series electric pumps may be operated in the automatic water-supply systems,be
used for watering of gardens and vegetable gardens

Operating conditions
pumped water temperature1-45
ambient air temperature 1-55
pumped water mineralization:not more than 1500g/M3
combustible,chemically active liquids

Motor
asynchronous single-phase submersible capacitor electric motor/three phase
electric motor
frequency:50Hz
voltage:200-240V ,380-415V
insulation class:F
protection degree:IP68
operation model:continuous
Other Voltage or Frequency 60Hz are available

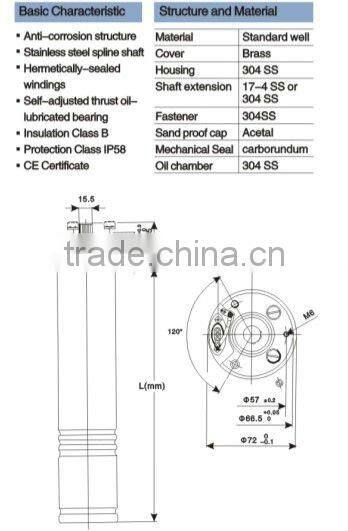

Material
pump housing:stainless steel
impeller:Nory1
diffuser:Nory1
Shaft:stainless steel/45# steel
Seal:graphite&ceramic
