Home > Products > Plastic Machinery > china pp rope making machines

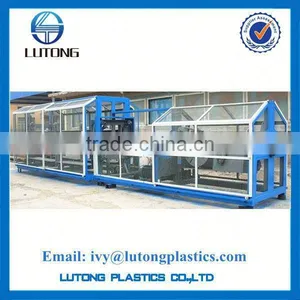

china pp rope making machines

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Product Type:	Plastic Rope	Place of Origin:	Shandong, China
Brand Name:	lutong	Model Number:	M-type	Voltage:	220v/380v
Power(W):	5.5kw	Weight:	2500kgs	Certification:	BV
Warranty:	One year	After-sales Service Provided:	Engineers available to service machinery overseas

rope making machinery
rope making with strand making as a union.
3/4 strands are available
make rope with dia.20-30mm

pp rope making machines rope making machine

This machine is suitable for making ropes with Nylon, PE, PP, etc. yarns or strands

It consists of rope making device and strand making device

can produce rope with Dia.4-28mm after continuous operation once

omit extra working steps from strand making to rope making, thereby the production efficiency is greatly improved.

There is no waste yarn or scrap coming out during the production process, so the ropes are more attractive and durable.

Technical data	Revolution of principal axis (r/min)	Dia of rope(mm)	Automatic Lining machine	Twist (t/m)	Direction of twist	Motor power	Dimension (m)	Output (t/day)
M77	320	20 -26	GP40	16-62	→	18KW-4	12* 2.3* 2.1	1.5-2
M66	350	16 -22	GP40	16-62	→	15KW-4	9* 2.1* 2.1	0.9-1.5
M55	420	10 -16	GP30	16-62	→	7.5KW-4	6.86* 2 * 2.1	0.8-1.1
M44	620	5 -8		16-62	→	5.5KW-4	5* 1.9* 1.8	0.3-0.6
M33	900	3 -6		26-82	→	3KW-4	4* 1.9* 1.8	0.2-0.4

Payment Terms

1) Methods of payment: T/T, L/C at sight;

2) 30% T/T for deposit and the balance cleared before shipment

3) For payment, the extra charge should be paid at the buyer's side

About us

1). With more than 20 years' experience in rope/ twine' manufacture

2). High quality and reasonable price

3). Prompt delivery and excellent service

double twisted

Welcome to contact us and get more informations!

Laizhou Lutong Plastics Co., Ltd.: Contact nameLucien Yuan
Chat Now; Phone86-535-2416658; AddressChengguo Industrial Park, Laizhou
